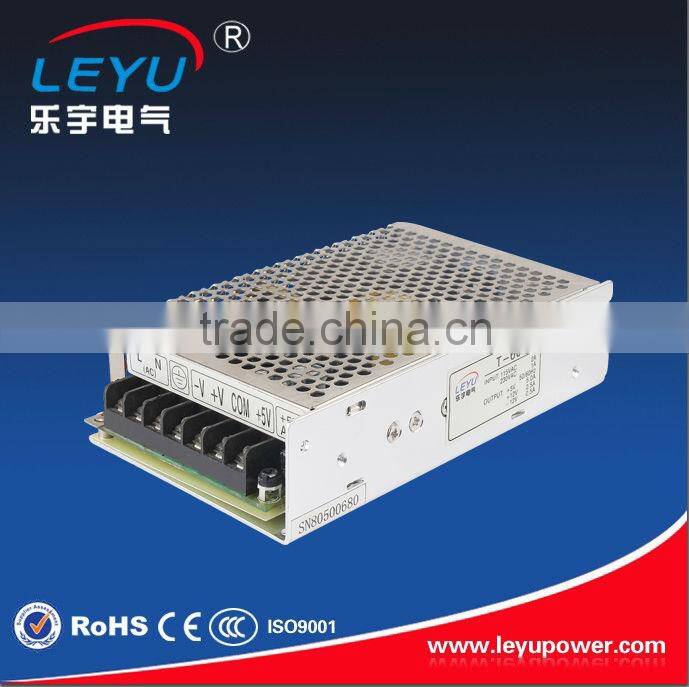

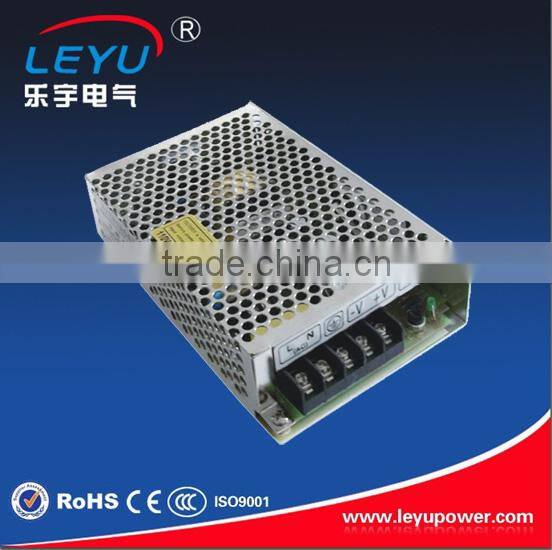

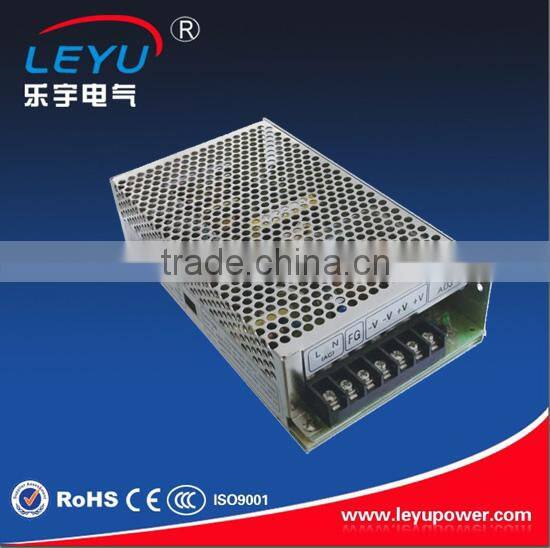

Factory Manufacture 120w Triple Output Power Supply CE RoHS Approved T-120 Switch Mode Power Supply

SPECIFICATIONS

OUTPUT

Model

T-120A

T-120B

T-120C

T-120D

Output number

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

DC Voltage

5V

12V

-5V

5V

12V

-12V

5V

15V

-15V

5V

12V

24V

Rated Current

11A

5A

1A

11A

4.5A

1A

10A

2.5A

1A

2A

7A

1A

Current Range

2-11A

0.5-5A

0.2-1A

2-11A

0.5-4.5A

0.2-1A

2-10A

0.5-2.5A

0.2-1A

1-2A

0.5-7A

0.2-1A

Rated Power

120W

121W

118W

118W

Ripple & Noise

80mVp-p

120mVp-p

80mVp-p

80mVp-p

120mVp-p

120mVp-p

80mVp-p

150mVp-p

150mVp-p

80mVp-p

120mVp-p

180mVp-p

Voltage Adj. Range

CH1;+10,-5%

CH1:+10,-5%

CH1:+10,-5%

CH2:+10,-5%

Voltage Tolerance

±2%

±5%

±5%

±2%

±5%

±5%

±2%

±5%

±5%

±2%

±6%

±6%

Inlet Stability

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±1%

Load Stability

±2%

±6%

±6%

±2%

±6%

±6%

±2%

±6%

±6%

±2%

±6%

±6%

Setup, Rise, Hold Up Time

200ms,50ms,20ms at full load

INPUT

Voltage Range

85~132VAC/176~264VAC selected by switch   47~63Hz; 240~370VDC

AC Current

2.5A/115V   1.25A/230A

Efficiency

77%

77%

76%

80%

Inrush Current

Cold start 30A/115V   60A/230V

Leakage Current

<3.5mA/240VAC

PROTECTION

Over Load

105%~150%

Protection type: Fold back: current limiting; reset: auto recovery

ENVIRONMENT

Working Temp., Humidity

-10℃~+60℃(Refer to output derating curve), 20%~90%RH

Storage Temp., Humidity

-20℃~+85℃,10%~95%RH

Temp. Coefficient

±0.03%/℃(0-50℃) ON+5V

Vibration

10-500Hz,2G 10min,/1cycle,Period for60min,Each axes

SAFETY

Withstand Voltage

I/P-O/P: 1.5KVAC   I/P-FG: 1.5KVAC   O/P-FG: 0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

STANDARD

Safety Standard

Meet UL 1012 requirement(Not apply for the mark)

EMC Standard

…………

OTHERS

Dimension

199*110*50mm(L*W*H)

Weight

0.9Kg

NOTE

1.The testing condition for the paramenter above is :230VAC input,rated load,25℃70% RH.Humidity.

2.Error.include the setting error,line stability and load stability.(Note:5).

3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.

4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.

5.Load stability test:the load is from 0% to 100%.

6.Total output canbe maximum Current,total load can not exceed the maximum output power
