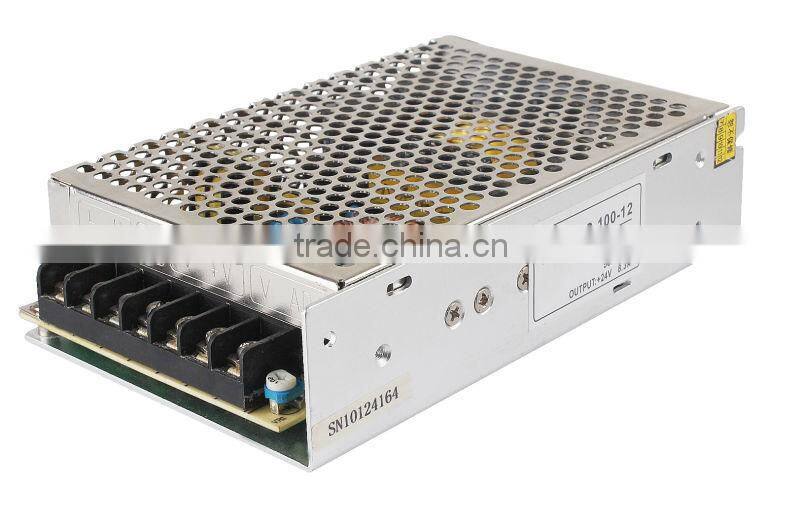

High Efficiency AC DC Output for LED Equipment 100W 220v 24v Power Supply NES-100-24 ac dc Power Supply

SPECIFICATION

OUTPUT

Model

NES-100-5

NES-100-7.5

NES-100-9

NES-100-12

NES-100-15

NES-100-24

NES-100-48

DC Voltage

5V

7.5V

9V

12V

15V

24V

48V

Rated Current

20A

13.6A

11.2A

8.5A

7A

4.5A

2.3A

Current Range

0~20A

0~13.6A

0~11.2A

0~8.5A

0~7A

0~4.5A

0~2.3A

Rated Power

100W

102W

100.8W

102W

105W

108W

110.4W

Ripple & Noise

80mVp-p

120mVp-p

120mVp-p

120mVp-p

120mVp-p

120mVp-p

150mVp-p

Voltage Adj. Range

4.75 ~

5.5V

7.13 ~ 8.3V

8.55 ~ 9.9V

11.4 ~ 13.2V

14.25 ~ 16.5V

22.8 ~ 26.4V

45.6 ~ 52.8V

Voltage Tolerance

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

Line Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load Regulation

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Setup, Rise Time

500ms, 20ms/230VAC   500ms, 20ms/115VAC at full load

Hold Up Time

30ms/230VAC   25ms/115VAC at full load

INPUT

Voltage Range

85 ~ 132VAC / 176 ~ 264VAC selected by switch   248 ~ 373VDC

Frequency Range

47 ~ 63Hz

Efficiency

80%

81%

81%

83%

84%

86%

86%

AC Current

2A/115VAC   1.2A/230VAC

Inrush Current

Cold Start 36A

Leakage Current

<2mA / 240VAC

PROTECTION

Over Load

110 ~ 150% rated output power

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Voltage

5.75 ~ 6.75V

8.6 ~ 10.1V

10.4 ~ 12.2V

13.8 ~ 16.2V

17.25 ~ 20.25V

27.6 ~ 32.4V

55.2 ~ 64.8V

Protection type: Hiccup mode, recovers automatically after fault condition is removed

ENVIRONMENT

Working Temp.

-20 ~ +60℃ (Refer to “Derating Curve”)

Working Humidity

20 ~ 90% RH non-condensing

Storage Temp., Humidity

-40 ~ +85℃, 10 ~ 95% RH

Temp. Coefficient

±0.03%/℃ (0 ~ 50℃)

Vibration

10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

Safety Standards

UL60950-1, CB(IEC60950-1),CCC GB4943 approved

Withstand Voltage

I/P-O/P:3KVAC   I/P-FG:1.5KVAC   O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH

EMC Emission

Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3

EMC Immunity

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-1, light industry level, criteria A

OTHERS

Dimension

159*97*38mm (L*W*H)

Weight

0.55Kg

Packing

30pcs/17.5Kg/0.97CUFT
