New China Products P6 Outdoor Full Color Module LED Display for Advertising
- shenzhen
- T/T Credit Card PayPal
You May Like
-
Outdoor Waterproof Sxey Xxx Video Led Large Screen DIP P16 Outdoor Full Color Led Display Most Popular
-
Large Stadium Outdoor P16 Electronic Advertising Led Display Screen
-
P8 SMD Full Color High Resolution Big tv Utdoor Led Advertising Giant Screen
-
Express Small Size P10 Outdoor Electronic Advertising Screen
-
P10 DIP546 Single Color Big Outdoor Advertising Lcd Digital Screen Display
-
DIP546 Single Color Lcd Advertising Window Led Screen
Product Details
| Place of Origin | Guangdong, China | Brand Name | LCCL | |
| Model Number | P6 | Usage | Outdoor | |
| Tube Chip Color | Full Color | Display Function | Video | |
| Pixels | Other, 6mm | Screen Dimension | Customized Size |
cartons, wooden case or flight case
Product Description

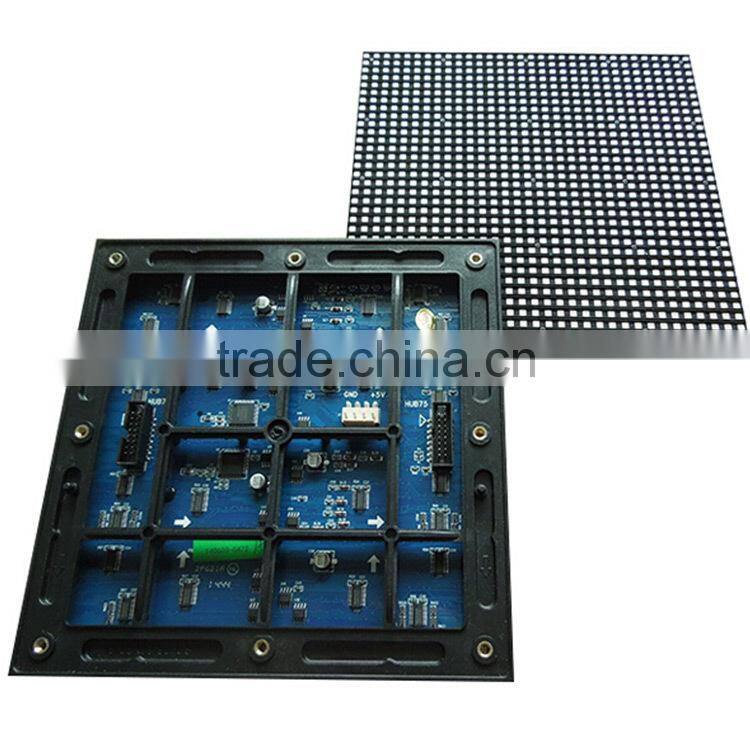

New china products P6 Outdoor full color module LED display for advertising
| Item | Parameter | |||
| Pixel Pitch | 6mm | |||
| LED Encapsulation | SMD3535/1R1G1B | |||
| LED Chips | Epistar | |||
| Module resolution | 32dots*32dots | |||
| Module size(mm*mm) | 192mm*192mm | |||
| Pixel density | 27777dots/m² | |||
| Weight | 0.56KG | |||
| Drive chip | 2026 | |||
| Drive Method: | 1/8scanning | |||
| Brand of power supply | CL 5V~40A | |||
| Gray Scale | Recommended 256 level | |||
| The best viewing angle | Horizontal:140 Vertical:90 | |||
| Max Power Consumption | 1000W/ m² | |||
| Control Mode | Video frequency synchronization | |||
| Optimal Viewing Distance | ≥6m | |||
| Brightness | ≥7000cd/m² | |||
| Blind Spot Rate | <0.0001 | |||
| Brightness Control | 0-255 Grade | |||
| Contrast | 100 levels adjustable | |||
| Earth Leakage Current | <2mA | |||
| MTBF | >5000Hours | |||
| Lifespan | >100000Hours | |||
| Power Supply Mode | AC220V/50HZ or AC110V/60HZ | |||
| Protection Level | IP65 | |||
| Humidity | 0%~90% | |||
| Operating System | Windows98/me/2000/NT/XP | |||
| Operating temperture | Operation:-30°C~+60°C | |||
Features:
1.High and adjustable LED brightness can meet the demands of the changing requirement of customer in different environments.
2. No mosaic display due to excellent flatness and nice uniformity of light-emitting
3.Wide viewing angle and the horizontal angle can reach 120°m. The images display effect will not Change largely in the range.
4. Virtual pixel display screen can be adopted for outdoor displays to increase the resolution up to four times of real pixel, making the images softer and vivider
5. LED Single-lamp maintenance with low cost.
6. Good heat dissipation capability because of the unique design of vent fan.
7. Environmental-friendly and energy-saving.
Company Profile
Shenzhen LCCL Opto-electronic Science&Technology Co.,Ltd, founded in 2006, with the area around 2000 square meters and more than 100 staff. Our company manufactures LED Displays with well-equipped testing equipment. Our products are extensively used in Advertising LED, LED signs, Sport LED Displays, moving LED, rental LED Displays, indoor decoration & advertising and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. Welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
