OEM suppliers P10 waterproof shopping mall outdoor advertising led video wall
- 100000 Square Meter / Square Meters per Month
- Shenzhen
- T/T Credit Card
You May Like
-
High quality express P10 outdoor bus advertising screen
-
P10 320*160mm taxi advertising screen commercial led screen outdoor
-
DIP546 P10 waterproof vending machine 3g lcd advertising screen
-
Outdoor P10 waterproof 3g advertising led display video digitizer screen
-
DIP546 P10 outdoor floor stand LCD taxi headrest advertising display screen
-
Waterproof single color elevator advertising screen led display
Product Details
| Place of Origin | Guangdong, China | Brand Name | LCCL | |
| Model Number | P10 | Usage | Other, Outdoor, Outdoor | |
| Tube Chip Color | Other, Blue,red,yellow,green, Single color | Display Function | Video | |
| Pixels | Other, 10mm, 10mm | Screen Dimension | 320mm*160mm |
shopping mall advertising touch screen
wooden box or airfreight case According to customers' requests .
Product Description
HD image pitch 4mm indoor led display
Illuminating engineering
LED light art is successfully applied to LED illumination. That is, different parameters like dot pitch,luminance, angle and quantity of LED are randomly arranged and designed so that LED illumination has hundreds of colors and patterns through control of system and current to realize infinite creative idea of LED light art. Though good advertising effectiveness by huge display screens at hotels, commercial halls and international famous enterprise mansions and etc, employers’ uncommonstrength and taste are shown. Representative works: Administrative Committee Building of Zhuankou High-tech Development Zone, Pengcheng International Mansion and etc.

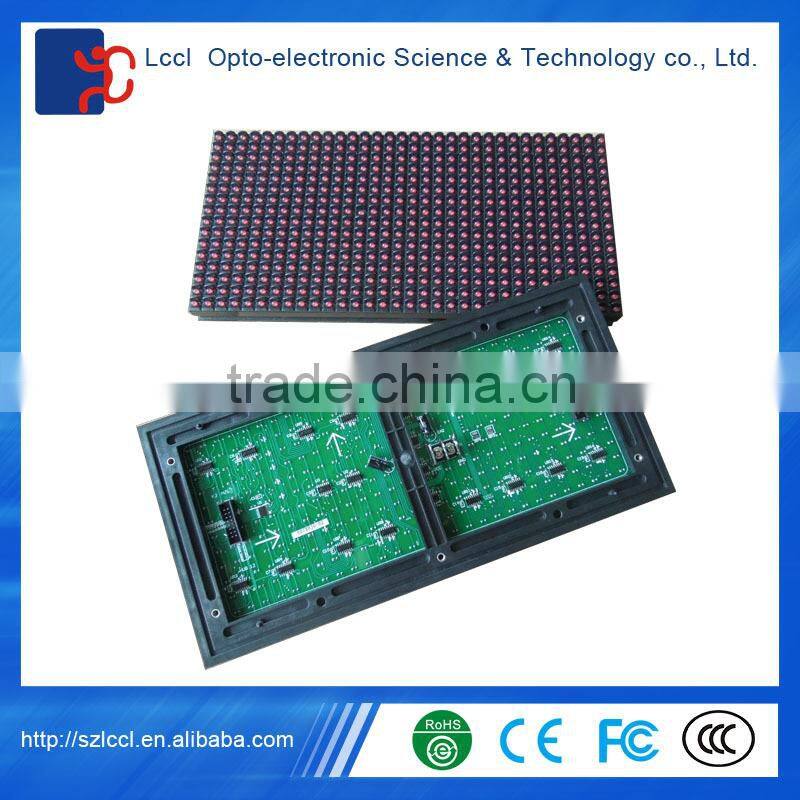

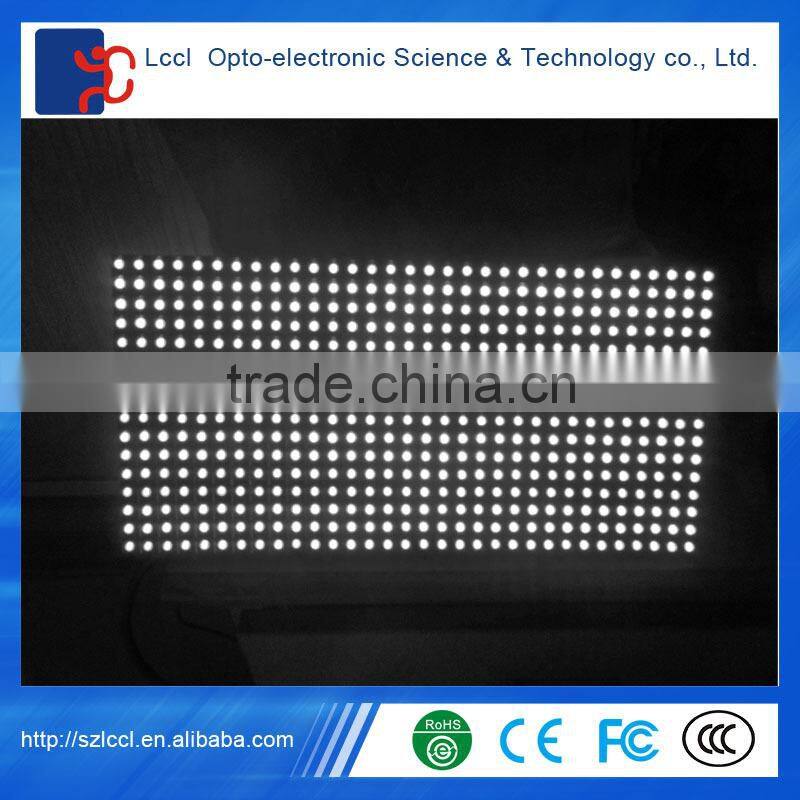

| P10 DIP OUTDOOR WATERPROOF SINGLE COLOR LED MODULE CATALOGUE | ||||
| Item | Parameter | |||
| Pixel Pitch | 10mm | |||
| LED Encapsulation | DIP546/1R/1Y/1G/1B/1W | |||
| LED Chips | Epistar | |||
| Module resolution | 32dots*16dots | |||
| Module size(mm*mm) | 320mm*160mm | |||
| Pixel density | 10000dots/m² | |||
| Weight | 0.6KG | |||
| Drive chip | 2026 | |||
| Drive Method: | 1/4scanning | |||
| Brand of power supply | CL 5V~40A | |||
| Gray Scale | Recommended 256 level | |||
| The best viewing angle | Horizontal:140 Vertical:90 | |||
| Max Power Consumption | 240W/ m² | |||
| Control Mode | Video frequency synchronization | |||
| Optimal Viewing Distance | ≥10m | |||
| Brightness | ≥2000cd/m² | |||
| Blind Spot Rate | <0.0001 | |||
| Brightness Control | 0-255 Grade | |||
| Contrast | 100 levels adjustable | |||
| Earth Leakage Current | <2mA | |||
| MTBF | >5000Hours | |||
| Lifespan | >100000Hours | |||
| Power Supply Mode | AC220V/50HZ or AC110V/60HZ | |||
| Protection Level | IP65 | |||
| Humidity | 0%~90% | |||
| Operating System | Windows98/me/2000/NT/XP | |||
| Operating temperture | Operation:-30°C~+60°C | |||
LCCL is a leading supplier of full color display screen solution throughout the world with more than2000M2 of area and more than 100 staff, and furthermore,imports advanced production equipment from other countries. With production personel of high quality, it devotes itself to providing customers with innovative products, service and solutions that also meet their demands. Value and servicecreated for thecustomers keep growing.
Corporate culture
Prospect: To persistently strive for manufacturing excellent international LED display devices
Concept: Product quality represents our character; technology serves users.
Shipping Detail
- Delivery time: about 10 - 20days after receive T/T 100% payment.
- The price is factoary price in USD,not include the shipping fees.
- The price is valid within 15 days.
Company Profile
Shenzhen LCCL Opto-electronic Science&Technology Co.,Ltd, founded in 2006, with the area around 2000 square meters and more than 100 staff. Our company manufactures LED Displays with well-equipped testing equipment. Our products are extensively used in Advertising LED, LED signs, Sport LED Displays, moving LED, rental LED Displays, indoor decoration & advertising and other industries. Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs. Welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
