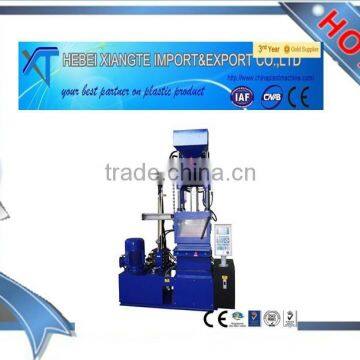

XT-VX60 micro injection molding machine in India
- 500 Set / Sets per Month
- Ningbo China
- T/T Credit Card PayPal
You May Like
-
2014 new XTV-60 Servo Motor plastic injection moulding machine
-
60T Plastic Vertical Plug Making Machine/ Injection Moulding Machine
-
60T Vertical Rotary platen Injection Molding Machine
-
Vertical plastic injection moulding machine XT-V120
-
3 moulds 210t vertical injection moulding machine
-
Servo automatic vertical injection moulding machine 120t
Product Details
Condition | New | Type | Injection Blow Molding | |
Style | Vertical | Brand Name | Xiangte | |
Model Number | XT-VX60 | Place of Origin | Hebei, China | |
Plastic Type | Thermoplastic | Automatic | No | |
Injection Weight | 72g | Injection Rate | 68 | |
Clamping Force | 550KN | Power(W) | 9.5kw | |
Certification | ISO&CE | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
high qualitysmall plastic injection machine
ISO&CE certificate
factory price
Plastic material:PP, PC, PS, PE, PU, PVC ect
XT-VX60 micro injection molding machine in India
Main features of the Machines
1. Screw of big length to diameter ratio, uniform plastication and high plasticizing capability.
2. Multi step adjustment of injection speed or pressure.
3. Back pressure control of molten plastic.
4. Double toggle mold closing system with a large force magnification ratio and a large stroke ratio.
5. Very good speed characteristic of high speed mold closing and low pressure mold protection.
6. Various kinds of hydraulic ejectors.
7. Double proportional, load sensitive hydraulic circuit.
8. For big sizes of machines there are several oil pumps in a group, use proportional valve to compensate the difference of pressure or flow between pumps.
9. Triple interlock of mechanic, electric and hydraulic devices.
10. Hydraulic knockout core device and rotary mold-parting from the work piece device.
Main technical datas of the plastic injection machine
Technical Parameters XTVX-60 | ||
Injection Device |
|
|
| UNIT | DATA |
SCREW MODEL |
| STANDARD |
SCREW DIAMETER | MM | 32 |
INJECTION PRESSURE | MPA | 120 |
THEORETICAL SHOT VOLUME | CM³ | 90 |
SHOT WEIGHT(PS) | G | 72 |
INJECTION RATE(PS) | G/S | 68 |
SCREW SPED | R/PM | 0-200 |
Clamping Device |
|
|
CLAMPING MODEL |
| INVOLUTION |
CLAMPING FORCE | KN | 550 |
MAX. PLATE STROKE | MM | 200 |
MOULD THICKNESS | MM | 100-300 |
SPACE BETWEEN TIE-BARS(HxV) | MM | 308x205 |
MOULD PLATE SIZE(HxV) | MM | 450x345 |
EJECTOR FORCE/STROKE | KN/MM | 25/60 |
Others |
|
|
MOTOR POWER | KW | 5.5 |
HEATING POWER | KW | 4 |
MACHINE WEIGHT | TON | 1.2 |
MACHINE SIZE(LxWxH) | M | 1.43x0.82x2.4 |
What our machine can make?
The plastic injection machine can make kinds of plastic products in our daily life,such as bottles,baskets,plugs,buckets,moile shells,spoons,bowls and so on.It is also used to car making,
medical treatment,toys ,appliance shell and other field.
We use vacuum packaging machine first,then the wooden packing.If you have special package demands,we also can meet your requests.
1)We provide 6 months machine warranty for good running working order.
2) We dis-assemble and re-assemble machine.
3) We clean the hydraulic tank, oil cooler and filter.
4)We check and repair Hydraulic pump.
5)We check and replace defective toggle with new one.
6)We check Clamping Cylinder pressure in good working order.
7) We replace defective hydraulic parts.
8)We inspect Screw & Barrel, to ensure free from injection back-flow.
9)Parts will be replaced if they do not meet the specific tolerances.
10)We check Control Cabinet completely and replace defective parts.
11) We replace oil seals and rings with leakage.
12)We replace defective ball-bearing of electric motor.
13)We test-run machines for at least 24 hours.
14)Machine is re-painted to look new.
Hebei Xiangte Imp.& Exp. Co.,ltd is a exclusive sales agent of Hebei Xiangte Plastic Machinery Co.,ltd. Established in 1999, Hebei Xiangte Plastic Machinery Co.,ltd is specialized in the research, manufacturing, sales and service of various plastic molding machines. With many years experience of professional techniques and sales network, we can provide customers with high-tech, high-precise and high -speed injection molding machines. We have a high tech after-sale team which is responsible for the installation and maintenance of your machines. Technician training is available if customers need.
"Professional, remarkable quality, sincerely service" is our pursuance, we are so pleased to provide both superior products and perfect service for customers all over the world.
Following is the essential information of mold, for your reference.
Name | Reliable and durable pipe fitting mold |
Mould material | 45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc. |
Mould base | LKM, HASCO etc |
Cavity | Single/multi |
Runner | Hot/cold |
Design software | UG, PROE, CAD, CAXA etc. |
Plastic material | PP, PC, PS, PE, PU, PVC, ABS, PMMA etc. |
Mould life | 300,000-3,000,000 shots |
Delivery time | 15-60days |
Specification | Depends on customer's requirements. |
We not only provide the high quality service, but also provide a convenient after-sales service.
The method of our service is: Engineers available to service machinery overseas. Make sure
you do not have trouble after buying our machines.
Once choose our machine, lifelong free from trouble!
