Home > Products > Vertical plastic molding machines > CE certificate XT-VX 100small plastic injection molding machine

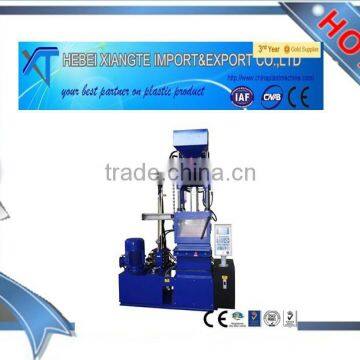

CE certificate XT-VX 100small plastic injection molding machine

FOB Price

US$ 5,000 - 10,000 / Set

1 Set(Min. Order)

Port Ningbo China
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Injection Blow Molding
Style	Vertical	Brand Name	Xiangte
Model Number	XT-VX100	Place of Origin	Hebei, China
Plastic Type	Thermoplastic	Automatic	Yes
Injection Weight	145g	Injection Rate	93G/S
Clamping Force	800KN	Certification	ISO&CE
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

Plastic material:PP, PC, PS, PE, PU, PVC, ABS, PMMA etc.
Name:plastic injection machine
High quality
factory price
ISO&CE

CE certificate XT-VX 100small plastic injection molding machine

Vertical Injection Moulding Machine Features:

1. Strong clamping force, Small extrusion quantities, Faster extrusion rates, Big mold vacuum.

2. Advanced LCD Monitor TECHMATION computer system, easy to maintain and operate the machine.

3.Wide application in various plastic products such as Power Cord Plug, Electronic Parts, Auto Parts, Insertion Molding and so on..

4. Custom-design is workable for Parts of Machines.

Technical Parameters XTVX-125
Injection Device
	UNIT	DATA
SCREW MODEL		STANDARD
SCREW DIAMETER	MM	40
INJECTION PRESSURE	Mpa	122
THEORETICAL SHOT VOLUME	CM³	175
SHOT WEIGHT(PS)	G	145
INJECTION RATE(PS)	G/S	93
SCREW SPED	R/PM	0-180
Clamping Device
CLAMPING MODEL		INVOLUTION DOUBLE TOGGLE
CLAMPING FORCE	KN	800
MAX. PLATE STROKE	MM	270
MOULD THICKNESS	MM	100-330
SPACE BETWEEN TIE-BARS(HxV)	MM	364x244
MOULD PLATE SIZE(HxV)	MM	525x405
EJECTOR FORCE/STROKE	KN/MM	25/70
Others
MOTOR POWER	KW	7.5
HEATING POWER	KW	6
MACHINE WEIGHT	TON	1.98
MACHINE SIZE(LxWxH)	M	1.6x0.83x2.62

application of plastic injection machine

Packaging & Shipping

Our machines use vacuum packing first, which makes it water-proof,moisture-proof and dust-proof.

Then packed in wooden cases to prevent vibration and damage.

Our Services

our service:

1)We provide 6 months machine warranty for good running working order.
2) We dis-assemble and re-assemble machine.
3) We clean the hydraulic tank, oil cooler and filter.
4)We check and repair Hydraulic pump.
5)We check and replace defective toggle with new one.
6)We check Clamping Cylinder pressure in good working order.
7) We replace defective hydraulic parts.
8)We inspect Screw & Barrel, to ensure free from injection back-flow.
9)Parts will be replaced if they do not meet the specific tolerances.
10)We check Control Cabinet completely and replace defective parts.
11) We replace oil seals and rings with leakage.
12)We replace defective ball-bearing of electric motor.
13)We test-run machines for at least 24 hours.
14)Machine is re-painted to look new.

Company Information

Hebei Xiangte Plastic Machinery Co.,ltd is specialized in the research, manufacturing, sales and service of various plastic molding machines. With many years experience of professional techniques and sales network, we can provide customers with high-tech, high-precise and high -speed injection molding machines. We have a high tech after-sale team which is responsible for the installation and maintenance of your machines. Technician training is available if customers need. Once choose our machine, lifelong free from trouble!

FAQ

Following is the essential information of mold, for your reference.

Name	Reliable and durable pipe fitting mold
Mould material	45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc.
Mould base	LKM, HASCO etc
Cavity	Single/multi
Runner	Hot/cold
Design software	UG, PROE, CAD, CAXA etc.
Plastic material	PP, PC, PS, PE, PU, PVC, ABS, PMMA etc.
Mould life	300,000-3,000,000 shots
Delivery time	15-60days
Specification	Depends on customer's requirements.
