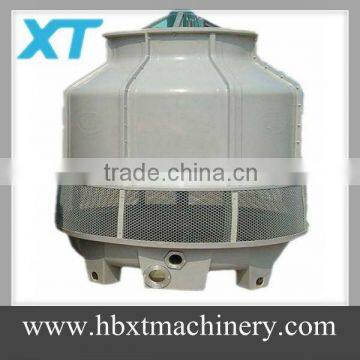

Round Water Cooling Tower

FOB Price

USD $2,000 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 200 Set / Sets per Month
Port Ningbo .China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Cooling Type	Cross Flow	Material	Metal
Place of Origin	Hebei, China	Brand Name	XIANGTE
Model Number	XT-T25	Weight	25T

Product Description

Specifications

1.10years experiences in cooling tower
2. with glass fibre:solid and durable
3. low noise
4.High efficient
5.Easy operat

1. Water Cooling Tower

Technical Parameters of Water Cooling Tower
Cooling Tower/Ton	High*Wide(cm)	Motor Power(kw)	Flow per hour/Ton
5T	128*85	0.18	5
6T	140*95	0.18	6
8T	160*95	0.18	8
10T	165*95	0.25	10
12T	170*100	0.25	12
15T	182*110	0.37	15
20T	190*128	0.75	20
25T	200*145	0.75	25
30T	205*150	0.75	30
40T	215*165	1.1	40
50T	230*190	1.5	50
60T	250*225	2.2	60
70T	253*225	2.2	70
80T	268*250	3	80
100T	282*290	3	100
125T	313*330	4	125
1500T	335*330	4	150

2.intro:

Cooling towers are heat removal devices used to transfer process waste heat to the atmosphere. Cooling towers may either use the evaporation of water to remove process heat and cool the working fluid to near the wet-bulb air temperature or in the case of closed circuit dry cooling towers rely solely on air to cool the working fluid to near the dry-bulb air temperature. Common applications include cooling the circulating water used in oil refineries, chemical plants, power stations and building cooling. The towers vary in size from small roof-top units to very large hyperboloid structures

(as in Image 1) that can be up to 200 metres tall and 100 metres in diameter, or rectangular structures

(as in Image 3) that can be over 40 metres tall and 80 metres long. Smaller towers are normally factory-built, while larger ones are constructed on site. They are often associated with nuclear power plants in popular culture, although cooling towers are constructed on many types of buildings.
