Home > Products > Accessaries for plastic molding machines > 2014 hot sale 5T cooling tower manufacturer

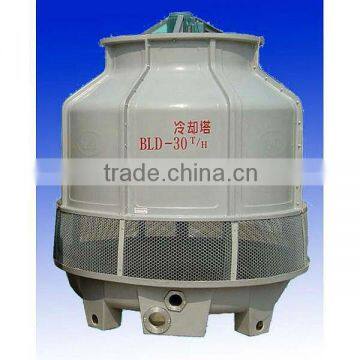

2014 hot sale 5T cooling tower manufacturer
- 100 Set / Sets per Month
- Ningbo .China
- T/T Credit Card
You May Like
-
Plastic Crusher Machine XT-PC800 Low Noise
-
PC180 Powerful Plastic Crusher/Shredder/Crushing Machine Price
-
CE High Performance Strong Waste Plastic Crusher
-
High Efficiency Thermal Controller For Blowing Machine
-
Good Quality counter flow cooling tower DBNL-50 in china
-
PC600 Powerful Plastic Crusher 450-800kg/h
Product Details
| Condition | New | Cooling Type | Cross Flow | |
| Material | FRP | Place of Origin | Hebei, China | |
| Brand Name | XIANGTE | Model Number | XT-T5 | |
| Voltage | 380 V | Power(W) | 0.18kw | |
| Dimension(L*W*H) | 1500*1500*1400mm | Weight | 113kg, 5T | |
| Certification | CE | Warranty | 1 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Cooling Tower(1).Motor Power:0.18
(2).Flow per hour:5
(3).High*Wide:128*85
(4).Certificate ISO9001:2000
high quality 20T cooling tower fill types
1. Water Cooling Tower
Technical Parameters of Water Cooling Tower | |||
Cooling Tower/Ton | High*Wide(cm) | Motor Power(kw) | Flow per hour/Ton |
5T | 128*85 | 0.18 | 5 |
6T | 140*95 | 0.18 | 6 |
8T | 160*95 | 0.18 | 8 |
10T | 165*95 | 0.25 | 10 |
12T | 170*100 | 0.25 | 12 |
15T | 182*110 | 0.37 | 15 |
20T | 190*128 | 0.75 | 20 |
25T | 200*145 | 0.75 | 25 |
30T | 205*150 | 0.75 | 30 |
40T | 215*165 | 1.1 | 40 |
50T | 230*190 | 1.5 | 50 |
60T | 250*225 | 2.2 | 60 |
70T | 253*225 | 2.2 | 70 |
80T | 268*250 | 3 | 80 |
100T | 282*290 | 3 | 100 |
125T | 313*330 | 4 | 125 |
1500T | 335*330 | 4 | 150 |
Cooling tower in our stock
2. product intro:
Cooling towers are heat removal devices used to transfer process waste heat to the atmosphere. Cooling towers may either use the evaporation of water to remove process heat and cool the working fluid to near the wet-bulb air temperature or in the case of closed circuit dry cooling towers rely solely on air to cool the working fluid to near the dry-bulb air temperature. Common applications include cooling the circulating water used in oil refineries, chemical plants, power stations and building cooling. The towers vary in size from small roof-top units to very large hyperboloid structures
(as in Image 1) that can be up to 200 metres tall and 100 metres in diameter, or rectangular structures
(as in Image 3) that can be over 40 metres tall and 80 metres long. Smaller towers are normally factory-built, while larger ones are constructed on site. They are often associated with nuclear power plants in popular culture, although cooling towers are constructed on many types of buildings.
other related auxiliary equipments for plastic injection machine
Our machines use vacuum packing first, which makes it water-proof, moisture-proof and dust-proof.
Then packed in wooden cases to prevent vibration and damage.
Why Choose Us
- Top technology of mould r&d, manufacturing, die steel, heat treatment
- Experienced professional engineers
- Advanced equipment
- high speed powerful crusher
- clamping machine
- Hopper dryer
- mould
- Most advanced CAD/CAM/CAE design system
1)We provide 6 months machine warranty for good running working order.
2) We dis-assemble and re-assemble machine.
3) We clean the hydraulic tank, oil cooler and filter.
4)We check and repair Hydraulic pump.
5)We check and replace defective toggle with new one.
6)We check Clamping Cylinder pressure in good working order.
7) We replace defective hydraulic parts.
8)We inspect Screw & Barrel, to ensure free from injection back-flow.
9)Parts will be replaced if they do not meet the specific tolerances.
10)We check Control Cabinet completely and replace defective parts.
11) We replace oil seals and rings with leakage.
12)We replace defective ball-bearing of electric motor.
13)We test-run machines for at least 24 hours.
14)Machine is re-painted to look new.
Hebei Xiangte Plastic Injection Machinery Co., Ltd. Located in Shijiazhuang City, Near Tianjin. It is specialized offer Injection molding machine, injection mould and related auxiliary equipment.
1. Injection molding machine range: Clamping force from 50tons to1000tons, injection weight from 64g to 14000g.Except the normal machine, we also have special machine for PVC, PET, Variable Pump, clear double color, full Hydraulic
2. Injection mould: Home appliance, PVC pipe fitting, PPR fitting, Pallet, Crate, Pet perform, bucket, 5 Gallon bottle, blow mould, chair, Syringe, plug, CAP, Lid mould
3. Auxiliary equipment: Hopper dryer, Auto-Loader, Mixer, Crusher, Chiller, Air compressor, Air tank, filter, Air dryer etc.
"Professional, remarkable quality, sincerely service" is our pursuance, we are so pleased to provide both superior products and perfect service for customers all over the world
Following is the essential information of mold, for your reference.
Name | Reliable and durable pipe fitting mold |
Mould material | 45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc. |
Mould base | LKM, HASCO etc |
Cavity | Single/multi |
Runner | Hot/cold |
Design software | UG, PROE, CAD, CAXA etc. |
Plastic material | PP, PC, PS, PE, PU, PVC, ABS, PMMA etc. |
Mould life | 300,000-3,000,000 shots |
Delivery time | 15-60days |
Specification | Depends on customer's requirements. |
