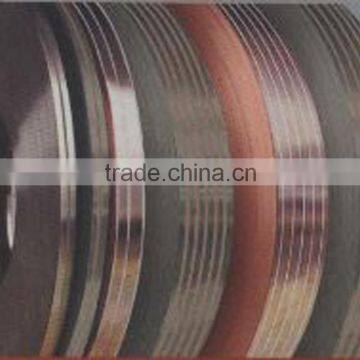

factory supply bimetal steel strip/ bimetal thermostat

FOB Price

US$ 20 - 40 / Kilogram

100 Kilograms(Min. Order)

Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	YDTB
Model Number	YDTB20110

Product Description

Thermostatic bimetal are today widely used in control safety and thermal compensation system, due to their reliability, sturdiness and low cost. The widely range of YADA bimetals, manufactured to DIN standards, ASTM standards and Chinese GB standards, ensures a choice of products closely matched to different specific requirements. Moreover the tighter guarantees offered by YADA for both the physical properties and dimensional tolerances enable the bimetal to meet the increasingly stringent demands of modern industry.

Our company is a professional thermostatic bimetal manufacturer in China sice in 1985, it is our pleasure to cooperate with you about the thermostatic bimetal, and hope can help your company to satisfied with the market and demand

We are not only professional, but also hold rich experience:

Varieties of products, a full series of thermostatic bimetals.

57 kinds of thermostatic bimetal grades.

656 kinds of thermostatic bimetal specifications.

2300 kinds of thermostatic bimetal elements.

12 major series of product application

OEM offered and customized you various specification
First-level production equipment and testing equipment
Professional technical personnel and skilled workers
Having all certificates, including IS09001 Quality System Certification

A BROAD PRODUCT RANGE

YADA Type (YDTB)	Spec thermal curvature k 10-6	Spec thermal deflection a 10-6	Linearity range Acc. DIN1715 ℃	Upper application limit ℃	Stabilisation temperature ℃/2hours	Electrical resistvity at 20℃ μΩ.m	Density at 20℃ g/cm3	Vickers hardness (HV) for standard reducation		Thermal conductivity at 20℃ W/m-k	Specific heat at 20℃ J/g-k	Modulus of elasticity at 20℃ N/mm2	Maximum admissible stress at 20℃ σPerm N/mm2
YADA Type (YDTB)	Spec thermal curvature k 10-6	Spec thermal deflection a 10-6	Linearity range Acc. DIN1715 ℃	Upper application limit ℃		Electrical resistvity at 20℃ μΩ.m	Density at 20℃ g/cm3	Active side	Passive side	Thermal conductivity at 20℃ W/m-k	Specific heat at 20℃ J/g-k	Modulus of elasticity at 20℃ N/mm2	Maximum admissible stress at 20℃ σPerm N/mm2
YDTB20110	39.0+/-4%	20.8	180	350	250	1.10+/-4%	7.6	205	210	6	0.46	135000	200
YDTB14140	28.6+/-5%	15.5	180	350	250	1.40+/-5%	7.4	205	210	6	0.46	134000	150
YDTB15120	28.5+/-4%	15.3	180	350	250	1.20+/-4%	7.6	205	210	6	0.46	150000	200
YDTB60SP	38.5+/-4%	20.5	180	350	250	0.58+/-5%	7.8	205	210	12	0.46	135000	200
YDTB40SP	38.5+/-4%	20.5	180	350	250	0.40+/-5%	7.8	205	210	20	0.46	135000	200
YDTB25SP	38.5+/-4%	20.5	180	350	250	0.25+/-5%	7.8	205	210	30	0.46	135000	200
YDTB20SP	38.5+/-4%	20.5	180	350	250	0.208+/-7%	7.8	205	210	40	0.46	135000	200
YDTB15SP	38.2+/-4%	20.4	180	350	250	0.15+/-7%	7.8	205	210	54	0.46	135000	200
YDTB11SP	38.2+/-4%	20.4	180	350	250	0.115+/-7%	7.9	205	210	71	0.46	135000	200
YDTB8SP	38.0+/-4%	20.2	180	350	250	0.082+/-9%	8	205	210	104	0.46	135000	200
YDTB5SP	33.8+/-4%	17.9	180	350	250	0.048+/-9%	8.2	205	210	155	0.46	135000	150
YDTB1578	28.5+/-4%	15	180	450	350	0.78+/-5%	8.1	235	210	13	0.46	170000	200
YDTB1480	28.1+/-4%	14	180	450	350	0.80+/-5%	8.2	235	210	12	0.46	170000	200
YDTB1455	26.1+/-4%	14	180	450	250	0.55+/-5%	8.2	235	210	16	0.46	170000	200
YDTB1440	27.6+/-4%	14.2	180	450	250	0.40+/-5%	8.3	235	210	20	0.46	170000	200
YDTB1430	27.2+/-4%	14.8	180	450	250	0.30+/-5%	8.3	235	210	23	0.46	170000	200
YDTB1425	26.1+/-4%	14	180	450	250	0.25+/-5%	8.3	235	210	28	0.44	170000	200
YDTB1415	26.9+/-4%	14.3	180	450	250	0.15+/-5%	8.3	235	210	55	0.45	170000	200
YDTB1411	26.1+/-4%	14	180	350	250	0.11+/-5%	8.2	270	210	70	0.44	166000	200
YDTB1409	25.6+/-4%	13.9	155	350	250	0.09+/-5%	8.2	270	210	90	0.44	166000	200
YDTB1408	26.5+/-4%	14.3	155	350	250	0.08+/-5%	8.2	270	210	100	0.44	166000	200
YDTB1306	25.1+/-4%	13.8	155	350	250	0.06+/-5%	8.3	270	210	135	0.44	160000	150
YDTB1304(RF)	24.7+/-4%	13	155	350	250	0.04+/-5%	8.2	275	210	180	0.42	150000	150
YDTB1303(RS)	24.7+/-4%	13	155	350	250	0.03+/-5%	8.2	275	210	220	0.42	150000	150
YDTB1270	22.9+/-4%	11.8	360	450	350	0.70+/-4%	8.1	235	220	13	0.46	150000	200
YDTB1070	18.8+/-4%	10.8	360	450	350	0.69+/-4%	8.1	235	220	13	0.46	150000	200
YDTB1109	21.8+/-4%	11.6	360	400	250	0.09+/-5%	8.2	235	220	88	0.46	138000	200
* Other non standard or grades produced,please consult us.

Application of bimetal strip:

different types breaker
Relay
Electric kettle
Bimetal strip thermometer, etc

Customer recognition:

Workshop:

ISO 9001:

Packing of bimetal strip:

YADA Bimetal Factory:

FAQ:

1.What's your MOQ?

Usually 50 kgs.

2.What's your delivery time?

For stocks, we can send the goods to loading port within 7 days after receiving your deposit.

For production period, it usually needs about 15days- 30 days after receiving the deposit.

3.Do you provide free samples?

Yes, we can provide a free sample for testing, If we have sample in stock, The quantity based on the material type, The buyer should bear all the shipping costs.

4.What's your payment terms?

We accept 100% TT ( Telegraphic Transfer) in advance for small orders( value under USD 2000). For some big orders, we can accept 30% deposit, 70% balance before shipment. For very small orders , we can accept Western union payment. We are doing the best to match your demand.

Wenzhou Yada bimetal CO,.LTD

Sinced in 1985

Contact details:

Website:

Mob: 0086 18657717078

E-mail: micool.yang at

Skype: micool.yang at
