Home > Products > Cutting machine > used 1200mm die cutting and creasing machine

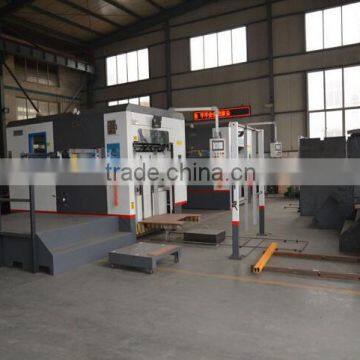

used 1200mm die cutting and creasing machine
- 10 Set / Sets per Month
- TianJin
- T/T
You May Like
-
semi automatic paper feed white board die cutting and creasing machine
-
Used Full Automatic automatic die cutting and creasing machine with stripping made in China
-
1060 High speed full Automatic automatic die cutting and creasing machine with stripping made in China
-
thin blade slitter scorer for corrugated carton box making machine
-
Quadruple slot Angle cutter
-
Four knives slotting angle cutter
Product Details
| Condition | New | Application | Other, Machinery & Hardware | |
| Packaging Type | Film | Packaging Material | Paper | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380V 60HZ | Power | 50KW | |
| Place of Origin | Hebei, China | Brand Name | XINHUA | |
| Model Number | WJ | Weight | 10T | |
| Dimension(L*W*H) | 15*5*5m | Certification | CE and ISO certificates | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic pressed flat die cutting & creasing machine
Functions and Features:
MY1060/1080/1100/1200 automatic die cutting & creasing machine with stripping station is pivotal equipment, which is designed for die cutting, creasing and cold embossing paper products such as paper cassettes, box board containers, paper clutch, overpower protection, electric compression relief, etc. to ensure stable and high speed running of the machine. This machine is equipped with practical and reliable mechanisms such as pre-stack device, secondary feeding device, speedy changing paper feeding mechanism automatic secondary delivery mechanism, pneumatic sampling, automatic timing lubricating device, cooling facility for oil etc. Which ensure the excellent performance of the machine, electrical components and driving elements of internationally known brands are adopted to ensure die cutting precision and reliability of running, PLC and electronic cam monitor an display the electric control system. It is convenient for fault diagnosis, man-machine ineterface monilors machine state displaying running instructions, trouble location, trouble shooting to fully actualize man-machine communication, industry refrigerator of electrical cabinet ensure that electric components work stably at uniform temperature.
Specifications:
Model | MY-1060 | MY-1080 | MY-1100 | MY-1200 |
Max. paper size (mm) | 1060x750 | 1080x780 | 1100x780 | 1200x780 |
Min. paper size (mm) | 400x350 | 400x370 | 400x370 | 400x380 |
Max. die cutting size (mm) | 1050x730 | 1070x760 | 1090x770 | 1180x770 |
Min. size in mouth (mm) | 5 | 5 | 5 | 5 |
Max. die cutting pressure (T) | 300N/cm2 | 300N/cm2 | 300N/cm2 | 300N/cm2 |
Suitable paper (mm):cardboard corrugated paper | 0.1-0.3 | 0.1-0.3 | 0.1-2 | 0.1-1.5 |
≤4 | ≤4 | ≤5 | ≤5 | |
Die cutting precision (mm) | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
Max. die cutting speed (sheets/h) | 6500 | 6500 | 6500 | 6500 |
Max. feeding pile height (mm) | 1000 | 1100 | 1100 | 1100 |
Max. delivery pile height (mm) | 1000 | 1100 | 1100 | 1100 |
Total power (kw) | 13.5 | 15 | 17 | 17 |
Weight (T) | 15 | 16 | 17 | 18 |
