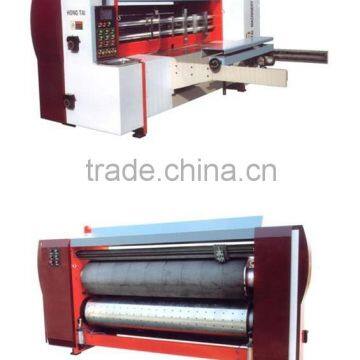

Automatic Corrugated Carton Box Rotary Die Cutting Machine

  NC-Auto Rotary Corrugated Sheet Cutter

  NC-Auto Rotary Die-Cutting Machine mainly to die cut the unique style carton board with high speed and accuracy.

  Die Cutting Part:

--Die-cutting roller: the high quality steel materials, Wall thickness:30mm,balance correction, hard-chrome plating.

--Wallboard:high-quality cast iron material,50mm thickness, produced by large processing center

--Soft-roller :automatic grinding part to high the using service life,it can be grinded 3-4times;

--Linear speed automatic replenishment to ensure that each cartons are die-cutted with a same size

--Polyamide cushion:Imported from USA,ease to install,it can die-cut 12 million times.

--Mechanical soft roller:can finish about 40 mm lateral movement,the pads wear uniform;

--Six Level of grinding gears material:40cr. Low noise and long life;

--Die-cuttig roller cylinder automatic separation devices to reduce the abrasion of the cover

  Paper Feeding Part:

--Adsorption automatic feeder. Slotting, corner cutting, creasing punching can be done at one time.

--Feeding Speed:10,000 times/h, die-cutting precision: ±0.75mm

--Phase adjusted by planetary gear.Start and turn off with quick adjustment.

--Board Keeper in Front : Manual Adjusting.

Board Keeper at side: Electric Adjustmend

--Paper Feeding Wheels cover:High Advanced Plastic to prevent the cardboard to be pressed broken, increasing feeding accuracy.

  Computer Part:

--Man-machine interfaces.Total PLC Control System.

--Main Motor: variable-frequency motor

--Control Panel are simple and together,easy to operate

--The machine is by light,electricity,gas joint control system

--Electrical parts of the machine are all in brand-name.

Spec:
