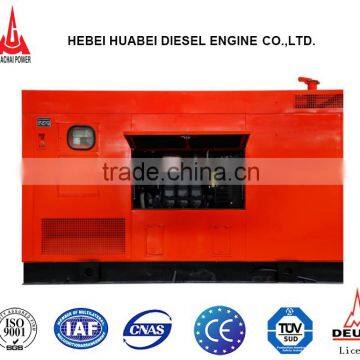

5kw ~500kw soundproof generator set deutz engine silent genset

FOB Price

USD $18,000 - $27,000 / Set

1 Set(Min.Order)

Port tianjin port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Huachai
Model Number	5GF-400GF	Output Type	AC Three Phase
Speed	1500	Frequency	50HZ
Rated Power	5-400kw	Rated Voltage	400V/230V
Rated Current	217A

Product Description

Engine Features:

1.Deutz brand diesel engine, single cylinder, single head, AC three phase, high-speed 4-stroke,V-90°shape

2.Turbocharged, inner oil pipe, inner water channel, four valve, central top-mounted 8 hole fuel injector

3.Electronic Governor

4.Bosch/Weifu Fuel injection pump, electronic motor starting system

5.Forged steel crankshaft ( imported from Deutz AG Germany), cast iron cylinder and replaceable wet type cylinder liner, crankshaft(imported from Deutz AG Germany), main bearings and big end bearings (imported from Deutz AG Germany)

Alternator Features:

1.Meccalte/Stamford/Customized

2.Brushless, 4 poles,rotation magnet, IP23(NEMA1)4.H class insulation system

Control Panel:Deep Sea

1.Automatic control panel, LCD display

2.Emergency stop

The engine used in generator

All models of the soundproof generator set

Gen-set Model	Prime Power	Engine Model	Cylinder No./type	Bore/Stroke(mm)	Displacement	Intake mode	Cooling Mode
5GF	5	F1L511	In-line 1	100/105	0.825	Natrually Aspirated	Air-cooled
10GF	10	F2L511	In-line2	100/105	1.625	Natrually Aspirated	Air-cooled
20GF	20	F3L912	In-line3	100/120	2.827	Natrually Aspirated	Air-cooled
30GF	30	F4L912	In-line4	100/120	3.770	Natrually Aspirated	Air-cooled
40GF	40	F6L912	In-line6	100/120	5.655	Natrually Aspirated	Air-cooled
50GF	50	F6L913	In-line6	102/125	6.128	Natrually Aspirated	Air-cooled
60GF	60	BF6L913	In-line6	102/125	6.128	Turbocharged	Air-cooled
70GF	70	BF6L913	In-line6	102/125	6.128	Turbocharged	Air-cooled
75GF	75	F8L413F	v-8	125/130	12.763	Natrually Aspirated	Air-cooled
90GF	90	F8L413F	v-8	125/130	12.763	Natrually Aspirated	Air-cooled
120GF	120	BF8L513	v-8	125/130	12.763	Turbocharged	Air-cooled
150GF	150	F12L413F	v-12	125/130	19.144	Natrually Aspirated	Air-cooled
150GF	150	BF8L513C	v-8	125/130	12.763	Turbocharged inter-cooled	Air-cooled
200GF	200	BF6M1015.G3	v-6	132/145	11.906	Turbocharged	Water-cooled
250GF	250	BF6M1015C.G4	v-6	132/145	11.906	Turbocharged inter-cooled	Water-cooled
300GF	300	BF6M1015CP.G3	v-6	132/145	11.906	Turbocharged inter-cooled	Water-cooled
350GF	350	BF8M1015CP.G2	v-8	132/145	15.874	Turbocharged inter-cooled	Water-cooled
400GF	400	BF8M1015CP.G3	v-8	132/145	15.874	Turbocharged inter-cooled	Water-cooled
