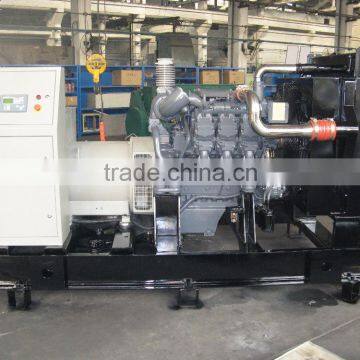

reliable diesel generator large power deutz engine bf6m1015cp cheap

Generator-set Specification Data

Generator-set

Diesel Engine (DEUTZ)

Alternator (Stamford)

Model

230GF

Model

BF6M1015C-LA G2A

Model

HCI4D

Rated prime power

230KW

Prime power

256KW

Rated power

240KW

standby power

253KW

Stand power

285KW

Stand power

400V/230V

Rated voltage

400/230V

Rated speed

1500rpm

Efficiency

93.00%

Rated frequency

415A

No. of Cylinder

6

Rated current

433A

Rated currency

50Hz

Bore/stroke

132/145

Power factor

0.8

Power factor

0.8

Cylinder arrangement

V

Frequency

50Hz

Steady state volt deviation

≤±1%

Fuel consumption

203g/kwh

Protection/ insulation

IP23/H

Steady state frequency

≤1.5%

Start mode

24V electrical

Exciting way

brushless self-exciting

Frequency drop scope

≤5%

Governor

electronic

Weight

915kg

Phase

three phase

Aspiration type

Turbocharged inter-cooled

Base Frame

steel

Cooling way

Water cooled

Dimension

(mm)

2800×1450×1950

Displacement

11.906L

Weight

3020kg

Weight

850kg

Running Condition:According:GB/T2820;Altitude:0~1000m;Ambient temperature:-35~40℃;Relative humidity :95%

Standard scope of supply:Generator-set assembly(diesel engine, alternator, air filter, oil filter, fuel filter, silencer elbow, battery, Connection lines, circuit breaker, bracket)

Option :base oil tank, independent oil tank, Assistant starting system when low temperature, Intelligent control system(including Weidian, Comap, Deep sea, etc).Different alternator brands available. One phase is optional.

Control system function:start and stop function.

Panel: voltage, current, frequency, power factor, power, oil pressure, battery voltage, start times, gen-set running hours, temperature, etc.

Failure protection(alarm and stop)function:over speed/speed signal loss alarm, low oil pressure alarm, high cylinder temperature stop, low battery voltage alarm, stop failure alarm, emergency stop alarm, VAC/frequency over limit alarm, currency/power over load alarm, voltage unstable alarm, currency unstable alarm, belt broken alarm, etc.
