ESP Electric Submersible Pump Power Cable
- Tianjin Shanghai Qingdao and any other port in China
- T/T Credit Card PayPal
You May Like
-
Submersible Deep Well Pump Cable AWG Standard Submersible Pump Power Cable
-
Halogen Free Low Smoke (LSZH) Electrical Power Cable
-
LSZH Low Smoke Zero Halogen SWA Electrical Power Cable
-
Copper Conductor SWA LSZH/ Low Smoke Halogen Free 0.6/1KV Cable
-
Low Smoke Halogen Free XLPE Insulated Flame Retardant Power Cable
-
XLPE Insulated Low Smoke Zero Halogen Medium Voltage 11KV Power Cable Quality Choice
Product Details
| Place of Origin | Hebei, China | Brand Name | YITENG | |
| Model Number | QYYEQ, QYJYEQ, QYYFN, QYEQNY, etc | Insulation Material | Rubber | |
| Type | Low Voltage | Application | Other, Electric Submersible Pump Units Power Supply | |
| Conductor Material | Copper | Jacket | Other, EPDM |
Product Description
ESP Electric Submersible Pump Power Cable
Specifications:
Votage: 3/6KV
Application: Electric Submersible Pump Units Power Supply
Chracteristics: Oil Rsistance, Heat Resistance and Corrosion Resistance.
1. Breif Introduction:
The ESP Electric Submersible Pump Power Cable products are used for electric submersible pump units power supply, whose rated voltage is less than 3kv or 6kv.The conductors’ permanent working temperature is 90℃,with excellent resistances to oil, heat and corrosion.
2. Voltage Class:
3KV,4KV,5KV,6KV
3. Carried Standard:
GB/T16750-2008, APIRP 11S6-2008
4. Storage Requirements:
Submersible Pumps Cables are not allowed to bump, twist, both ends of which need to keep away from moisture.
Attn: According to users' requirements, the company can produce nominal cross and corresponding wire gauge. Delivery by rolling can be packed in all-steel corrugated plate.
5. Types and Descriptions:
Model | Products Structure | Maximum Working Temperature |
QYYEQ type submersible power cable | Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 150℃ |
QYJYEQ type submersible pump lead cable | Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, PTFE band, chinlon fiber woven, galvanized(steel stainless, Monel ) steel tape armored | 150℃ |
QYYFN type submersible power cable | Polyimide-F46 coextruded film/ fluoroplastic composite insulation, nitrile rubber sheath, PTFE band, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 150℃ |
QYEQNY type submersible power cable | EPDM insulation, lead sheath, fiber band lapped, nitrile rubber public sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable | 120℃ |
QYYEQNY type submersible power cable | Polyimide-F46 coextruded film/EPDM composite insulation, lead sheath, fiber band lapped, nitrile rubber public sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable | 150℃ |
QYEQ type submersible power cable | EPDM insulation, lead sheath, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 120℃ |
QYPNY type submersible power cable | Polypropylene insulation, complex sheath of nitrile and PVC, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 90℃ |
QYJYFF type submersible pump lead cable | Polyimide-F46 coextruded film/ fluoroplastic composite insulation, chinlon fiber woven, galvanized(steel stainless, Monel ) steel tape armored submersible pump lead cable | 205℃ |
QYENY type submersible power cable | EPDM insulation, PTFE band/ fiber band lapped, nitrile rubber sheath, galvanized(steel stainless, Monel ) steel tape armored round submersible pump power cable | 120℃ |
QYEN type submersible power cable | EPDM insulation, nitrile sheath, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 120℃ |
QYPF type submersible power cable | Polypropylene insulation, complex sheath of nitrile and PVC, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 90℃ |
QYPN type submersible power cable | Modified polypropylene insulation, nitrile rubber sheath, PTFE band/ fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 90℃ |
QYYFF type submersible power cable | Polyimide-F46 film/ fluoroplastic composite insulation, fluoroplastic sheath, PTFE band, fiber band lapped, galvanized(steel stainless, Monel ) steel tape armored flat submersible pump power cable | 180℃ |

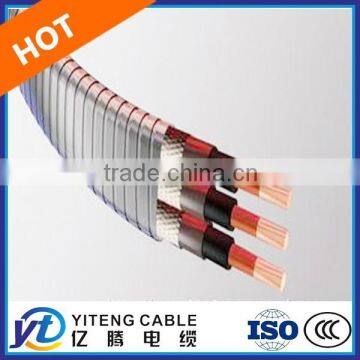

6. Structure and Picture Reference
Quality Assurance-Why Choose US?:
With Yiteng, all cables are produced by strict inspection and testing:
1). Premium Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials are all inspected carefully automatically. Only the qualified will be applied into production, the disqualified will be returned.
2). Strict Production Procedure: Cables in Yiteng are produced by advanced production machines.
3). Advanced Testing System: Cables in Yiteng will not be packed until they are tested totally qualified. Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…
4). Perfect Packaging & Shipping:
With Yiteng Cable,
1. Cables are packed in standard export drums.
2. Cables are handled carefully to ensure perfect package.
Why Choose US?
Yiteng Cable Technology Hebei Co., Ltd. sincerely ensure every present and potential customers and friends that we will always:
1. Make A Response with 12 Hours to All Custoemers;
2. ISO9001, ISO14001, CCC Certificates for Factory and Cable Products;
3. Factory Direct Supply and OEM Service of Cable Products;
4. Yiteng Cable will not only serve goods before selling, but will be better and better during sales and after sales;
5. All Customers' Information will be kept confidential without permission;
6. Production standard depends on customer's technic requirement, otherwise according to IEC, NFC standard;
7. Before production, technical data will be clarified with customer in case of any error or misunderstanding;
8. Trading Terms: FOB Tianjin, Qingdao, Shanghai, or CIF, CFR and other ways are also available;
9. Yiteng Cable can also help customers to seek for and inspect goods and factories of other categories once our cable deal is stable.
Yiteng Cable Technology Hebei Co.,Ltd. is a specialized manufacturer of cables.
Welcome Your Visit! Hope to Get in Touch with You! | |
Cable Factory Name | Yiteng Cable Technology Hebei Co., Ltd. |
Factory Established in | Year 1994, 20 Years’ Experience of Producing kinds of Cables |
Factory Location | Jiajiakou Town, Ningjin County, Hebei, China |
Export Office Location | No. 228 Jianshe North Street, Shijiazhuang, Hebei, China |
Cable Products Type
| Electrical Wires |
Customized Cables per Requirement | |
Bare Aluminum Conductor AAC AAAC ACAR ACSR | |
Overhead Aluminum Aerial Bundle Cable (ABC Cable) | |
Aluminum Alloy Cable with/ without Armor and Interlock | |
Shielded/ Screened Control Cable | |
Computer Shielded Cable | |
Flexible Rubber Cable | |
Mining Cable, Flexible Rubber Mining Cable, PVC and XLPE Insulated Power Mining Cable | |
High Temperature Cable, Silicone Rubber Insulated Cable, Teflon Insulated Cable | |
Fire Resistant/ Flame Retardant Power Cable | |
Low Voltage Power Cable and Medium Voltage Power Cable with or without Armour (Armour Type: Steel Tape or Steel Wire) | |
