Home > Products > Hikvision > Hikvision 2MP Network Mini PTZ Dome Camera DS-2DE3204W-DE

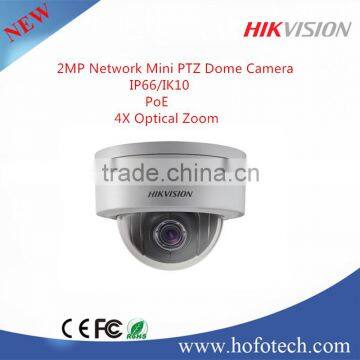

Hikvision 2MP Network Mini PTZ Dome Camera DS-2DE3204W-DE

FOB Price

USD $1 - $500 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai/Ningbo/HONGKONG
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Hikvision
Model Number	DS-2DE3204W-DE	Type	Analog Camera
Style	Bullet Camera	Sensor	CMOS
Technology	Infrared	Special Features	Waterproof / Weatherproof

Product Description

HOFO Will Be Your Best Partner

2MP Network Mini PTZ Dome Camera

• 1/3” Progressive Scan CMOS
• 1920 x 1080P
• 4X Optical Zoom
• DWDR
• Support IP66/IK10

• Support PoE(802.3af)

• Support RS485

• Support ezviz cloud P2P

• Support plug & play

Camera
Image Sensor:	\|	1/3" Progressive Scan CMOS
Effective Pixels:	\|	1920(H)x1080(V)
Minimum Illumination:	\|	F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux
White Balance:	\|	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC:	\|	Auto/Manual
S/N Ratio:	\|	≥ 52dB
BLC:	\|	ON/OFF
HLC:	\|	Support
WDR:	\|	Support
Shutter Time:	\|	1/1~1/10,000s
Day& Night:	\|	ICR
Digital Zoom:	\|	16X
Privacy Masking:	\|	8 privacy masks programmable
Auto Focus:	\|	Auto / Semi-automatic / Manual
Lens
Focal Length:	\|	2.8~12mm, 4x
Zoom Speed:	\|	Approx.1s(Wide~Tele)
Angle of View:	\|	105~33.5 degree (Wide~Tele)
Aperture Range:	\|	F1.6 ~F2.7
Pan & Tilt
Pan Range:	\|	Pan: 0~350°
Pan Speed:	\|	Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range:	\|	Tilt: 0°~90°
Tilt Speed:	\|	Tilt Manual Speed: 0.1°~50°/s, Tilt Preset Speed: 50°/s
Proportional Zoom:	\|	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset:	\|	300
Power loss recovery:	\|	Support
Park Action:	\|	Preset
PTZ Position Display:	\|	ON/OFF
Alarm
Alarm Input:	\|	1
Alarm Output:	\|	1
Alarm Actions:	\|	Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Input & Output
Audio Input:	\|	1 Mic in/Line in interface Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output:	\|	1 Audio output interface Line level, impedance: 600Ω
Network
Ethernet:	\|	10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution:	\|	1920×1080
Main Stream:	\|	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream:	\|	50Hz:25fps(704×576), 25fps(640×576), 25fps(320×288) 60Hz:30fps(704×480), 30fps(640×480), 30fps(320×240)
Image Compression:	\|	H.264 / MJPEG
ROI encoding:	\|	Support 4 areas with adjustable levels
Audio Compression:	\|	G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols:	\|	IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users:	\|	Up to 20 users
Dual Stream:	\|	Support
Mini SD Card:	\|	Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level:	\|	Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures:	\|	User authentication (ID and PW), Host authentication (MAC address) IP address filtering
EZVIZ:	\|	Support
Client GUI
Date & Time Display:	\|	Time: Week: Date, 6 formats on the Client
Client:	\|	Support iVMS-4200
Web Browser:	\|	IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +
General
Menu Language:	\|	English
Power Supply:	\|	12V DC or PoE(Power over Ethernet)
Power Consumption:	\|	Max. 8W
Working Temperature/Humidity:	\|	-30°C ~ 65°C (-22°F ~ 149°F)
Protection Level:	\|	IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting:	\|	Various mounting modes optional
Dimensions:	\|	Φ140.7×107.2mm
Weight (approx.):	\|	950g
Mount Option:	\|	Wall mount: DS-1273ZJ -PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1273ZJ -PT6; Wall Mount: DS-1292ZJ; Wall Mount: DS-1293ZJ

♦ Quality Control

1. All raw materials are carefully selected and inspected.
2. Advanced production equipment is used and routinely inspected and serviced.
3. All operators and employees are thoroughly trained.
4. All products have passed the European Union RoHS standard and are CE, FCC certified.
5. All products must pass strict inspection before delivery.

6. Professional logistics personnel are employed to control the damage during the physical distribution of products.

♦ Cost Control

1. Our factories have been accredited in terms of ISO9001, and our advanced management system increases efficiency and reduces costs.

2. Bulk purchasing has reduced our material cost, and massive production have lowed each product cost.

3. Advanced production equipment such as our SMT production line provides a highly efficient production rate.
4. Reduction of any unnecessary surplus of products by strict stock control reduces our warehousing costs.

♦ Strong Tech Support

1. Presale: product consultation and solution design can be provided.
2. Sale: spares parts can be provided at a certain discount. Delivery time is approximately two weeks. Please note that delivery times may vary depending on the destination and transportation method.
3. After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
4. We can also provide project designs, customized products, online training, in-person training, and OEM services.
