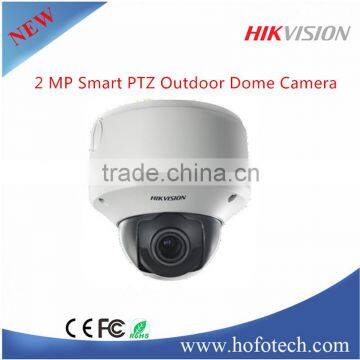

Hikvision CCTV Security 2 MP Smart PTZ Outdoor Dome IP Camera DS-2CD4324F-PTZ(S)

FOB Price

US$ 1 - 500 / Piece

1 Piece(Min. Order)

Port ShangHai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Hikvision
Model Number	DS-2CD4324F-PTZ(S)	Type	IP Camera
Style	Dome Camera	Sensor	CMOS
Technology	NetWork	Special Features	Waterproof / Weatherproof

Product Description

HOFO Will Be Your Best Partner

1/2.8” Progressive Scan CMOS
1920 x 1080 @ 30fps frame rate
Slow shutter
DWDR
Motorized PTZ
3D DNR
Support 128G on-board storage
AC24V/PoE

Camera
Image Sensor:	\|	1/2.8" Progressive Scan CMOS
Min. Illumination:	\|	0.01 Lux @ (F1.2, AGC ON), 0.014 Lux @ (F1.4, AGC ON)
Shutter time:	\|	1s ~ 1/100,000s
Slow shutter:	\|	Support
Lens:	\|	2.8-12mm @ F1.4, angle of view: 113-33.8°; 8-32mm @ F1.4, angle of view: 31.2~10.2°
Lens Mount:	\|	φ14
Auto Iris:	\|	DC drive
Day& Night:	\|	IR cut filter with auto switch
Compression Standard
Video Compression:	\|	H.264+/H.264/MPEG4/MJPEG
H.264 code profile:	\|	Baseline Profile / Main Profile / High Profile
Video bit rate:	\|	32Kbps~16Mbps
Audio Compression:	\|	G.711/G.722.1/G.726/MP2L2
Audio bit rate:	\|	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Image Resolution:	\|	1920 x 1080
Frame Rate:	\|	50Hz: 50fps (1920 × 1080)/(1280 × 960)/(1280 × 720) 60Hz: 60fps (1920 × 1080)/(1280 × 960)/(1280 × 720)
Third Stream:	\|	Independent with Main Stream and Sub Stream, up to 50/60Hz: 25fps(1920 × 1080)
Image Enhancement:	\|	BLC/HLC/3D DNR/ROI/Defog
Image Settings:	\|	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Distortion Correction:	\|	Support
Regional Cropping:	\|	Support
Picture Overlay:	\|	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Day/Night Switch:	\|	Auto/Schedule/Triggered by Alarm In
Network
Network Storage:	\|	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger:	\|	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protocols:	\|	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Security:	\|	User Authentication, Watermark, IP address filtering, Anonymous access
System Compatibility:	\|	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio:	\|	2-ch 3.5 mm audio in (Mic in/Line in)/out interface
Communication Interface:	\|	1 RJ45 10M/100M Ethernet port, 1 RS-485 interface (-S)
Alarm:	\|	2 input, 2 output (up to DC24V 1A or AC110V 500mA )
Video Output:	\|	1Vp-p Composite Output (75 Ω, BNC)
On-board storage:	\|	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:	\|	Yes
Audio
Environment Noise Filtering:	\|	Support
Audio I/O:	\|	Support dual audio track, stereo
Audio Sampling Rate:	\|	16kHz / 32kHz / 44.1kHz / 48kHz
Smart Feature-set
Behavior Analysis:	\|	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Line Crossing Detection:	\|	Cross a pre-defined virtual line
Intrusion Detection:	\|	Enter and loiter in a pre-defined virtual region
Region Entrance:	\|	Enter a pre-defined virtual region from the outside place
Region Exiting:	\|	Exit from a pre-defined virtual region
Unattended Baggage:	\|	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object Removal:	\|	Objects removed from the pre-defined region, such as the exhibits on display.
Exception Detections:	\|	Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Recognition:	\|	Face detection recognition
Statistics:	\|	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
Operating Conditions:	\|	-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply:	\|	24 VAC ± 10% / PoE (802.3at)
Power Consumption:	\|	Max. 13.5 W
Impact Protection:	\|	IK10
Weather Proof:	\|	IP66
Dimensions:	\|	Φ159.8 × 146 mm(Φ6.29” ×5.75”)
Weight:	\|	2100 g (4.63 lbs)
NOTE::	\|	* "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface

Small Trick to Distinguish IPC are originally from Hikvision or not by SN number :

♦ Quality Control

1. All raw materials are carefully selected and inspected.
2. Advanced production equipment is used and routinely inspected and serviced.
3. All operators and employees are thoroughly trained.
4. All products have passed the European Union RoHS standard and are CE, FCC certified.
5. All products must pass strict inspection before delivery.

6. Professional logistics personnel are employed to control the damage during the physical distribution of products.

♦ Cost Control

1. Our factories have been accredited in terms of ISO9001, and our advanced management system increases efficiency and reduces costs.

2. Bulk purchasing has reduced our material cost, and massive production have lowed each product cost.

3. Advanced production equipment such as our SMT production line provides a highly efficient production rate.
4. Reduction of any unnecessary surplus of products by strict stock control reduces our warehousing costs.

♦ Strong Tech Support

1. Presale: product consultation and solution design can be provided.
2. Sale: spares parts can be provided at a certain discount. Delivery time is approximately two weeks. Please note that delivery times may vary depending on the destination and transportation method.
3. After sale: We offer a 2-years warranty, which includes maintenance and technical support for all the products. Within the warranty period, exchanges and free maintenance are provided. If any quality issues occur, please contact us for technical support via telephone, email, or any method available on our site.
4. We can also provide project designs, customized products, online training, in-person training, and OEM services.
