Rated Voltage 450/750V and Below Rubber Insulated Cables for General Purpose

Rated Voltage 450/750V and Below Rubber Insulated Cables for General Purpose

Yiteng Cable - Your Best Business Partner in the Cable Field!

Yiteng Cable - Always At Your Service!

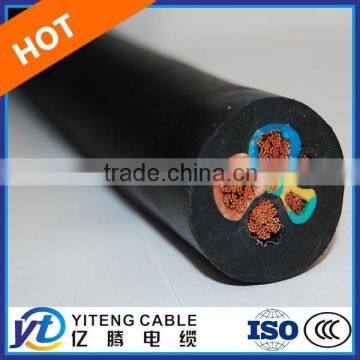

Rated Voltage 450/750V and below Rubber Insulated Cables

1. Applications for Rated Voltage 450/750V and Below Rubber Insulated Cables for General Purpose:

The cables are suitable for use in household electrical appliances,tools,movable appliances and power distribution network for rated voltage 450/750V AC and below.
Continuous operating temperature:≤60℃.

2. Manufacturing Standards for  Rated Voltage 450/750V and Below Rubber Insulated Cables for General Purpose:

The copper conductor rubber sheathed electric power cables are manufactured according to the standard of GB 5013-2008 idt.IEC60245-2004, at the same time, they are also can be manufactured according to the standard of IEC, BS, DIN and AEIC.
The bending radius of this rubber electric cable should not be less than 6 times of the cable’s OD.

3. Types and Diagrams for  Rated Voltage 450/750V and Below Rubber Insulated Cables for General Purpose:

4.  Operating Characteristics for Rated Voltage 450/750V and Below Rubber Insulated Cables for General Purpose:
A) YZ specification rubber power cable rated voltage Uo/U IS 300/500V, YC model is 450/750V
B) Max. permissible operating temperature of the conductor is 65℃
C)W specification rubber power cable has the property of durability and suitable for outdoor touching of greasy dirt.
D) ZR specification rubber power cable has the property of flame-retardant.

5.  Main Technical Parameters of Rated Voltage 450/750V and Below Rubber Insulated Cables for General Purpose:

 Heat resistant silicone rubber insulated cable 60245 IEC 03(YG)

Middle-duty rubber sheathed flexible wire 60245 IEC 53(YZ)

Polychloroprene compound (PCP) or other equivalent synthetic elastomer sheathed flexible wire 60245 IEC 57(YZW)
H05RR-F H05RN-F 300/500V

Heavyduty Polychloroprene compound (PCP) or other equivalent synthetic elastomer sheathed flexible wire 60245 IEC 66(YCW)
H07RN-F

Heavy-duty rubber sheathed elevator cable 60245 IEC 74(YT)
Polychloroprene compound (PCP) or other equivalent synthetic elastomer sheathed elevator cable 60245 IEC 75(YTF)

Quality Assurance

With Yiteng, all cables are produced by strict inspection and testing:

1). Raw Material: Copper, Aluminium, PVC, PE and XLPE granules and all other materials for producing cables are all inspected carefully automatically. Only the qualified will be applied into cable production, the disqualified will be rejected.

2). Production Procedure: Cables in Yiteng are produced by advanced cable production machines.

3). Testing: Cables in Yiteng will not be packed until they are tested totally qualified. Cable Testing Machines includes Online Core Shift Detection Device, Tension Tester, Aging Test Chamber, Experimental Apparatus of Combustion, Insulation Resistance Tester and etc…

With Yiteng Cable,

1. Cables are packed in standard export drums or other ways per customer's requirement;

2. Cables are handled and shipped carefully to ensure perfect package unpon customer's receiving.

Yiteng Cable’s business philosophy is and always remains “Helping Customers to Succeed”. We commit ourselves and our resources to the development of the cable industry by establishing strategic cooperation with global agents and customers.

All for Customers—More Than A Promise

Apart from supplying good quality cables, our service teams are always ready to provide expertise to customers.

1. When was Yiteng Cable founded?

Our factory was first establlished in Year 1994 and then it changed names several times.

2. What kinds of cables does Yiteng Cable produce?

1). Overhead Line Cables: Bare Conductor: AAC, AAAC, ACAR, ACSR;

                                               ABC Cable( Aerial Bundle Cable): Solid Core, Duplex, Triplex, Quadruplex Service Drop, etc;

2). Alluminum Alloy Cable;

3). Shield Cable;

4). Control Cable;

5). Power Cable;

6). Special Cable in accordance with Customer's specific requirement.

3. What certificates does Yiteng Cable has been approved?

Yiteng Cable has been approved successfully by CCC, ISO9001 and ISO14001, SGS, etc;

4. What's the Minimum Order Quantity?

It depends on the production line. For the Overhead Line Cable, the production line is long, so the MOQ should be long enough for the production line to run.

5. Can customers audit Yiteng Cable?

Sure, Yiteng Cable alwlays welcome customers, home and aborad, come and audit the factory before cooperation. Cables in Yiteng can also be inspected by customers personally or the third party every time before shippment.

Pls click and contact us for any question or problem! YITENG CABLE will always be at your service.
