XLPE Insulated PVC Sheathed Power Cables
- TIANJIN SHANGHAI QINGDAO
- T/T Credit Card
You May Like
-
Power Cable 0.6-1KV XLPE Insulated SWA Steel Wire Armored Cable
-
Power Transmission Armoured Power Cable
-
0.6-1KV Low Voltage PVC Insulated Armored Power Cable
-
Copper Conductor PVC Insulated Armored Electric Power Cable
-
Armoured Low Voltage Power Cable for Power Transmission
-
XLPE Insulated PVC Sheathed Low Voltage Power Cables
Product Details
| Place of Origin | Hebei, China | Brand Name | YITENG | |
| Model Number | 0.6/1kv 8.7/15KV 26/35kV | Insulation Material | XLPE | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | PVC |
Product Description

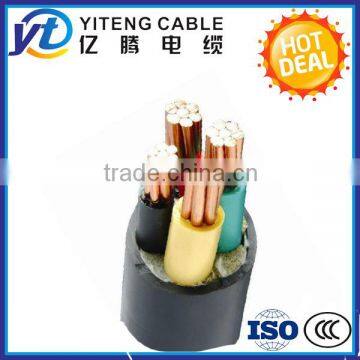

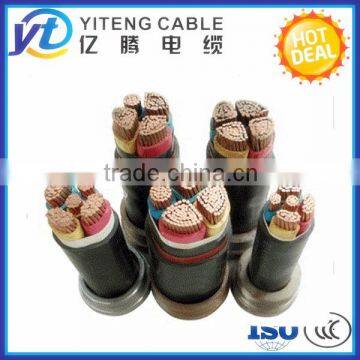

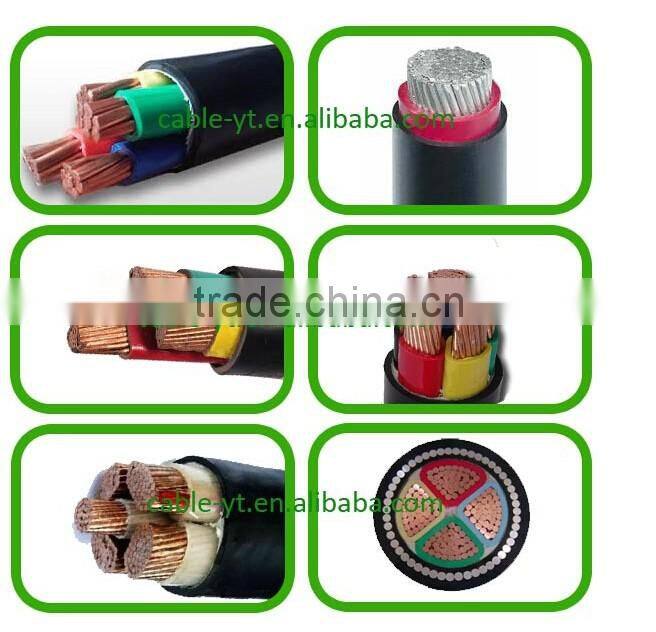

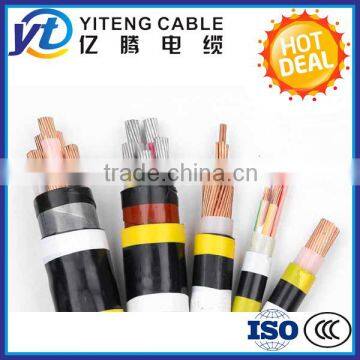

CU Conductor XLPE Insulated PVC Sheathed Power Cable
1.The applications: Rated voltage (U0/U) 0.6/1kv 8.7/15KV 26/35kV in transmission & transformation line & for water-proofing purpose .
2. Cores: 1~5 cores,3C+1E,4C+1E,3C+2E
3.Standards: 60502IEC ISO9001
4. Product features:
1) No necessary to heat up in advance while installing above 0oC.
2) Max. continuous normal operating Temperature: 90oC (PVC Sheathed cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
5.Model and Data
U0/Um(kv) | 1st class | 0.6/1kv | 1.8/3kv | 3.6/6kv | 6/10kv | 8.7/15kv | 12/20kv | 18/30kv | 21/35kv |
No.of Core | |||||||||
1 Core | Section | 1.5-800 | 25-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 |
| |||||||||
area(mm2) | |||||||||
2 Core | Section | 1.5-185 | / | / | / | / | / | / | / |
| |||||||||
Area(mm2) | |||||||||
3 Core | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 | |
4 Core | Section | 2.5-400 | 25-400 | / | / | / | / | / | / |
Area(mm2) |
4 cores:
cross section mm2 | insulated thickness mm | sheath thickness mm | outer diameter mm | testing voltage kv | current loading capacity | |
in the air | to be laid underground | |||||
1.5 | 0.7 | 1.5 | 10.6 | 3.5 | 21 | 25 |
2.5 | 0.7 | 1.5 | 11.5 | 3.5 | 28 | 33 |
4 | 0.7 | 1.5 | 12.8 | 3.5 | 37 | 44 |
6 | 0.7 | 1.5 | 14 | 3.5 | 46 | 54 |
10 | 0.7 | 1.5 | 15.9 | 3.5 | 63 | 73 |
16 | 0.7 | 2 | 19.1 | 3.5 | 84 | 94 |
25 | 0.9 | 2 | 22.7 | 3.5 | 109 | 120 |
35 | 0.9 | 2 | 25.4 | 3.5 | 132 | 144 |
50 | 1 | 2 | 29 | 3.5 | 159 | 169 |
70 | 1.1 | 2 | 32.9 | 3.5 | 195 | 205 |
95 | 1.1 | 2.5 | 37.7 | 3.5 | 237 | 245 |
120 | 1.2 | 2.5 | 41.6 | 3.5 | 273 | 278 |
150 | 1.4 | 3 | 47.6 | 3.5 | 310 | 309 |
185 | 1.6 | 3 | 50.6 | 3.5 | 355 | 347 |
240 | 1.7 | 3 | 56.4 | 3.5 | 416 | 399 |
300 | 1.8 | 3.5 | 62.2 | 3.5 | 473 | 446 |
400 | 2 | 3.5 | 68.9 | 3.5 | 512 | 431 |
3+1 cores:
cross section mm2 | insulated thickness mm | sheath thickness mm | outer diameter mm | testing voltage kv | current loading capacity | |
in the air | to be laid underground | |||||
1.5 | 0.7 | 1.5 | 10.6 | 3.5 | 21 | 25 |
2.5 | 0.7 | 1.5 | 11.5 | 3.5 | 28 | 33 |
4 | 0.7 | 1.5 | 12.5 | 3.5 | 37 | 44 |
6 | 0.7 | 1.5 | 13.7 | 3.5 | 46 | 54 |
10 | 0.7 | 1.5 | 15.4 | 3.5 | 63 | 73 |
16 | 0.7 | 2 | 17.5 | 3.5 | 84 | 94 |
25 | 0.9 | 2 | 21.8 | 3.5 | 109 | 120 |
35 | 0.9 | 2 | 23.8 | 3.5 | 132 | 144 |
50 | 1 | 2 | 27.4 | 3.5 | 159 | 169 |
70 | 1.1 | 2 | 31 | 3.5 | 195 | 205 |
95 | 1.1 | 2.5 | 34.8 | 3.5 | 237 | 245 |
120 | 1.2 | 2.5 | 39.7 | 3.5 | 273 | 278 |
150 | 1.4 | 3 | 42.9 | 3.5 | 310 | 309 |
185 | 1.6 | 3 | 52.7 | 3.5 | 355 | 347 |
240 | 1.7 | 3 | 58 | 3.5 | 416 | 399 |
300 | 1.8 | 3.5 | 62.2 | 3.5 | 473 | 446 |
400 | 2 | 3.5 | 68.9 | 3.5 | 512 | 431 |
YJV Type
Model |
Name
| Uses |
Cores | Conductor nominal cross section mm2
|
YJV | Copper core XLPE insulated PVC sheathed power cable
| Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
| 1 | 1.5~800
|
YJY | Copper core XLPE insulated PVC sheathed power cable
| Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
| 2 | 1.5~800
|
YJV22 | Copper core XLPE insulated PVC sheathed power cable
| Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY . | 3 | 1.5~400
|
YJLV23 |
Copper core XLPE insulated PVC sheathed | Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
| 4 | 1.5~400 |
YJV32 | Copper core XLPE insulated PVC sheathed power cable
| Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
| 3+1 | 1.5~400
|
YJV33 | Copper core XLPE insulated PVC sheathed power cable
| Can be laid in indoors, tunnels and pipelines can not afford cable mechanical external force. Cable can not afford to pull. YJY YJLY
| 4+1 | + 1.5~400
|
ZR Type
Type | Description | Main Application | |
Cu core | Al core | ||
(ZR)YJV | (ZR)YJLV | (Flame retardant) Cu, Al core XLPE insulated, PVC or PE sheathed power cable. | For laying indoor, tunnel, underground and canal. Unable to bear external mechanical pulling force and pressure during laid. |
(ZR)YJV22 | (ZR)YJLV22 | (Flame retardant) Cu, Al core XLPE insulated, steel armoured, PVC or PE sheathed power cable. | For laying indoor, tunnel, underground and canal. Able to bear external mechanical pulling force , but unable to bear large pulling force. |
(ZR)YJY23 | (ZR)YJLV23 | ||
(ZR)YJLV32 | (ZR)YJLV32 | (Flame retardant) Cu, Al core XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable | For laying in shaft, water under ground and large difference of level, able to bear mechanical pressure and moderate pulling force. |
(ZR)YJLV42 | (ZR)YJLV42 | (Flame retardant) Cu, Al core XLPE insulated, thick steel wire armored, PVC or PE sheathed power cable | For laying in the water, seabed and large difference of level, able to bear large mechanical pressure and pulling force. |
or | or | ||
(ZR)YJLV43 | (ZR)YJLV43 | ||

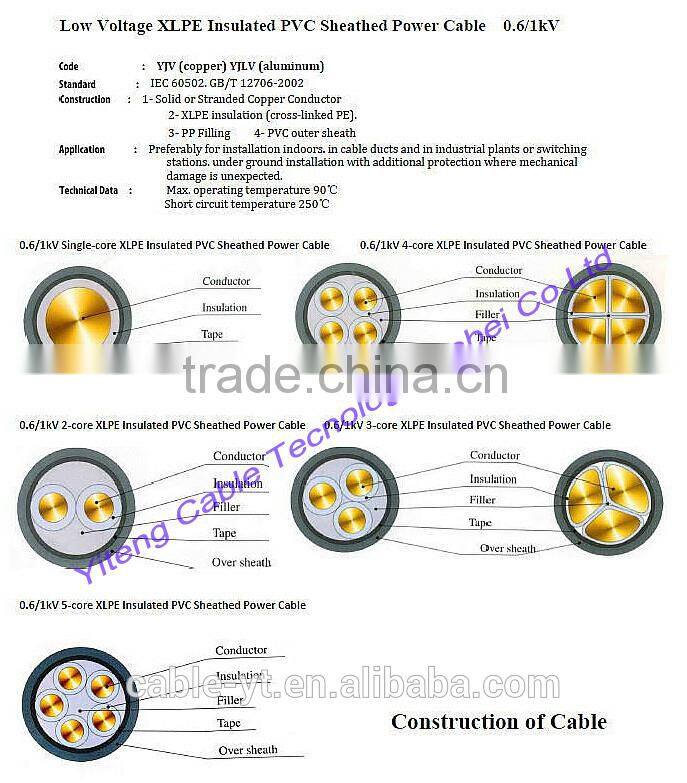

1.XLPE Type

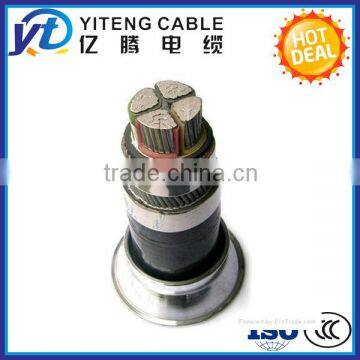

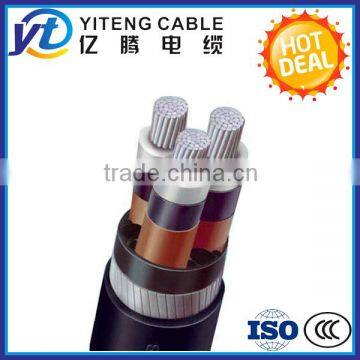

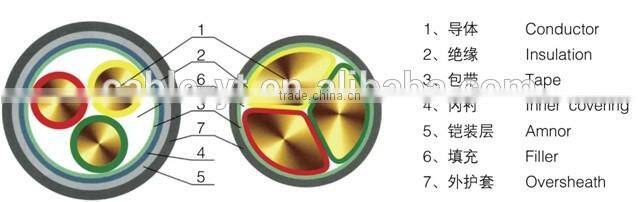

2. Armor Type
Yiteng Cable Technology Hebei Co., Ltd
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you
.
