Low Tempearture EVI+DC Heat Pump

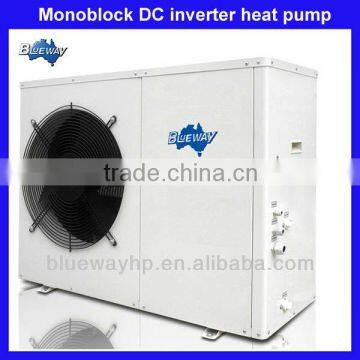

Compact low temperature EVI monobloc heat pump

Detailed Product Description
1. Design for cold climate
2. Compact design, easy for installation
3. Durable, reliable and easy to operation
4. Low noise design, High working efficiency
Introduction
Compact EVI air to water heat pump is specially designed for house heating and sanitary hot water in cold area. The ambient temperature range is -25DC to 43DC. It can use safely in -20DC ambient with strong low-temperature heating capacity.
Adopting the most advanced low-temperature Enhanced Vapors Injection compressor technology. Compact EVI heat pump delivers higher heating capacity at low evaporation temperature thereby better responding to heating requirements than normal air source heat pump, it also results in less supplementary heating to cover the full heating demand on the coldest days. It has been further optimized to enable heat pumps to efficiently produce water temperature up to 60 DC during cold winter time.
  KEY FEATURES: Heating Capacity range: 14kW, 27kW, 41kW, 49kW and 95kW.

1. Water exchanger equipped with high efficiency tube in shell heat exchanger
2. Intelligent controller and adjustment by quick mind microprocessor.
3. Split design with indoor unit and outdoor unit, easy for installation.
4. Automatic defrosting function included (With reverse valve inside).
5. Can be used for floor heating, fan coils, water heaters and also modern radiators.
6. with perfect system for defrosting which can let the units work under ambient temperature of -20 Centigrade
7. R417a or R407c refrigerant, environmentally friendly – Green energy, no CO2 emissions

Certificat:

CE, CB, RoHS, Ceonform to EN14511-2:2011 test standard, , ISO9001, ISO14001.
OPTIONAL: Galvanized metal cabinet or stainless steel cabinet
Warranty:
* CE & RoHS approval.
* 1 years warranty on the whole unit
* 1% spare parts free of charge for maintenance.
Support:
Blueway is capable of manufacturing and supplying even the largest liquid heating and cooling requirement for applications. We are looking forward to find potential partner all over the world to cooperate together. We are insisting on the strategy of: “Client service firstly and continuous development", we will offer better product with best service to all the customers. For clients’ special design requirement, if the annual order quantity is above: 300pcs. We can offer one special design for you exclusively.
