Stainless Steel Multiple Use Powder Rotary Valves
- ShangHai
- T/T
You May Like
Product Details
| Standard or Nonstandard | Standard | Material | Stainless Steel | |
| Place of Origin | Jiangsu, China | Model Number | DN250 | |
| Brand Name | JinBao |
Product Description
Specifications
1, For food /corn/chemical flour other products2, Under cyclone ! Airlock, perfect airlight
3, Good efficiency, low noise

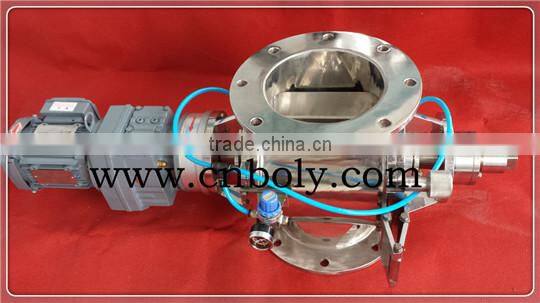

Flow-through Rotary Airlock Valve
Fast Intruction:
Stainless Steel 304/316L made
SEW Motor
SKF Bearing
The company mainly stainless steel, carbon steel, cast iron as raw materials for rotary airlock valve . Uniform material, process improvement, and workmanship. Our company is the domestic famous brand products, has a large number of exports to southeast Asia and Europe, South America and other places.
We produce reliable airlock, we never cut the cost:
The products are widely used, sawdust, grains, plastics, chemicals, and is widely used in cement industry. Please tell me your industry as well as your products, we will give you the corresponding selection rotary valve model and the corresponding configuration.

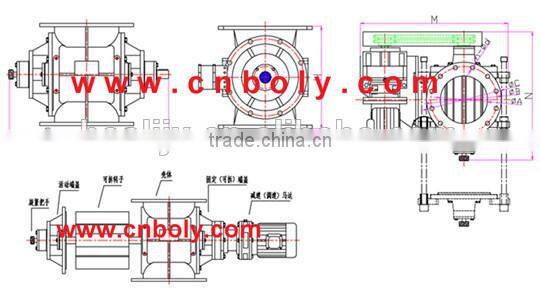

Diameter Type | L/Rev | Structural dimensions(mm) | Speed r/min | Motor (KW) | ||||||||
|
| H | A | B | C | E | F | M | N | n- d |
|
|
DN150 | 4 | 320 | 150 | 240 | 285 | 280 | 300 | 630 | 560 | 8- 22 | 36 | 0.75 |
DN200 | 8 | 370 | 200 | 295 | 340 | 300 | 320 | 680 | 620 | 8- 22 | 36 | 0.75 |
DN250 | 16 | 430 | 250 | 350 | 395 | 325 | 345 | 780 | 680 | 12- 22 | 24 | 1.1 |
DN300 | 24 | 500 | 300 | 400 | 445 | 375 | 395 | 880 | 780 | 12- 22 | 24 | 1.5 |
Working volume(L) | 4L | 8L | 16L | 24L |
Weight(kg) | 70 | 95 | 135 | 215 |
Material | SUS304 | SUS304 | SUS304 | SUS304 |
Output Diameter | 150mm | 200mm | 250mm | 300mm |
Input Diameter | 150mm | 200mm | 250mm | 300mm |
Packing List | Wooden box | Wooden box | Wooden box | Wooden box |
