Home > Products > Slide Switch Series > Voltage Conversion Switch &115-230 Voltage Selector Slide Switch

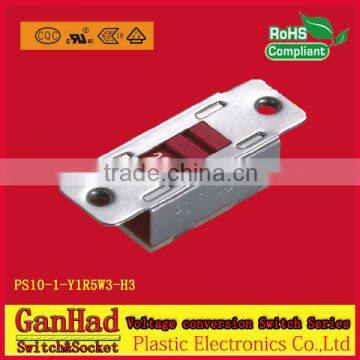

Voltage Conversion Switch &115-230 Voltage Selector Slide Switch
- SHENZHEN OR HONGKONG
- T/T
You May Like
-
Voltage Conversion Switch &115-230 Voltage Selector Slide Switch
-
Hight Current Slide Switch &115-230 Voltage Selector Slide Switch
-
Hight Current Slide Switch &115-230 Voltage Selector Slide Switch
-
Hight Current Slide Switch &115-230 Voltage Selector Slide Switch
-
Hight Current Slide Switch &115-230 Voltage Selector Slide Switch
-
Hight Current Slide Switch &115-230 Voltage Selector Slide Switch
Product Details
| Place of Origin | Guangdong, China | Brand Name | GanHad | |

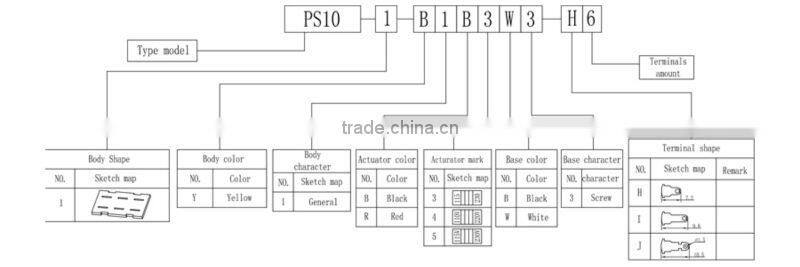

| Model Number | PS10-1-Y1R5W3-H3 | Max. Current | 3A 250V AC | |
| Max. Voltage | 6A 125V AC |
Product Description
Specifications
Certificate UL cUL VDE ENEC CQC ROHSSpecifications:
Rated Load: 3A 250V AC
6A/125V AC
Initial contact resistance: 50mΩ max.
Insulation resistance: 100MΩ
Withstand voltage 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Mechanical life: 6000 cycles
Switch for the environmental protection:
Terminals type: quick contact and soldering
Working Force
Working force: 500±300gf
Main material: actuator PBT
Terminals contact :Brass
...
