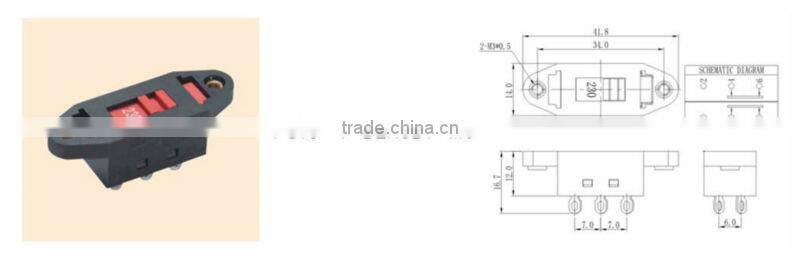

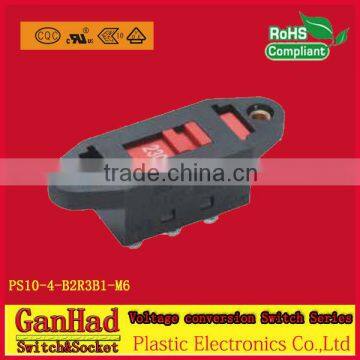

Hight Current Slide Switch &115-230V Slide Switch

Specifications

Hight current Slide Switch &115-230V slide switch

Specifications:

Rated  Load:                               10A  250V  AC

                                                    12A 250V AC

                                                     12A 125V AC

Initial contact resistance:              50mΩ max.

Insulation resistance:                   100MΩ

Withstand voltage                       1500VAC for terminal to terminal 1 minute

                                                    3000VAC for terminal to body 1 minute

Mechanical life:                           6000 cycles

Switch for the environmental protection:

Terminals type:                           quick contact and soldering

Working temperature:                  ≤85°C

Working force:                             550±250gf

Main material:                             Body and actuator: PA66 OR PBT

                                                   Terminals and movable contact :Brass

Shenzhen Ganhad Plastic Electronics Co.,Ltd: Established in 2001, our factory has been

focusing on switch over a decade, our products are mainly to America, Europe, Asia and Middle East.

Application: Our switches are widely used in the fields of small household products, communication

equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc

Engineering: We serve product design, mould development, plastic part injection, hardware part pressing and product automatic assembly

 Quality: We will inspect supplied material, production process and final product, we completely make

 quality control for every pass with inspections including withstand voltage, insulating resistance, conductor,

 dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm,

environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.

Brand: We strive to maintain PRO-SW as our brand and to make professional switch.

The factory detail:

...
