Home > Products > other group > 1.0 Ton Semi-Electric Stacker With Optional Lifting Height (CDSD10)
1.0 Ton Semi-Electric Stacker With Optional Lifting Height (CDSD10)
Negotiable
/ Unit
1 Unit(Min. Order)
- shanghai
- T/T
You May Like
-
Lifting Jack and Hand Pallet Truck With Scale (CBY30)
-
CE Approved 3 Ton Paper Roll Pallet Truck (CBY30)
-
3.0ton Hand Pallet Jack With High Quality (CBY30)
-
Warehouse and Supermaket Clean Machine (DQX5/5A)
-
China High Quality Hot Selling Electric Sweeper Road Cleaner (DQX6)
-
Marshell Brand Chinese Professional Mini Road Sweeper (DQS12A)
Product Details
| Condition | New | Place of Origin | Shanghai, China | |
| Brand Name | Marshell | Model Number | CDSD10 | |
| Type | Powered Pallet Truck | Power Souce | AC Motor | |
| Rated Loading Capacity | 1000KG | Max. Lifting Height | 1740mm | |
| Min. Lifting Height | 80mm | Fork Length | 685mm | |
| Fork Width | 685mm | Overall Dimensions | 2550x790x2070mm | |
| Certification | CE | After-sales Service Provided | Overseas third-party support available |
Product Description

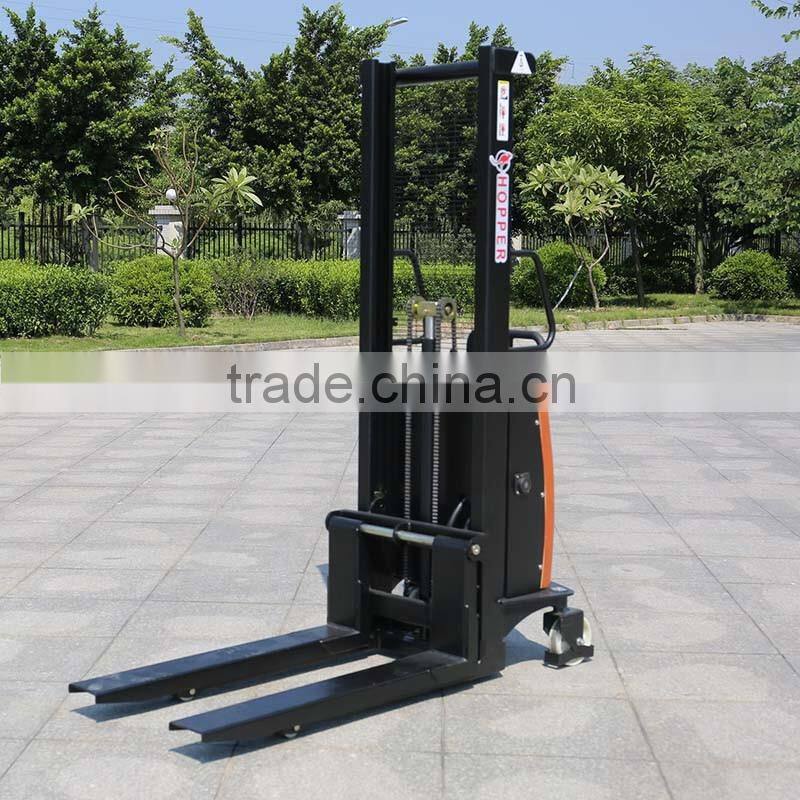

1.0 Ton Semi-Electric Stacker with Optional Lifting Height (CDSD10)
Main configuration
1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs
suitable mode
1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours
TIPS
Does not apply to contain flammable and explosive gas or dust

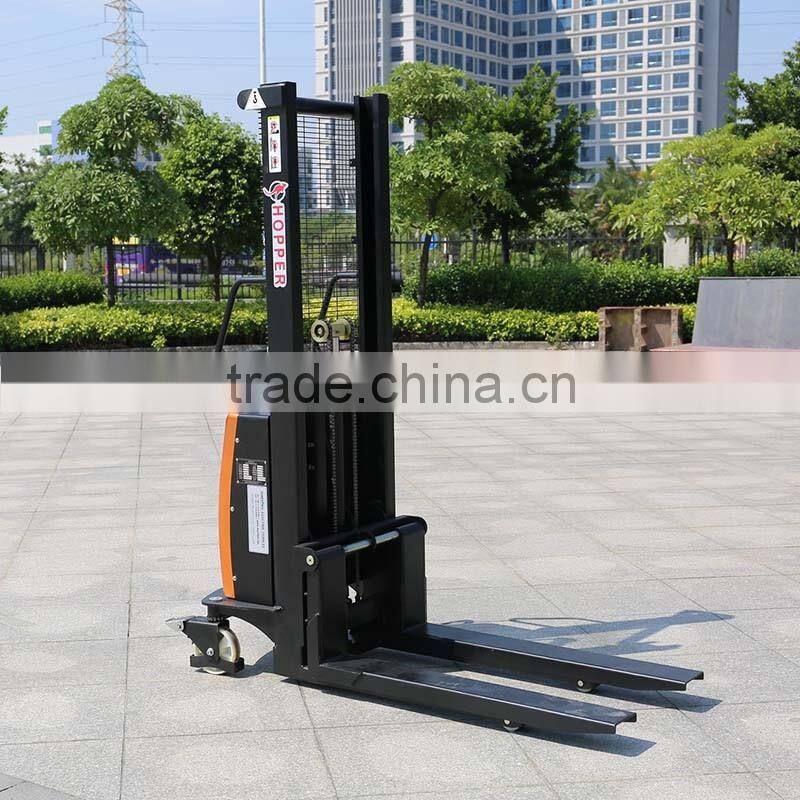

1.0 Ton Semi-Electric Stacker with Optional Lifting Height (CDSD10)
| GENERAL SPECIFICATION: | ||
| Model | CDSD10 | |
| Load capacity/rated load | kg | 1000 |
| Load center distance | C(mm) | 450 |
| Wheelbase | Y(mm) | 760 |
| Service weight (with battery) | kg | 365 |
| Lift height | H3(mm) | 1600 |
| Lowered fork height | H1(mm) | 85 |
| Overall length | L1(mm) | 1740 |
| Overall width | B1(mm) | 760 |
| Turning radius | Wa(mm) | 1350 |
| Fork dimensions | s/e/l mm | 60/150/1100 |
| Width overall forks | b5(mm) | 330-640 |
| Battery volts./ Cap. | V/Ah | 12/100 |
| Container Quantity(1*20FT/40FT/40HQ) | pcs | 14pcs/28pcs/28pcs |

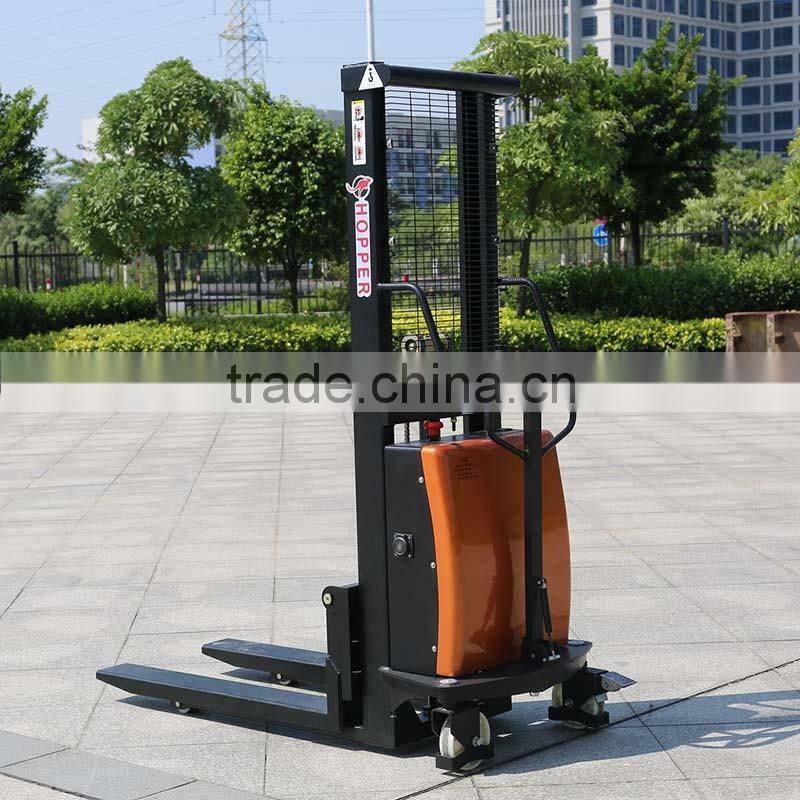

1.0 Ton Semi-Electric Stacker with Optional Lifting Height (CDSD10)
