Home > Products > FUME EXTRACTION SYSTEMS > Smoke Filter For Laser Machinery With CE Certificate
Smoke Filter For Laser Machinery With CE Certificate
Negotiable
/ Unit
1 Unit(Min. Order)
- HongKong CHINA
- Credit Card
You May Like
Product Details
| Condition | New | Efficiency | ≥99.7% | |
| Construction | Box Filter | Filtration Grade | Hepa Filter | |
| Medium Material | Active Carbon | Porosity | 0.01 micron | |
| Place of Origin | Guangdong, China | Brand Name | Pure-Air | |
| Model Number | PA-1000FS | Dimension(L*W*H) | 500*520*1250mm | |
| Weight | 85KG (N.W.) | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Overseas third-party support available |
Product Description
Specifications
1. Air Filter ;2. Application: For laser cutting/engraving/marking& welding equipments to filtrate the fume&toxic gas.
Product Description

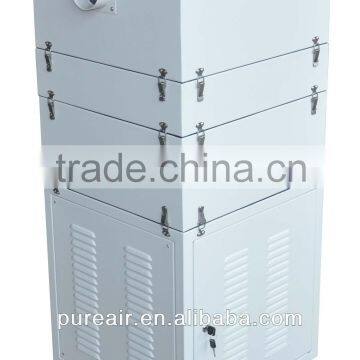

PA-1000FS Smoke Filter For Laser Machinery With CE Certificate
1. Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.
2. Specific sound-absorbing materials reduce operating noise to improve operation efficiency.
3. China high quality blower, low noise. It can effectively absorb particle and extend filter life of less power.
4. PA-1000FS filtration system consist of four parts, they are metal filter, F5 class pre-filter, HEPA main filter and gas filter.
(a). Well-proportioned holes to ensure that large dust particles are trapped on the metal filter, to prevent them block the pre-filter.
(b). F5 class pre-filter comprised by cotton and metal mesh, full-thickness adhesive, can be adsorbed middling particles in the air to avoid main filter is blocked.
(c). Main filter consists of efficient HEPA element, in independent tests, these filters remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
(d). Gas filter layer formed by the chemical materials can effectively remove harmful gases and pungent odor in the air.
5. Filter Data
Filter Elements Data | ||
Item | Technical Data | Remark |
Pre-filter | F5 class | All sticker enclosed. |
Main-filter | F14 class HEPA | Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron. |
Air-filter | Chemical material | Chemical molecular, Oxidant & Active carbon adsorb noxious gas. |
Average filtration rate | ≥99.7% | It will be a little fluctuation according to different materials. |
6. Technical Paremeters
Blower Technical Data | ||
Item | Technical Data | Remark |
Running period | more than 10,000h | One year guarantee |
Max. air flow | 1000m³/h | / |
Input capacity | 750W | Low capacity |
Air pressure | 2300pa | High pressure |
Running sound | ≤65dBA | / |
Input power | 110/220V, 50Hz/60Hz | International standard |
Equipment Data | ||
Item | Technical Data | Remark |
Fume & dust inlet | 150mm | Single fume inlets, include one fume extract tube |
Fresh air outlet | / | Trapezoid hole |
Machine weight | 85KG (N.W.) | Machine with all elements |
Dimension | 500*520*1250mm | Machine size |
Package dimension | 580*600*1400mm | Packed by plywood crate |
