Linux Video Capture Card HDMI Full hd Video Capture Card

FOB Price

US$ 350 - 410 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Video Conference System	Function	Voting
Simultaneous Interpretation	Yes	Place of Origin	Guangdong, China
Brand Name	KATO/OEM	Model Number	HDCA03H

linux video capture card HDMI full hd Video Capture Card

Advanced Features

High-performance DMA transmission
HD input that can be dynamic switched signal source: DVI/HDMI, Component
Compatible with composite video (CVBS), S-Video input signal through the adapter cable
Automatic detection of video formats and effective area
Manually setting effective area, worked as screen cutting and special signal timing
Multi-stage screen zoom function, with 3 different kinds of zoom mode according to the screen length and height.
Support vertical filtering and motion self -adaptive interlacing function
Hardware color conversion, support RGB24,RGB32,YUY2,UYVY,I420 formats
Support color adjustment, can adjust Contrast, Brightness, Saturation, Hue, Gamma; can adjust the Brightness and Contrast of R, G, B separately
Horizontal and vertical reverse function
Firmware can be updated

linux video capture card HDMI full hd Video Capture Card

Dimension	99.77mm x 68.88mm
Host Computer Interface	PCI-Express x1, Low Profile, 200MB/s

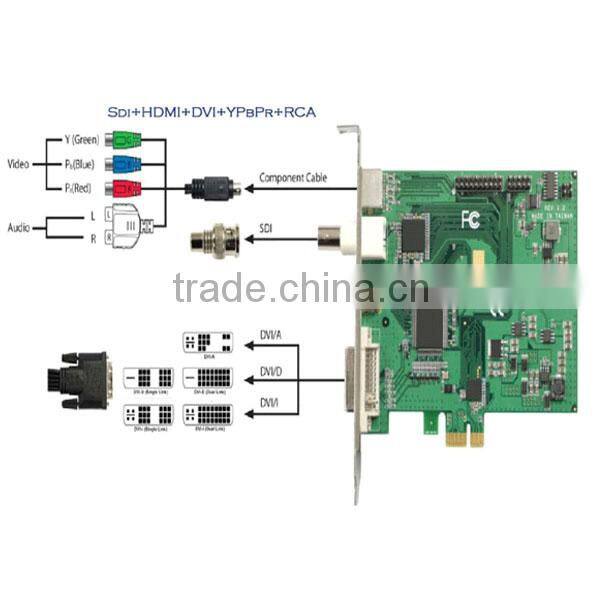

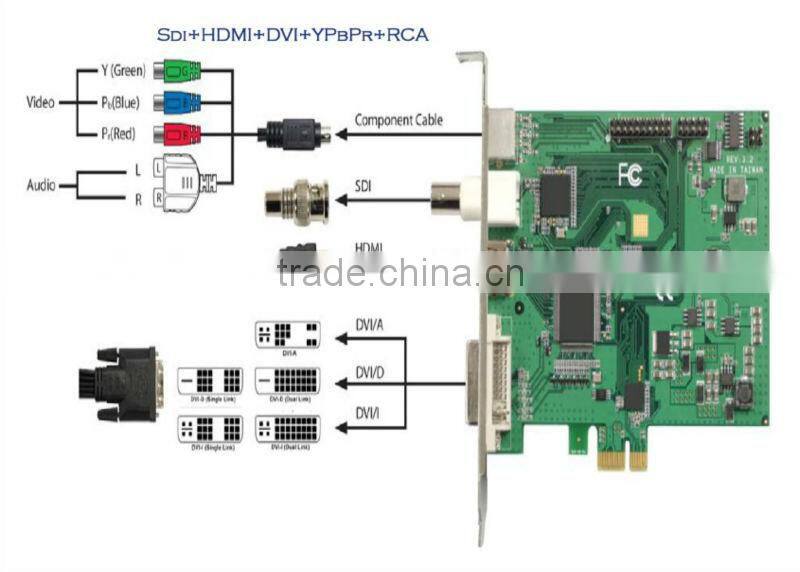

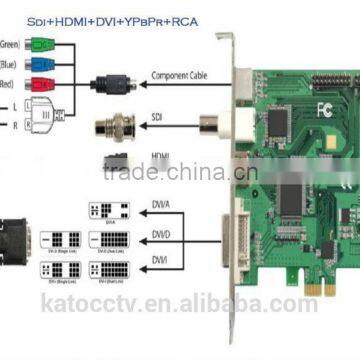

Input	1* HDMI (can switch to DVI) 1* DB9 (Can connect YPbPr ,S-video,CVBS,1CH unbalanced stereo audio line input thought converter cable)
Max. Sampling Rate	CVBS:54MHz (4x Oversampling) HDMI/DVI:225MHz
Memory	128MB DDR2,frequency 160 MHZ, 32bit
Component Input Format	480i,576i,480p,576p,720p,1080i,1080p
DVI Input Format	480i,576i,480p,576p,720p,1080i,1080p
HDMI Input Format	Comply with HDMI 1.3 standard, support 36bit Deep Color
CVBS Input Standard	PAL/NTSC
HD Output Video Format	Resolution:40x30-2048x1536,Frame rate: 1-100 fps,Format:YUY2, UYVY, RGB24, RGB32, I420
SD Output Video Format	Resolution:176x144-768x576,Frame rate: 1-30 fps,Format:YUY2, UYVY, RGB24, RGB32, I420
OS	Support X86 and X64 version: Windows® XP Professional Windows® Server 2003 Windows Vista®, Windows® Server 2008 Windows® 7 Windows® Server 2008 R2
Consumption	<= 8W
Working Temperature	0-50℃
Storage Temperature	-20-70℃
Relative Humidity	5%-90%
