Shenzhen KATO Vision Co., Limited: Shenzhen, Guangdong, China; Main products: Video Conference Camera, Conference System, video-recorded teaching

Home > Products > Keyboard Controller > PTZ Camera Controller Conference Video Camera Keyboard Controller

PTZ Camera Controller Conference Video Camera Keyboard Controller

FOB Price

US$ 180 - 250 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	KATO/OEM
Model Number	KT-K410C

PTZ Camera Controller Conference Video Camera Keyboard Controller

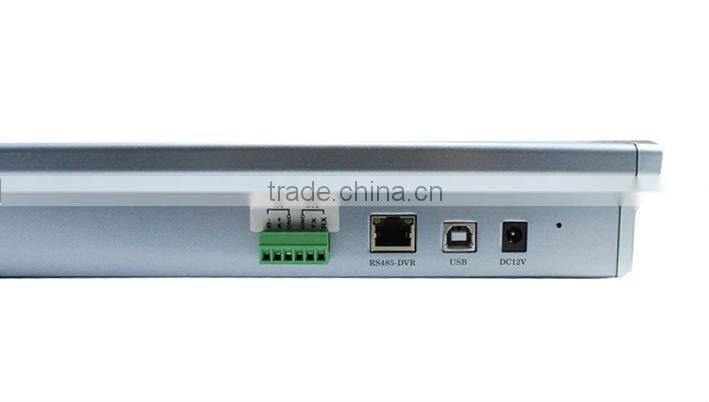

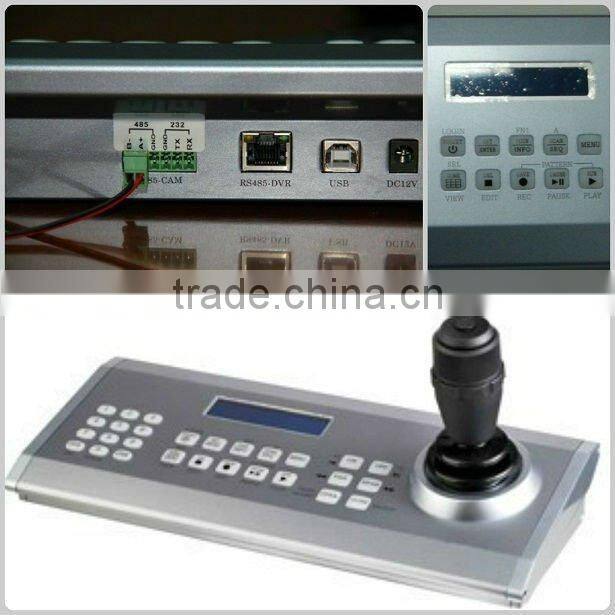

Detailed Images

Product Description

² Unique control code learning function to make revise orders freely.

² Each equipment which connect with RS485 bus can set different protocols and Baud rate individually

² The maximum of RS485 control bus can control 255 adress,128 equipment in parallel at the same time.

² Great Anti-lighting design and Anti-interference ability. The standard transmission distance up to 1200 meters.

² The cascade port can connect15 vice keyboards at maximum.

² Multiple protocols selectable. Specific standard SONY VISCA protocol 9600bps,19200bps.

² Password protection function.

² Keyboard with infinitely variable speed

² 7 video conference cameras cascade control

PTZ Camera Controller Conference Video Camera Keyboard Controller

Name	cctv PTZ keyboard controller Security System Keyboard Controller SONY VISCA Keyboard Controller
Model	KT-K410C cctv keyboard controller
LCD display	Chinese/English
Monitor Control	1-99
Camera Control	1-1024
Joystick	Three Dimensional Left/Right; Up/Down; Zoom
Connection:	Seven D70P cascade control
Lens	Aperture: On/Off; Focus: Far/Near; Zoom: Wide angle/Tele
Camera	Defrost: On/Off; Wiper: On/Off; Auxiliary switch: On/Off;
PTZ Control	Up/Down/Left/Right; Scan limit set; Auto Scan; Pattern Scan, Auto Cruise.
Preset point control	Keep/Change preset point; Parameter set;
Alarm Operation	Arm/Disarm; Status Look Up/Display; Alarm record
DVR control	Control number:99; Control Protocol: up to customers’ demand
Control Protocol	SONY VISCA
Communication Interface:	RS422 and RS485; Rate: 9600bps,19200bps
Condition	Temp: -10~+50,Humidity:≤90%
Power	DC12V
Dimension	380mm(W)×48mm(H)×60mm(D)

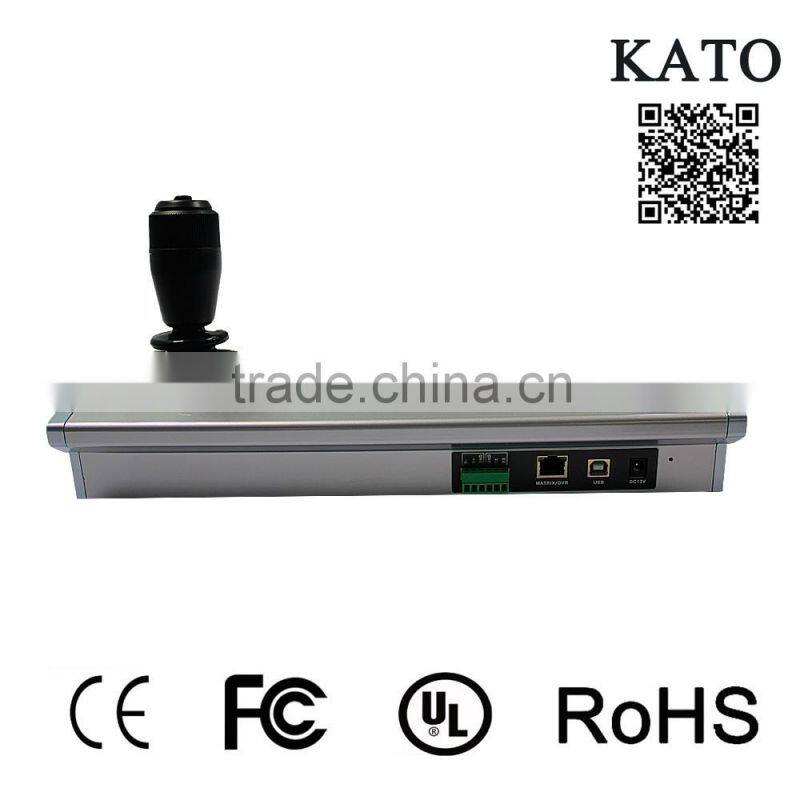

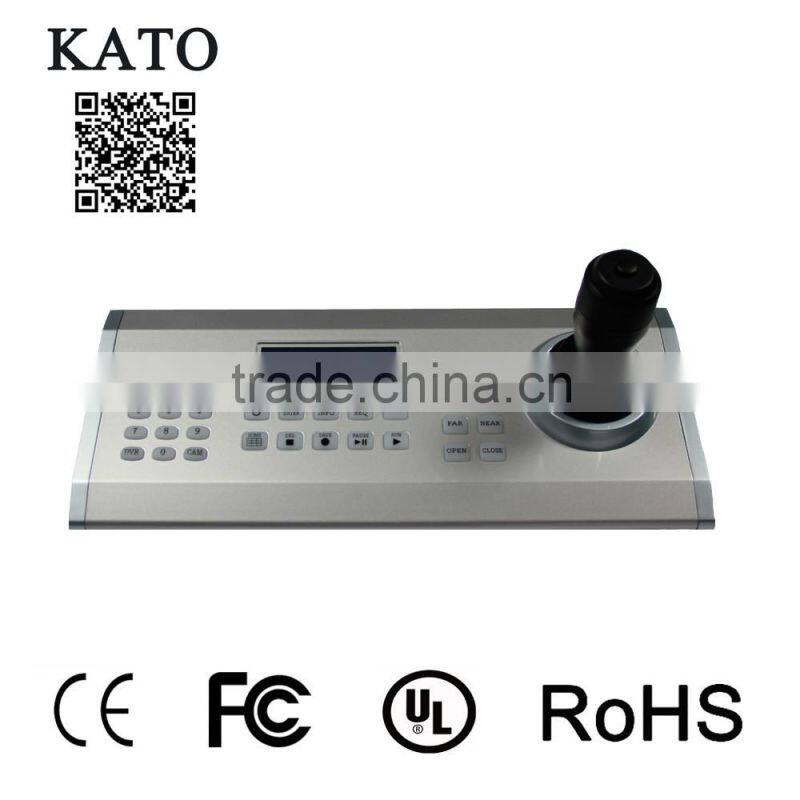

Product Show
