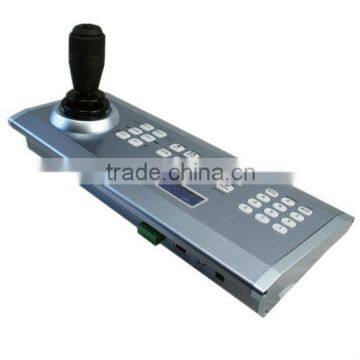

strong 3D metal PTZ keyboard controller for speed dome camera

FOB Price

USD $100 - $250 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Smart 3D USB PTZ Keyboard Controller Remote Control Unit
2.Vandalproof,USB,RS232,485 Bus
3.LCD,Joystick,Pelco P&D,CCTV,DVR

This is the type of innovation and vision that made KATO an earlier market leader in video collaboration.

Make no mistake-we are seeing KATO 2.0

Intelligent Universal 6 axis USB PTZ Keyboard Controller

Features:

- Unique control code learning function to make revise orders freely.

- Each equipment which connect with RS485 bus can set different protocols and Baud rate individually

- The maximum of RS485 control bus can control 255 adress,128 equipment in parallel at the same time.

- Great Anti-lighting design and Anti-interference ability. The standard transmission distance reaches 1200 meters.

- The cascade port can connect15 vice keyboards at maximum.

- Multiple protocols selectable. Specific standard SONY VISCA protocol 9600bps,19200bps.

- Password protection function.

- Keyboard with infinitely variable speed

- 7 video conference cameras cascade control

Specification:

Name	Universal Control Keyboard
Model	KT-K410C
LCD display	Chinese/English
Monitor Control	1-99
Camera Control	1-1024
Joystick	Three Dimensional Left/Right; Up/Down; Zoom
Connection	Seven D70P cascade control
Lens	Aperture: On/Off; Focus: Far/Near; Zoom: Wide angle/Tele
Camera	Defrost: On/Off; Wiper: On/Off; Auxiliary switch: On/Off;
PTZ Control	Up/Down/Left/Right; Scan limit set; Auto Scan; Pattern Scan, Auto Cruise.
Preset point control	Keep/Change preset point; Parameter set;
Alarm Operation	Arm/Disarm; Status Look Up/Display; Alarm record
DVR control	Control number:99; Control Protocol: up to customers’ demand
Control Protocol	SONY VISCA
Communication Interface:	RS422 and RS485; Rate: 9600bps,19200bps
Condition	Temp: -10~+50,Humidity:≤90%
Power	DC12V
Dimension	380mm(W)48mm(H)60mm(D)
