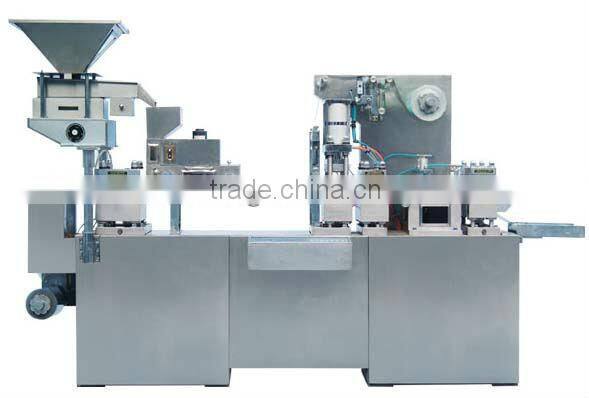

DPP250A/250D AL/PL Blister Packing Machine
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | sunhang | |
| Model Number | DPP250A/250D | Dimension(L*W*H) | 2800x800x1900 mm | |
| Weight | 1500KGS | Certification | GMP | |
| Condition | New |
Product Description
Specifications
This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.DPP250A/250D AL/PL Blister Packing Machine
Performance and Characteristics:
Variable Frequency Speed Regulating PC Circuit Control Panel.
Adjustable travel adopts manipulator grip equipped with inching device, which has accurate synchronization.
Vibrating-type feeder with full-automatic blanking process.
Mould spout location is convenient for replacing mould.
With air cushion heat-sealing,the upper and lower checkers ensure the effect of heat-sealing.
Main Technical Specifications:
Punching Frequency: 20-40times/min
Punching Plate: 4plates/time
Adjustable Scope of Travel: 30-120mm
Packing Efficiency: 4800-9600plates/h
Max Forming Area and Depth245x112x18mm
Total Power of Electric Source: Three-Phase Four-Wires, 380V 50Hz 5.5Kw
Medical PVC: 250x0.25(0.15-0.5)mm
PTP: 250x0.02mm
Air-compressor: ≥0.22m3/min
Pressure: 0.5-0.7Mpa
Overall Size: 2800x800x1900mm
Weight: 1500kg

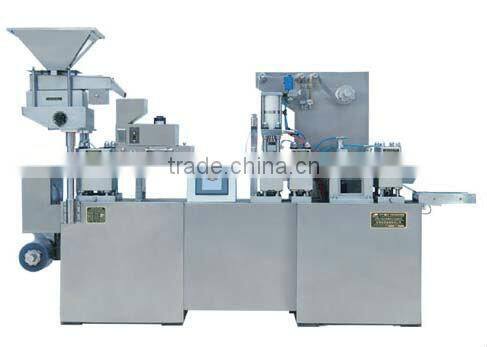

DPP250A
The performance and characteristic are the same as DPP-250A.The upgraded product is equipped with German Siemens, PLC data processing center, temperature expansion module, man-machine interface control and cursor register sets. Being high-grade, it is the replacing product for pharmaceutical plant.
The main technical parameters are the same as 250A.
