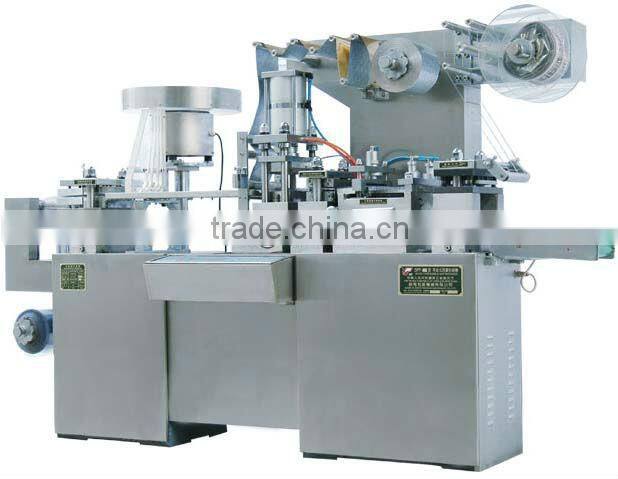

DPP140C/250C AL/PL Blister Packing Machine
- Shanghai
- Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | Brand Name | sunhang | |
| Model Number | DPP140C/250C | Dimension(L*W*H) | 2800x800x1900 mm | |
| Weight | 1500KGS | Certification | GMP | |
| Condition | New |
Product Description
Specifications
This machine is applied to Al-Pl, hard Al blister packing, such as capsules and tablets, sugar-coated tablets, small hard wares.DPP140C/250C AL/PL Blister Packing Machine
Performance and Characteristics:
Variable Frequency Speed Regulating, PC Circuit Control Panel.
Adjustable travel adopts manipulator grip equipped with inching device, which has accurate synchronization.
With cylinder heat-sealing, the upper and lower checkers ensure the effect of heat-sealing.
Mould spout location is convenient for replacing mould.
Waste Automatic Recovery Device.
DA vibrating disk feeder, which is suitable for feeding breakable pills and milk, pills with dust on surface.
Main Technical Specifications:
Punching Frequency:20-40times/min
Punching Plate: 2-3plates/time
4plates/time(DPP250C)
Adjustable Scope of Travel: 30-120mm
Packing Efficiency: 4800-7200plates/hour
4800-9600plates/hour (DPP250C)
Max Forming Area and Depth: 140x110x18mm
245x112x30 mm (DPP250C)
Specifications of Packing Material:
Medical PVC: 150x0.25(0.15-0.5)mm
250x0.25(0.15-0.5)mm (DPP250C)
PTP: 150x0.02 mm
250x0.02 mm (DPP250C)
Air-compressor: ≥0.15m3/ min; 0.22m3/ min (DPP250C)
Pressure: 0.5-0.7Mpa
Overall Size: 2200x750x1650mm
2800x800x1900 mm (DPP250C)
Weight: 1500kg; 1500kg (DPP250C)
