ZH-98/DKB170/ZX550Boxing/Membrane Tie/Box Up Linkage Line
- Shanghai
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Condition | New | Capacity | 3600-6000bottles/h (3000bottles/h | |
| Control Mode | Full Automatic | Place of Origin | China | |
| Brand Name | sunhang | Model Number | ZH-98/DKB170/ZX550 | |
| Dimension(L*W*H) | 1700X1200X1600MM | Weight | 12000KGS | |
| Certification | GMP |
Product Description

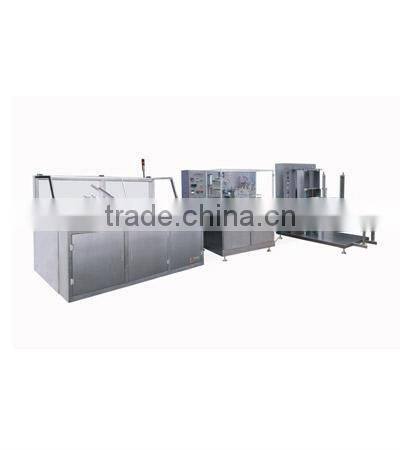

ZH-98/DKB170/ZX550Boxing/Membrane Tie/Box Up Linkage Line
This machine is suitable for cardboard case packaging of blister sheet package, food, cosmetic etc. It consists of direction folding(1-4folds) and feeding equipment, cardboard case forming and feeding, batch number printing, sealing of case tongues at both ends etc. The whole encasing process is finished automatically.
Main parameter:
It adopts mechanical drive, frequency speed regulation, and automatic stopping if overloaded. Controlled by PLC, this machine features automatic detection of un-encased medicine plate and waits for plate to be added.It is also equipped with finished product counting and error displaying functions It can be used connecting with blister packing machine.
DKB170 Type Fully Automatic Membrane Tie Machine which a new high engrgy savingand material-sabing tie machine equipmet, is used in pharmacy industry and other small goods. Comparing with the presently domestic hot shrink packing machine and the three
dimensional close film wrapper, the machine, carried partial tie up packing of the paper carton or the regular shape object, by the belt-shaped film, has extremelyremarkable energy-saving and the material-saving effect. Because it does not have to heat up and shrink packing,does not have to temperaturedecrease regulating control of the production workshop.Enable it to have the dual energy-saving effect. It is estimated that this machine may save the electricity consume 90% (contrast with hot shrink machine). It is the belt-shaped partial bunch of package to be possible to save the packing material about 50% , and has solved the hot shrink packing machine film
conrrugation and the outward appearance ataxia problem, improving the grade of the after packed products (This machine can be connected with Automatic Boxing Machine).
ZX550 Type Automatic boxin machine
absorgs and digests the domestic and international advanced technology, succeeding in developing a new generation of automatic boxing equipment. This machine applicate in the pharmacy packing industry, loaded the single box or the package of box into the bigpaper box after the conveyor belt. This machine is usedfor connecting production of the Fully Automatic Membrane Tie Machine that is produced by ourselves, thus improved the automatic degree of the production Line, and improves the grade of the whole machine.
Boxing machine performance and characteristic:
Machinery drive,Variable Frequency Speed Regulating, Protection of automatic stop when the machine is over loading.Control with PLC process,automatic inspection of aiming at the medical former and specification page-lack. automatic waiting when the machine hasn't medical former. Having the equipments of finish products' count and display intelligent failure.
Main Technical Parameters:
Eecasing speed 30-100boxes/min
Cardboard case dimension(L x W x H) 55-180 x 15-50 x 30-85mm
Machine dimension((L x W x H) 1700 x 1200 x 1600 mm
Direction size 130-170 x 150-240mm
Motor power 1.5KW
Air compressed 0.6mpa
Machine weight(N.W) 1.2T
Main Technical Parameters:
Power Supper 220V 50Hz
Power 0.8kw
Max.Dimesions 130 ×130 × 200mm
Mini.Dimesions 85× 55×80mm
Production Capactity 9 bags/min(ten boxes)
Air Pressure 0.5-0.6MPa
Dimensions 1780×780×1500mm
Weight 350kg
Main Technical Parameters:
Power Supper 220V 50Hz
P ower 0.025kw
Max. Box Dimesions 550x500x500mm
Mini. Box Dimesions 250x250x300mm
Production Capactity 1 box/4mins
Air Pressure 0.5-0.6Mpa
Dimensions 2100x1000x1600mm
Weight 250kg
