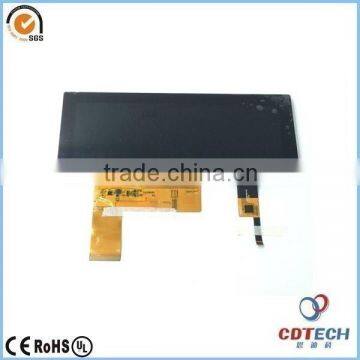

Medical equipment TFT and PCAP 6.5 inch Bar-type LCD TFT Monitor Quality Choice
- 500000 Piece / Pieces per Month
- Hong Kong SAR
You May Like
-
DST bonding 6.5inch RGB interface hd TFT LCD with CTP touch panel display
-
I2C CTP interface 6.5 Inch WVGA 800*320 resolution TFT industrial LCD Module panel
-
Hot seller 6.5 TFT LCD hd high resolution 800*320touch screen lcd with CTP
-
CTP 6.5 inch TFT standard size LCD touch module with PCAP
-
12.3 inch touch screen kiosk custom lcd and touch screen advertising player
-
12.3 inch 1920x720 lcd touch screen full viewing angle sunlight readable IPS LCD module
Product Details
| Place of Origin | Guangdong, China | Brand Name | CDTech | |
| Model Number | S065WV03-CT2 | Type | Standard |
Product Description
Feature | Spec | |
Characteristics | Size | 6.5 inch TFT with PCAP |
Resolution | 800(horizontal)*320(Vertical) | |
Interface | RGB-24bit | |
Connect type | Connector | |
Color Depth | 16.7M | |
Technology type | a-Si | |
Display Spec. Pixel pitch (mm) | 0.192X0.1805 | |
Pixel Configuration | R.G.B. Vertical Stripe | |
Display Mode | Normall white | |
LCD Driver IC | HX8264-D,HX8664-B | |
| CTP Interface | I2C | |
Viewing Direction | 12 O'clok | |
| Surface treatment | HC | |
Mechanical | LCM (W x H x D) (mm) | 174.92*78.86*5.95 |
Active Area(mm) | 154.08*57.28 | |
With /Without TSP | With CTP | |
Weight (g) | TBD | |
LED Numbers | 21 LEDs | |
Drawing and Images show
Other images show
Packaging
1. Put module into tray cavity.
2. Tray stacking .
3. Put 1 cardboard under the tray stack and 1 cardboard above.
4. Fix the cardboard to the tray stack with adhesive tape.
5. Put the tray stack into carton.
6. Carton sealing with adhesive tape.
Shipping
CDTech Electronics was established in 2009, is a hightech company who focus on the LCD R & D, manufacturing and selling. We can Provide professional, perfect lcd solutions to customers.
Our LCD products are widely applied to telecommunications, Medical area, industrial control area, consumer electronics, automotive electronics and many other fields. We have professional R & D team, who can develop, design and customize all kinds of LCD/LCM for customers, OEM and ODM are very welcome.
We can guarantee world advanced technology LCD/LCM manufacturing workshop, providing the high quality and efficient services and quick feedback. We have been establishing good relationship with Philips, Devilbiss, Midea Group, CHIGO Group, Harman Kardon, ABB, Micronet etc. Our main agents in France, Italy, Taiwan and other brand industrial LCD, size is from 1.77 ” to 42” . According to customers demand,we can also provide a variety of LCD panel accessories : LCD driving board, touch screen, inverter, HMI ,and so on.
Our aim is to assure the top quality and to serve our customers heart and soul. With the continuous competitiveness, it is our mutual goal to look for a path bette
Application
| Application of TFT LCD Display | |
| Consumer Products | Camera,DVD player,toy,gam player,etc |
| Technical Equipment | Elevator controller,Industrial machine,etc |
| Office Automation | Printer,scanner,attendance machine,fax machine,etc |
| Home Appliances | Air-condition display,refrigerator,electric cooker,video doorbell,etc |
| Automobile | GPS,video player,speedometer,audio broadcast,etc |
| IT Products | Camera,handheld digital video,projector,media play,tablet PC,etc |
| Medical Equipment | Ultrasound machine,therapeutic equipment, Blood pressure meter,etc |
All the descriptions correspond with the goods
Contact us
CDTech (H.K.) Electronics Limited
Website:
Tel: 86-755-23032206
Fax: 86-755-23032209
E-mail: sales@CDTechHK.com
Any questions pls do not hesitate to contact me anytime!!
FAQ:
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for
your second confirmation. if sample is ok, finally we will go to mass production.
More information needed, please feel free to contact me. Thanks for your visiting and wish we could cooperate soon.
The best services will be assured at soon!!!
