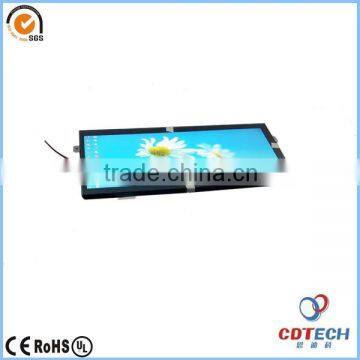

12.3 inch lcd touch screen for vending machine

FOB Price

US$ 150 - 500 / Piece

1 Piece(Min. Order)

Port HK
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	CDTech
Model Number	S123WU01-264		Type	TFT

Product Description

Feature	Item	12.3 inch lcd touch screen for vending machine
Characteristics	Size	12.3 inch
	Resolution	1920(Horizontal)*720(Vertical)
	Interface	LVDS
	Connect type	Connector
	Color Depth	16.7M
	Technology type	a-Si
	Display Spec. Pixel pitch (mm)	0.05075(H)×RGBx0.15225(V)
	Pixel Configuration	R.G.B. Vertical Stripe
	Display Mode	Normally Black
	Driver IC	ILI6480
	Surface Treatment	3H
	Viewing Direction	ALL
Mechanical	LCM (W x H x D) (mm)	308.1134.866.5
	Active Area(mm)	292.32 x109.62
	With /Without TSP	Without
	Weight (g)	TBD
	LED Numbers	80 LEDs

Products Drawing:

CDTech Company

CDTech Products Pictures

CDTech Product list

P/N	Size	Resolution	P/N	Size	Resolution
S032HV04	3.2"	320*480	S035VR14-T	3.5"	480*640
S035Q01	3.5"	320*240	S035HV09	3.5"	320*480
S035Q01-T	3.5"	320*240	S035HV09H	3.5"	320*480
S035Q03-T	3.5"	320*240	S035HV12	3.5"	320*480
S035Q08-T	3.5"	320*240	S035HV13	3.5"	320*480
S035Q09	3.5"	320*240	S035HV13H	3.5"	320*480
S035Q09-CTP	3.5"	320*240	S039WQ01	3.9"	480*128
S035Q13-T	3.5"	320*240	S040WV04	3.95"	480*800
S035Q24	3.5"	320*240	S042WQ01	4.2"	240*432
S035LQNC111	3.5"	320*240	S043WQ02	4.3”	480*272
S035LQNC111-CT	3.5"	320*240	S043WQ07	4.3”	480*272
S035LQNC211	3.5"	320*240	S043WQ08	4.3”	480*272
S035LQNC116	3.5"	320*240	S043WQ09	4.3”	480*272
S035V01	3.5"	480*640	S043WQ018HB	4.3”	480*272
S035V01-T	3.5"	480*640	S043WQ15	4.3”	480*272
S035V03	3.5"	480*640	S043WQ21	4.3”	480*272
S035V03-T	3.5"	480*640	S043WQ24	4.3”	480*272
S035V04	3.5"	480*640	S043WQ24H	4.3”	480*272
S035V04-T	3.5"	480*640	S043WQ26H	4.3”	480*272
S035VR10	3.5"	480*640	S043WQ26H-CT6	4.3”	480*272
S035VR10-T	3.5"	480*640	S043WQ28	4.3”	480*272

P/N	Size	Resolution	P/N	Size	Resolution
S043WQ36H	4.3”	480*272	S050WV43-CT5	5.0"	800*480
S043WQ40H	4.3”	480*272	S056V01	5.6"	640*480
S043WQ49	4.3”	480*272	S057Q01	5.7"	320*240
S043WQ55	4.3”	480*272	ma	5.7"	640*480
S043WQ56	4.3”	480*272	S057V02	5.7"	640*480
S043WQ56H	4.3”	480*272	S057V03	5.7"	640*480
S043WQ56HS	4.3”	480*272	S058WV01	5.8"	800*320
S043WV07	4.3”	800*480	S060FW03	6.0"	480*854
S046WV01	4.6"	800*320	S065WV01	6.5"	800*320
S046WV02	4.6"	800*320	S065WV02	6.5"	800*320
S046WV03	4.6"	800*320	S070WV20	7.0"	800*480
S050WQ06	5.0"	480*272	S070WV83 V.1	7.0"	800*480
S050WQ06-T	5.0"	480*272	S070WV83 V2.0	7.0"	800*480
S050WQ06-CT	5.0"	480*272	S070WV84	7.0"	800*480
S050WQ07	5.0"	480*272	S070WV85-CT8	7.0"	800*480
S050WV02	5.0"	800*480	S070WV92	7.0"	800*480
S050WV06	5.0"	800*480	S070WV94	7.0"	800*480
S050WV07	5.0"	800*480	S070WV94H	7.0"	800*480
S050WV43	5.0"	800*480	S070WV95/97	7.0"	800*480
S050WV44	5.0"	800*480	S070WV98	7.0"	800*480
S050WV44H	5.0"	800*480	S070WV101	7.0"	800*480
S050WV43-T	5.0"	800*480

P/N	Size	Resolution	P/N	Size	Resolution
S070WS03	7.0"	1024*600	S101WS09	10.1	1024*600
S070WS08	7.0"	1024*600	S101WX06	10.1	1280*800
S070WS12	7.0"	1024*600	S101FH01	10.1	1280*800
S070WS14	7.0"	1024*600	CDT101PUW1-A00/S101WU01	10.1	1920*1200
S070WX02	7.0"	800*1280	S091WX02	10.1	1920*480
S070WU01	7.0"	1200x1920	S104V01	10.4"	800*600
S072WX01	7.2	1280*384	S104SX01	10.4"	800*600
S080SV01	8.0"	800*600	S104SX02	10.4"	800*600
S080SV03H	8.0"	800*600	G104VN01 V1	10.4"	640*480
S080SV04H-L	8.0"	800*600	S104XG01	10.4"	1024*768
S080SV05H	8.0"	800*600	S104XG02	10.4"	1024*768
S080XG04	8.0"	1024*768	S104SV05H	10.4"	800*600
S080XG04H V2	8.0"	1024*768	S088WX03	10.8	1280*320
S072WX02	8.2	1280*384	S088WU02	11.8	1920*480
S088WX01	8.8	1280*320	S121SDS01	12.1"	800*600
S090WV02	9.0"	800*480	S121WX03	12.1"	1280*800
S091WX01	9.1	1920*480	S123WU01	12.3"	1920*720
S072WX03	9.2	1280*384	S150XG01	15.0"	1024*768
S088WX02	9.8	1280*320	S170XG01	17"	1024*768
S101WS07	10.1	1024*600	S190XG01	19"	1024*768
S101WS08	10.1	1024*600	M220ZGE-L20	22"	1680*1050

Our Workshops

The Exhibition that we attend

FAQ

Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.

Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.

Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.

Q: 4.How long is the warranty?
A:12 Months.

Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.

Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.

Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for

your second confirmation. if sample is ok, finally we will go to mass production.

For more detailed information about our TFT LCD

module, please feel free to contact us,

Tel: + 86-755-23032202-858
Mob: +8618588414549
Skype: xtf.angela

Web: /
