Condition	New		Place of Origin	Guangdong, China
Brand Name	yason		Model Number	TDP1.5
Type	Single Punch		Production Capacity	4500-6000pcs/H
Max. Pressure(KN)	15KN		Max. Tablet Thickness(mm)	6mm
Max. Tablet Diameter(mm)	12mm
Weight	70kg
Dimension(L*W*H)	570x380x630mm		Certification	No have
After-sales Service Provided	No overseas service provided

Specifications

1.Die Customized accepted
2.High Quality
3.Aluminium Alloy Material
4.One Year Warranty
5.One Round Die for Free

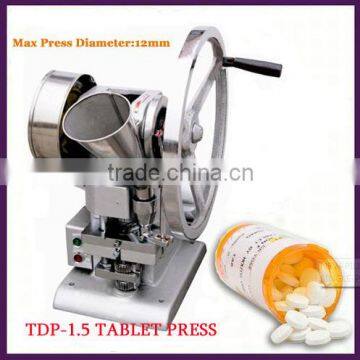

Brand New TDP-1.5 single punch tablet press pill press

tablet machine with 1 set free round die





    Brand new,Good quality



Hot sell single punch tablet press



one of the best single punch tablet press machine



No special forms to fill out



A powerful electric motor and can also be hand operated



excellent,adaptable,easy to use,easy maintenance,small size,light weight



Can produce up to 4000-6000 tablets per hour



Larger Diameter Tablets up to 12mm





  EXPRESS MAIL SHIPPING with TRACKING NUMBER

♣Introduction♣



A lot of the branded vitamin tablets on the high street have unnecessary additives and supplements that you just don’t need. This press allows you to mix the vitamins and supplements that you require for your exact diet and convert them into convenient pills.Maybe you are considering setting up a small business selling vitamin, weight loss or herbal tablets. If so this is the right press for you. It is able to produce up to 5400-6000 tablets per hour, using a maximum presser of 15KN. It will run for hours continuously producing identical tablets time after time, giving your business a professional look.



TDP-1.5 type tablet press,able to make powder and granular material compressed into acircular shaped tablet.Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units.The machine performance is excellent,adaptable,easy to use,easy maintenance,small size,light weight.Without electricity may could also be hand-pressed.A large pressure of tablet press machines,filling a large depth,thus the size range of tablet is large,able to adapt to the pharmaceutical industry to produce a variety of tablet medicine requirements and other industry requirements of produce similar products,deeply welcomed by customers of various industries.



                         ♣Technical Parameters♣

Voltage	110V or 220V or customized
Maximum pressure	15kn
Maximum diameter	12mm
Maximum thickness	6mm
Output	4000-6000 pieces/h
Power	220V 550W,1400 rev/min
Dimension	570x380x630mm
Weight	70kg



 ♣Feature♣



This great little machine is designed for pressing tablets from various granular materials for use in pharmaceuticals,various chemicals,food products and a host of other uses. Typically it can be found in hospitals,science research institutions and is used for trial manufacturing in labs to produce small to medium production amounts of different kinds of tablets. Up to 6000 tablets per hour can be achieved. It features a small desktop type press, a powerful electric motor and can also be hand operated. The depth of the filling material, tablet pressure and thickness of the tablets is easily adjusted. This machine comes complete with 1 set of punch and die included.

Following are the TDP-1.5 single tablet press's amazing functions:

• Able to make powder and granular material compressed into a circular shaped tablet
• Can be widely used in pharmaceutical,chemical plants,hospitals and scientific research units
• Larger Diameter Tablets up to 12mm
• Presses both Round and Irregular Tablets
• Larger Motor and Compression Force
• Adaptable,easy to use,easy maintenance,small size,light weight
• It will run for hours continuously producing identical tablets time after time
• Friendly Support and Prompt Services
• No special forms to fill out
• Up to 6000 tablets per hour can be achieved,using a maximum presser of 15KN
• A powerful electric motor and can also be hand operated



♣How to use♣



1.Before connected to electrical power,the motor should be connected to ground to ensure safety.First demolition the V-belt,connected to electrical power,starting the motor,observe motor rotation direction whether correct(Motor shaft rotation direction should be with the protective cover or hand-wheel in the opposite direction of the arrow).If the rotation in the wrong direction,another separate cable connection.Then make V-belt installed.



2.Unloading punch dies and adjustment of tablet press. a,Installation punch dies.b,Putting out the adjustment. c,The adjustment of filling the depth(tablet weight adjusted). d,Pressure adjustment. e,die demolition.









                          ♣Item Units and Pictures♣

What you will get



• 1 X Single punch tablet press machine
• Operation Manual will be sent by e-mai
