Home > Products > Pneumatic Booster Pump > G255-2 air driven liquid pump

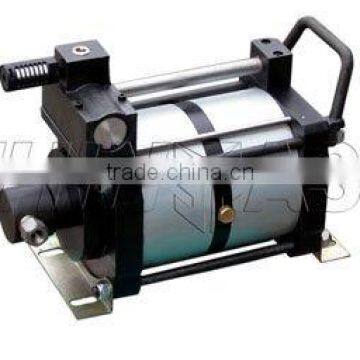

G255-2 air driven liquid pump
- 600 Piece / Pieces per Month
- Qingdao or Beijing
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SHINEEAST | |
| Model Number | G255-2 | Theory | Reciprocating Pump | |
| Structure | Piston Pump | Usage | Air Pump | |
| Standard or Nonstandard | Standard | Pressure | High Pressure |
Product Description
Specifications
Air Driven Hydraulic PumpRugged-double drive heads
Pressure range:208~640Mpa
Four ratios available
ISO9001
G-2 series air driven liquid pumps are high pressure reciprocating plunger pumps of single acting,double air drive heads model. Air drive pressure from 1bar(14.5 psi) to 8bar(116 psi) maximum.
Key features
- One model available in 4 ratios
- Rugged construction
- Super high pressure available
- No electricity required and explosion proof
- Aluminum bodies and wetted materials of carbon steel or stainless steel
- High quality seals, long service life available
- No need for air line lubrication
- Rustproof and beautiful generous in blue colors with oxidation treatment applying to the aluminum components
- G-2 Series pumps come standard with side inlet
Technical parameters
Type | Pressure Ratio | MAX Outlet Pressure (bar)* | Connection: Inlet A | Connection: Outletlet B | Flow (L/min) |
G130-2 | 260:1 | 2080 | 3/8” | 3/8” | 1.29 |
G175-2 | 350:1 | 2800 | 3/8” | 3/8” | 0.94 |
G255-2 | 510:1 | 4080 | 3/8” | 3/8” | 0.65 |
G400-2 | 800:1 | 6400 | 3/8” | 3/8” | 0.42 |
Note:All data based on air drive pressure of 6 bar. *at drive air of 8 bar.
Net weight: 16.5kgs
Please consult us for printable dimensional drawings and performance charts for G-2 series pumps sized to your specific application parameters.
G-2 series air driven liquid pumps are high pressure reciprocating plunger pumps of single acting,double air drive heads model. Air drive pressure from 1bar(14.5 psi) to 8bar(116 psi) maximum.
Key features
- One model available in 4 ratios
- Rugged construction
- Super high pressure available
- No electricity required and explosion proof
- Aluminum bodies and wetted materials of carbon steel or stainless steel
- High quality seals, long service life available
- No need for air line lubrication
- Rustproof and beautiful generous in blue colors with oxidation treatment applying to the aluminum components
- G-2 Series pumps come standard with side inlet
Technical parameters
Type | Pressure Ratio | MAX Outlet Pressure (bar)* | Connection: Inlet A | Connection: Outletlet B | Flow (L/min) |
G130-2 | 260:1 | 2080 | 3/8” | 3/8” | 1.29 |
G175-2 | 350:1 | 2800 | 3/8” | 3/8” | 0.94 |
G255-2 | 510:1 | 4080 | 3/8” | 3/8” | 0.65 |
G400-2 | 800:1 | 6400 | 3/8” | 3/8” | 0.42 |
Note:All data based on air drive pressure of 6 bar. *at drive air of 8 bar.
Please consult us for printable dimensional drawings and performance charts for G-2 series pumps sized to your specific application parameters.
