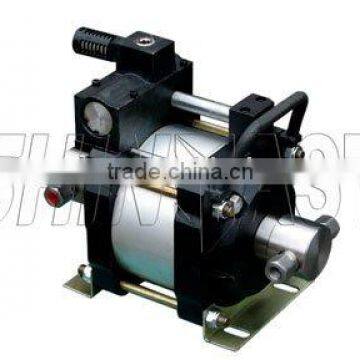

GD175 air driven hydraulic pump
Negotiable
/ Piece
1 Piece(Min.Order)
- 1500 Piece / Pieces per Month
- Qingdao or Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | SHINEEAST | |
| Model Number | GD175 | Theory | Reciprocating Pump | |
| Structure | Piston Pump | Standard or Nonstandard | Standard | |
| Pressure | High Pressure |
Product Description
Specifications
Air Driven Hydraulic PumpDouble acting-high flow
Pressure range:4.8~320Mpa
Twelve ratios available
Best price,high quality
- GD series air driven liquid pumps are high pressure reciprocating plunger pumps of double acting,single air drive head model. Air drive pressure from 3bar(43.5 psi) to 8bar(116 psi) maximum.
- They are characterized by the same features as the G series pumps with single acting, single air drive head , but they have less pulsations and deliver approx. 50 % more flow.Provided for operating pressures up to3,200 bar(46,400 psi).The same with G series,they are suitable for application with high pressure requirements.
Key features
- One model available in 12 ratios
- Double acting for efficiency operation
- Compatibility with a variety of liquids
- Aluminum bodies and wetted materials of carbon steel or stainless steel
- High quality seals, long service life available
- Rustproof and beautiful generous in blue colors with oxidation treatment applying to the aluminum components
- Robust, reliable, compact and easy to maintain proven design
- No need for air line lubrication
- Wide range of pressure ratios to meeting with different requirements
- GD Series pumps come standard with side inlet
Technical parameters
Type | Pressure Ratio | MAX Outlet Pressure(bar)* | Connetion: Inlet A | Connection: Outlet B | MAX Flow (L/min) |
GD6 | 6:1 | 48 | 1" | 3/4" | 48.60 |
GD10 | 10:1 | 80 | 1" | 3/4" | 30.61 |
GD16 | 16:1 | 128 | 1" | 3/4" | 19.59 |
GD28 | 28:1 | 224 | 1/2" | 3/8" | 11.02 |
GD40 | 40:1 | 320 | 1/2" | 3/8" | 7.65 |
GD64 | 64:1 | 512 | 1/2" | 3/8" | 4.89 |
GD80 | 80:1 | 640 | 1/2" | 3/8" | 3.96 |
GD100 | 100:1 | 800 | 3/8" | 3/8" | 3.13 |
GD130 | 130:1 | 1040 | 3/8" | 3/8" | 2.4 |
GD175 | 175:1 | 1400 | 3/8" | 3/8" | 1.76 |
GD255 | 255:1 | 2040 | 3/8" | 3/8" | 1.22 |
GD400 | 400:1 | 3200 | 3/8" | 3/8" | 0.78 |
