Containerized Algeria Market Diesel Concrete Mixer 200L

FOB Price

Negotiable / Unit

4 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Jiangsu, China
Brand Name	TOPALL	Model Number	RDCM200-7D
Motor Power	9	Mixing Power	9
Charging Capacity	320	Reclaiming capacity	200
Speed of Mixing Drum	13	Water Supply Mode	no
Working Cycle Period	22	Discharge Way	tiling
Outline Dimension	193023002950	After-sales Service Provided	Engineers available to service machinery overseas

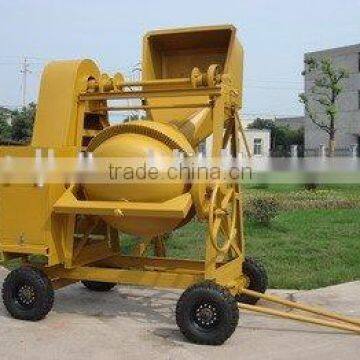

TDCM200 diesel concrete mixer

Tilting Drum Concrete Mixer

Single hinged cradle-type hopper system which reduces load on clutch,transmission and engine.

Diesel engine of 8.8 HP.

Four pneumatic wheels.

Cabin open from all three sides for ease in maintenance.Cabin provided with reinforced pressed ribs to prevent vibration.

Main Specifications

Model	TDCM200-7D
Power source	Diesel engine water cooled and radiator
Unmixed capacity	320L
Mixed capacity	200L
Mixing time	60s
Drum speed	20-22 r.p.m
Engine power transmission	Chain
Mechanical	Clutch drive
Loading hopper	Heavy duty loading hopper with wire rope,brake,clutch
Chassis	Heavy duty robust steel chassis
Dimension	1930×2300×2950mm
Weight	1250kg

Container Loading Plan

20 container can be loaded with	4 units
40GP container can be loaded with	8 units
