Quanchai QCH1130 Vertical Single Cylinder Diesel Engine

FOB Price

USD $1,500 - $3,000 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Usage	Other, Generator / Marine / Agricultual and engineering machinery
Fuel	Diesel	Stroke	4 Stroke
Cylinder	Single Cylinder	Cold Style	Other, Water-cooled
Start	Electric Start	Place of Origin	Anhui, China
Brand Name	Quanchai	Model Number	QCH1130
Dimension(LWH)	554525786	Weight	240KG
Certification	CE ISO	Warranty	1 Year
After-sales Service Provided	No overseas service provided

Quanchai QCH1130 Vertical Single Cylinder Diesel Engine

Advantage

Low fuel consumption

Low noise

Small vibration

Small volume

Application

Suitable for generating set, marine, agricultural machinery and engineering machinery etc.

This is instead of 2 cylinders, 3 cylinders and 4 cylinders generator use diesel engines.

The main technical advantage

Direct driving type: to solve the skid wear of the belt with up 20% on belt driving & small friction & long life & safe & secure.
Optimization of combustion system: we enlarge diameter of the in & ex vent, and design with corkscrew in air to make complete combustion and cut down 15% fuel consumption.
Balance system: to use double bearing and two shafts balance system, small vibration and stable running.
Forcing water cooled system: suitable for long time , wide scope, remote working.
Multipurpose design: the construction with front hydraulic pump, air pump , generator, pump fan etc is reasonable, it can help match all machines & equipment.

Technical parameters

Model	QCH1115	QCH1125	QCH1130
Type	Single cylinder, vertical, four stroke,direct injection
Cooling way	Forced water cooling
Cylinder bore (mm)	115	125	130
Piston stroke (mm)	120	120	120
The piston displace (L)	1.247	1.473	1.593
Rated output (kw)	11.6 / 13.9 / 17	13.5 / 16.2 /20.1	15.4 / 18.04 / 22.06
Rated speed (r/min)	1500 / 1800/ 2200	1500 / 1800/ 2200	1500 / 1800/ 2200
Fuel consumption (g/kw.h)	≤242.8	≤246.2	≤246.2
Overall dimension (LWH mm)	547525784	554525786	554525786
Net weight (kg)	200	240	245

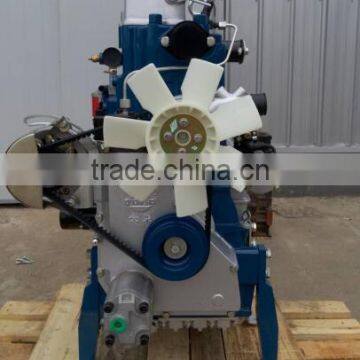

Picture:
