Home > Products > Marine Diesel Engine > High speed marine diesel engine set for open type lifeboat with gearbox ZX2105J 24-28HpHp

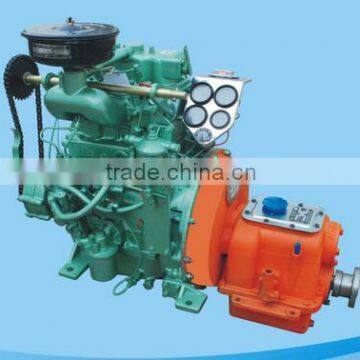

High speed marine diesel engine set for open type lifeboat with gearbox ZX2105J 24-28HpHp
- Shanghai or any other port in China
- T/T
You May Like
-
High speed marine diesel engine set for open type lifeboat ZX2105J-1 20-28Hp
-
High speed marine diesel engine set with gearbox for total enclosed lifeboat 4L88CB 88Hp
-
High speed marine diesel engine set with gearbox for total enclosed lifeboat 4L68CB 68Hp
-
High speed marine diesel engine set with gearbox for total enclosed lifeboat N485J-3 39hp
-
High speed marine diesel engine with gearbox for total enclosed lifeboat 26Hp
-
High speed marine diesel engine 4L68C/4L88C 68-88hp
Product Details
| Condition | New | Usage | Boat | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Multi-cylinder | Cold Style | Other, Water-cooled | |
| Start | Electric Start | Place of Origin | Jiangsu, China | |
| Brand Name | Siyang | Model Number | ZX2105J | |
| Dimension(L*W*H) | 988*663*790 | Weight | 280KG | |
| Certification | CCS/EC | Warranty | 1 Year | |
| After-sales Service Provided | Overseas service center available |
Product Description
High speed marine diesel engine set for open type lifeboat with gearbox ZX2105J 24-28HpHp
APPLICATIONS:
ZX2105J marine diesel engine set is composed of ZX2105C diesel engine and16A-3 reduction gearbox.The engine set has been found in accordance of "rules and regulations for the construction and classification of sea-going steel ships" CCS,IMO "Testing of lift-saving appliance" resolutions,MSC.81(70)and 1974 SOLAS and amendments.
The engine set has gotten the approval of CCS classification society and used mainly as the propulsion engine for lifeboat and other small boat.
Main technical Data
Model | ZX2105J | |||
Type | In line,water cooling,four stroke,nature inspiration | |||
Combustion type | Direct injecting | |||
Cylinder no. | 2 | |||
Bore×Stroke (mm) | 105×118 | |||
Total displacement (L) | 2.0435 | |||
Fire order | 1→2 | |||
Compression ratio | 17:1 | |||
Rated power/Speed (kW/rpm) | 17.6/1800 | 20.6/2000 | ||
Fuel consumption (g/ kW·h) | ≤255 | |||
Lubrication method | Force and splash combination | |||
Cooling circulation | Open type with force cooling | |||
Direction of rotation | Anticlockwise (view from flywheel) | |||
Starting method | Electrical motor and manual starting | |||
Gearbox | Model | 16A-3 | ||
Ratio | 2.5:1 | |||
Engine set output/Speed (kW/ rpm) | 16.9/720 | 19.8/800 | ||
Direction of output shaft | Clockwise (View from output end) | |||
Manipulation | Manual | |||
Overall dimension(L×W×H)(mm) | 988×663×800 | |||
Weight (kg) | 285 | |||
