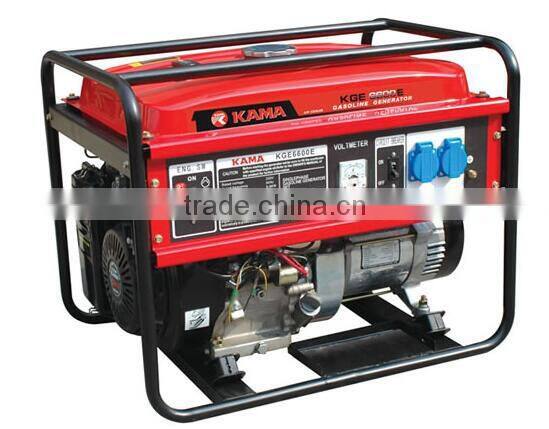

KAMA gasoline generator set Single phase 6.8Hp/7.48Hp 50Hz/60Hz for sale

Main Technical Data

Model KGE 6600E3

Rated frequency(Hz)		50 60
Rated voltage(V)		400/230 240/230
Rated current(A)		7.2 7.9
Rated output power(kW)		5.0 5.5
Rated rotation speed(rpm)		3000 3600
Power factor(cos)		0.8(Appliced to KVA)
Phase number		Three phase
Overall dimension(LWH)[mm(in)]		855×510×540(33.66×20.08×21.26)
Dry weight[kg(ibs.)]		90(198)
Structure mode		Open-frame type
Engine model		KG390
Engine type		Single cylinder,4-stroke, air-cooled OHV,gasoline engine
Rate power[kW(hp)/rpm]		7.7(10.47)/3600
Bore*stroke[mm(in)]		88×64(3.46×2.52)
Compression ratio		8.5:1
Total displacement[L(cu.in)]		389(23.74)
Fuel consumption at full load[g(ml)/kW.h]		<395(534)
Starting system		electric starter
Fuel		90#automotive unleaded gasoline
Cooling system		Forced air-cooled
Lube Capacity		1.1(0.26)
lube		SAE10W30(above CC grade)
Low oil pressure alert system		With
Spark plug		F6RTC
Noise level[dB(A)@7m]		70~74
Inition system		T.C.I
DC output		12V 8.3A
Rotation direction (view from flywheel)		Clockwise

Fuel capacity[L(gal.)]

25(5.5)
