Two Cylinders Electric Starting Marine Diesel Engine 28hp ZX2105J
- shanghai or other port of china
- T/T Credit Card
You May Like
-
High Speed Marine Diesel Engine SY4L68C/4L88C
-
100-130hp Marine Diesel Engine SY110C/SY144C
-
Yuchai YC6T Series of Marine Diesel Engine for Ship
-
Yuchai YC6TD Series of Marine Diesel Engine for Ship
-
Yuchai YC4FA Series Marine Diesel Engine (115hp-130hp)
-
Yuchai YC6J Series Marine Diesel Engine (85hp-165hp) for Bus
Product Details
| Condition | New | Usage | Boat | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Other, Multi-cylinder, 2 | Cold Style | Other, Water-cooled | |
| Start | Electric Start | Place of Origin | Jiangsu, China | |
| Model Number | ZX2105J | Dimension(L*W*H) | 988*663*790mm | |
| Weight | 285kg |
Product Description

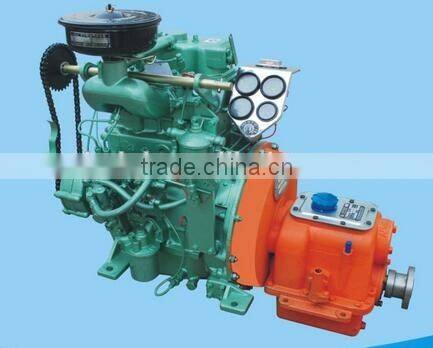

Two cylinders electric starting marine
diesel engine 28hp ZX2105J
ZX2105J marine diesel engine set is composed of ZX2105C diesel engine and16A-3 reduction gearbox.The engine set has been found in accordance of "rules and regulations for the construction and classification of sea-going steel ships" CCS,IMO "Testing of lift-saving appliance" resolutions,MSC.81(70)and 1974 SOLAS and amendments.
The engine set has gotten the approval of CCS classification society and used mainly as the propulsion engine for lifeboat and other small boat.
Model | ZX2105J | |||
Type | In line,water cooling,four stroke,nature inspiration | |||
Combustion type | Direct injecting | |||
Cylinder no. | 2 | |||
Bore×Stroke (mm) | 105×118 | |||
Total displacement (L) | 2.0435 | |||
Fire order | 1→2 | |||
Compression ratio | 17:1 | |||
Rated power/Speed (kW/rpm) | 17.6/1800 | 20.6/2000 | ||
Fuel consumption (g/ kW·h) | ≤255 | |||
Lubrication method | Force and splash combination | |||
Cooling circulation | Open type with force cooling | |||
Direction of rotation | Anticlockwise (view from flywheel) | |||
Starting method | Electrical motor and manual starting | |||
Gearbox | Model | 16A-3 | ||
Ratio | 2.5:1 | |||
Engine set output/Speed (kW/ rpm) | 16.9/720 | 19.8/800 | ||
Direction of output shaft | Clockwise (View from output end) | |||
Manipulation | Manual | |||

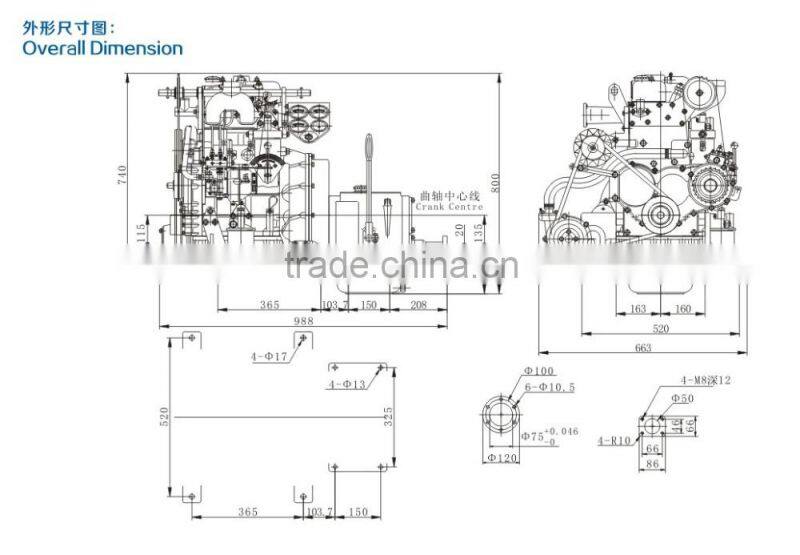

Overall dimension(L×W×H)(mm) | 988×663×800 | |||
Weight (kg) | 285 | |||
Zhenjiang Siyang Diesel Engine Manufacturing Co., Ltd is a national high technology enterprise belonged to Jiang Su University Of Science and Technology Assets Management Company. Depended on the science and technology predominance of the university, we specially design and manufacture the propulsion diesel engine set for high speed rescue boat, lifeboat, working boat, pleasure boat, coastal fish ship and yacht. The company is an international enterprise integrated of technical research, products manufacturing, sale and service, the business extends over 150 countries and areas worldwide.I
In 1972, We design and manufacture the first diesel engine set specially for lifeboat. After the development over forty years, we become the biggest diesel engine supplier in international lifesaving field. Our marine engine gets the first market share among lifeboat propulsion engine. At present, we have the main products as high speed marine diesel engine, water jet pump, marine diesel fire-fighting pump set, small power diesel-generator set and other marine products.
From 2009 we operate the company in according of ISO 9001-2008 Quality Management System and cover quality system to the whole process of manufacturing and sale. Our marine diesel engine sets have passed “NK”, “ABS”, “KR”, “RS”, “DNV”, “CCS” , “ZY”(China)and “EC” type approval certificates.
With a future view to marine high standard, Our high speed marine diesel engine designs with a modular idea and leads the top in marine engine fields. Through adopting advance technology, keeping super quality, designing with compact size, low fuel consumption and low after service cost, our products continuously meet all kinds of requirements from the customer.
