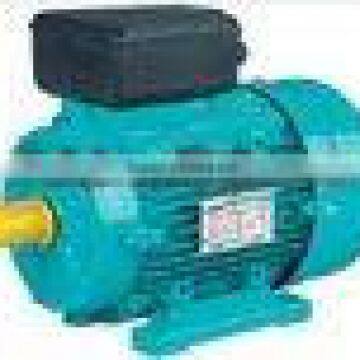

MY Series Single-phase Capacitor-start Asynchronous Electric Motor With Aluminium Housing

Specifications

                MY series single-phase capacitor-start asynchronous electric motor with aluminium housing

1. Model:MY series
2. Rated Voltage:220V
3. Rated frequency:50HZ, 60HZ
4. induction motor with competitive price

Advantages:

MY series aluminum housing single-phase capacitor asynchronous motors, with latest design in entirety, are made of selected quality materials and conform to the IEC standard. MY motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration and at the same time of light weight and simple construction. The multiple of starting torque is 0.3-1.7.

These series motors are suitable for the occasion where there requiremente of starting torque is low and long-term continuous working, such as home electric appliances, fans and recording maters. Etc.

Operating conditions:

1. Ambient temperature: -15°C<q<40°C

2.Altitude: Not exceeding 1000 meters

3.Rated voltage: 220V

4.Rated frequency: 50HZ/60HZ

5.Duty/Rating: Continuous ( SI )

6.Insulation class: Class B/F

7.Protection: IP54, IP55

8. Cooling method: IC0141

FUAN LIYUAN ELECTRICAL MACHINERY CO.LTD, professionally produces the motor, generator, water pump of different series, which have been sold to all the China and exported to more than 100 countries in America, Europe, Southeast Asia and so on, with the high quality and best prices, the products are warmly welcome by the clients from the home and abroad. The main products are as follows: Y, Y2, AEEF, Series three phase induction motor. YC, JY series heavy-duty single-phase induction motor. MY, MG, ML, MS series induction motor with the aluminum housings. YCG series induction motor with the steel-plate housings. ST, STC series generator , TZH series Compound Excitation generator. SFS, GFS series low noise diesel generating set. LY950...LY6500 series gasoline generator, and IDB, QB, JET... Series water pump .
