Product Details

Place of Origin	Fujian, China	Brand Name	mindong
Model Number	TFW2 series	Output Type	Other, brushless three phase
Speed	1500/1800RPM	Frequency	50/60HZ
Rated Power	15-250kw	Rated Voltage	400/230 or 380/220

Product Description

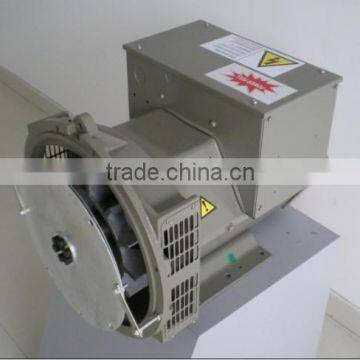

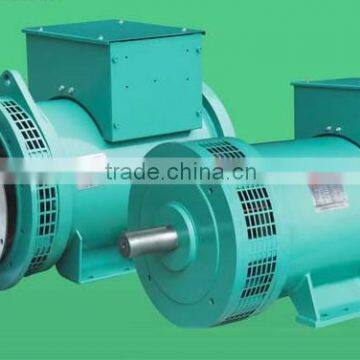

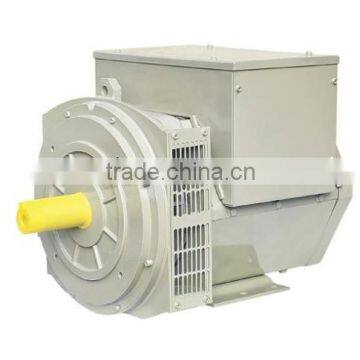

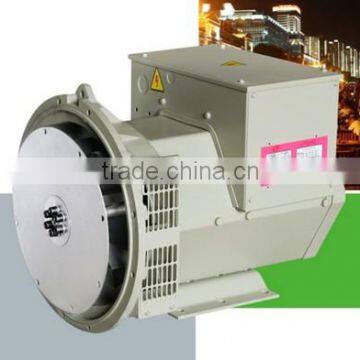

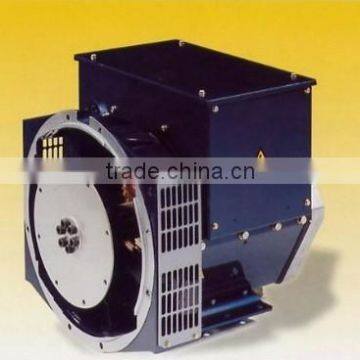

brushless generator three-phase synchronous TFW

The model TFW2 series steel casing three -phase A . C . brushless synchronous generator is new model generator . generator rotor adopts tinertoy with whole punching , brushless excitation , with A . V . R ., low Speed protect and shut down if overexictation , reduce EMI . TFW2 series leave out traditional ring and brush that it gets to be brushless excitation , stator and exciter fixing in Same shaft . avoid troubles due to poor contact after the brushes and slip rings are wear - out improved reliability of the generator . The generators are to be used in town . countryside , worksites , mountain and pasture as electric power source for lighting purpose , it can also be used as reserved power source for emergent case using .

The armature winding of TFW2 series generators is connection in star with neutral - point , three phase four wire system . It rated line voltage is 400V , phase voltage is 230V , 50Hz , power factor is 1.0 – 1.8 ( lag ) .

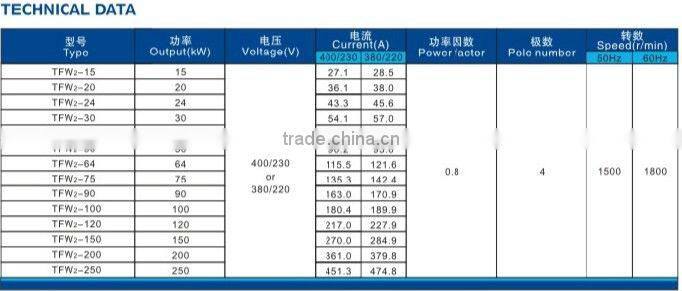

The main technical indicators : a ) stable state voltage deviation ≤1 % ; b ) waveform distortion rate ≤5 % ; c ) INS . CL . H ; d )Ip21.
