Home > Products > Advertising Machines > 2015 TH1300 Kuco 3mm Cutting Plotter with Optical Eye

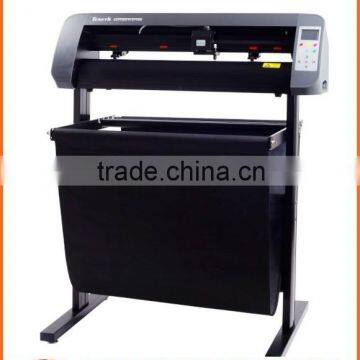

2015 TH1300 Kuco 3mm Cutting Plotter with Optical Eye

FOB Price

USD $400 - $600 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Die-cutting Machine
Computerized	Yes	Place of Origin	Guangdong, China
Brand Name	TOYO	Model Number	TH 1300
Voltage	220V	Dimension(LWH)	1480265265mm
Weight	40kg	Certification	CE
Warranty	1	After-sales Service Provided	Engineers available to service machinery overseas

Specification

Cutting plotter type	TH740	Kuco TH1300
leg		Vertical feeding horse
mainboard	32 bit CPU, 4 MB CACHE memory at a high speed
Control panel	Large touch screen and 11 key light touch membrane keyboard
drive	Dominant twin shaft torque motor, subdivide microstep driver
Feed paper mathod	Drum high-precision steel shaft
Location mode	Margin system, setting arbitrary origin
Width of Platform	740mm	1300mm
biggest cutting width	635mm	1205mm
Cutting maximum speed	500mm/s
Max cutter length	50000mm

Cutter pressure	0-1000g(Digital Frequency Control )
Mechanical Precision	0.05mm
Accuracy of	<±0.1mm
Type of cutting tools	MIMAKI import

Drawing command	DM-PL/HP-GL (automatic identification)
port	Stander RS232(string)/USB2.0/SD card
Power supply	AC110V /220V±10%,50Hz
comsupction	<100W	<120W
Operating enviroment	tempreture:+5-+35,related humidity30%-70%
Package size	1045330335	1582330440
weight	18KG	35KG

Features:

1. More Interface: USB, SD card, serial Port,(WIFI Blue tooth Optional)

2.CE Certification,ISO9001 Quality Certification.

3.High-precision Steel Axes: Guarantee the tolerances

4. 32-bit ARM7 CUP,4MB, High-speed CACHE memory.:can repeat the words or images for 0-500 times(Repeat Function)

5.Noise less than 60DB(low Noise, smooth cutting)

6.Our control panel: 11 membrane and 3.0 LCD touching screen,and have 5 kinds of backlight for select.

7.Supper cutting pressure: 0-1000G,can cut supper thickness materials,like reflective film

8. our machine can cut 2mm words and have the function of contour cut

9. Support Mac OS/Windows Windows XP/Vista.

10. Support Artcut,Flexi Sign 10.0,signcut,CAD,CDR,Adobe Illustrator etc

11.Warranty ---Gurrantee the mainboard for1 year and change a new one if mainboard has any

problems within 1 year.

Packaging & Shipping

It is packed in the Standard Carton, put together with install cables, a set of software, cutting blades.
