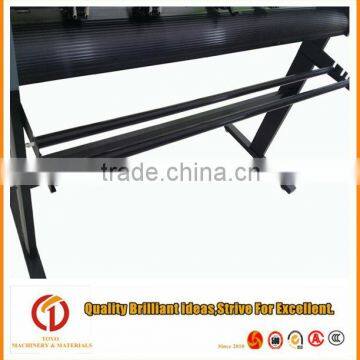

2015 Kuco plotter printing and cutting machine

FOB Price

US$ 250 - 500 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Creative P-Cut
Model Number	PC900

Feature:

¤ Advanced ARM control system, leading technology trends.

¤ USB interface, fit modern communication standards.

¤ Special software interface, can output directly from CorelDraw, ARTCUT software.

¤ Micro- step calculation method, cutting excellent, faster.

¤ The unique laser point, contour cutting function.

Specification:

Model	KC630		KC900	KC1200
Media way	M bracket		Floor stands
Main board	32-bit ARM7 CPU , I Mb , High-speed CACHE memory
Control Panel	Over-head,2x8LiquidCrysaal Display,13-button touch thin-film keyboard
Drive	PWM ,micro-step driver
Max paper feed width	730mm		1000mm	1300mm
Max cutting width	635mm		905mm	1205mm
Max cutting speed	500mm/s
Max cutting length	20000mm
Max cutting thickness	1mm
Cutting pressure	0-500g(digital adjustment)
Mechanical precision	0.05mm
Repeatable precision	<±0.1mm
Blade	Carbide blade
Pen	All types Diameter 11.4mm plotter pen
Plotting instruction	Compatible DM/PL,HP/GL
Interface	USB2.0
Power source	AC110V/220V±10%,50Hz
Power consumption	<100VA		<120VA
Working environment	Temperature:+5°C~+45°C,humidity 30%~70%
External size	1045x330x440mm	1290x330x440mm			1590x330x440mm
Gross weight	25kg	36kg			40kg

Attention : Subject change without notice.

Guarantee period:Hardware 1 year,Software life time service.

Method of payment:T/T WestUnion HSBC (HK) MoneyGram Paypel

Packaging:Carton(below 100kg) Wooden(above 100kg)

Transport:Huangpu Port,Guangzhou,China.
