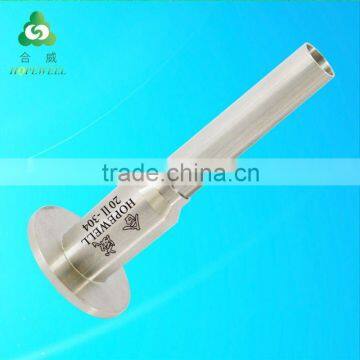

304 316 pipe flange coupling
- Guangzhou
- T/T
You May Like
Product Details
Material | Stainless Steel | Technics | Other, weld, punch | |
Type | Flange | Place of Origin | Guangdong, China | |
Model Number | HW30371 to HW30376 | Brand Name | hopewell | |
Connection | Other, press fitting | Shape | Equal | |
Head Code | Other, circle |
Product Description
Stainless steel press fitting and pipe system
Water working pressure high to 1.6MPa (232psi);
Stainless Steel Press Fitting Pipe System
The norminal diameters are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including GB 1 and GB 2.
GB 1 series is same size as EN10312, out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB 2 series is same size as JIS G 3448, out diameters are: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm.
Which sizes is suitable for your market?
GB Ⅰ(EN10312) | GB Ⅱ(JIS G3448) | ||||||
Item No. | Nominal Dia. | Diameter | Thick | Item No. | Nominal Dia. | Diameter | Thick |
HW015B | DN15 | 18 | 1 | HW015A | DN15 | 15.88 | 0.8 |
HW020B | DN20 | 22 | 1.2 | HW020A | DN20 | 22.22 | 1 |
HW025B | DN25 | 28 | 1.2 | HW025A | DN25 | 28.58 | 1 |
HW032B | DN32 | 35 | 1.5 | HW032A | DN32 | 34 | 1.2 |
HW040B | DN40 | 42 | 1.5 | HW040A | DN40 | 42.7 | 1.2 |
HW050B | DN50 | 54 | 1.5 | HW050A | DN50 | 48.6 | 1.2 |
HW065B | DN65 | 76.1 | 2 | HW065B | DN65 | 76.1 | 2 |
HW080B | DN80 | 88.9 | 2 | HW080B | DN80 | 88.9 | 2 |
HW100B | DN100 | 108 | 2 | HW100B | DN100 | 108 | 2 |
Note | Standard pipe length is 6m. Other lengths and specifications can be customized according to correspondents' needs. |
Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116
Pipe standard: GB/T 19228.2-2003, BS EN 10312 and JIS G3448
Sealing ring standard: GBT 19228.3-2003, EN681-1:1998
Technical information:
-- Material: Stainless steel 304 and 316 available.
-- Max working pressure 1.6MPa (equal to 232 psi),
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: cold water, hot water, compressed air, gas, oil etc
Press fitting range:
Coupling -- Equal coupling, Reducing coupling, Adjustable coupling, coupling with screw;
Elbow -- equal elbow, reducing elbow, elbow with plain end, elbow with screw;
Tee -- equal tee, reducing tee, tee with screw;
Other fittings -- Pipe cap, pipe bridge and Flange.
For press fittings packing: we pack press fittings in polybag to prevent surface scratch, and then pack them inside brown export cartons.
For pipe packing: we pack the stainless steel pipes inside polybag, so that it can prevent surface scratch, and keep dirts away from the inside of the pipes.
If you have special requirement on packing, please tell us.
* Free sample: we can provide a few free sample for evaluation.
* After-sales service: we provide after-sales technical support for clients.
* Strict Quality control: we have 100% inspection before delivery to ensure every pieces are in good quality.
Below you can see pictures of our inspection line:
We are an ISO certified professional manufaturer supplying stainless steel press fittings and pipes.
ISO certification:
We have getten Singapore, HongKong and Brunei approval, see as below:
Production line view:
Please contact us for free sample and pricelist.
