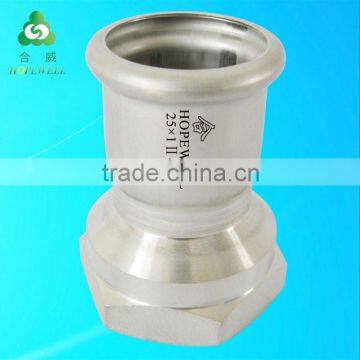

Stainless steel Coupling (press fitting)
US$ 0.1 - 5
/ Piece
1 Piece(Min. Order)
- Guangzhou
- T/T
You May Like
Product Details
| Material | Stainless Steel | Technics | Other, welded, punch | |
| Type | Coupling | Place of Origin | Guangdong, China | |
| Model Number | HW12161- HW12170 | Brand Name | Hopewell | |
| Connection | Other, press fitting | Shape | Equal | |
| Head Code | Hexagon |
Product Description
Stainless steel pipe and press fitting(Various kinds of pipe fittings)
Sizes range:
The norminal diameters are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including GB 1 and GB 2.
GB 1 series is same size as DVGW W534:1995, out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB 2 series is same size as JIS G 3448-1997, out diameters are: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm.
Which sizes is suitable for your market? Do you prefer pipe length of 5.8m or 6m per piece?
The norminal diameters are: DN15, 20, 25, 32, 40, 50, 65, 80 and DN100, including GB 1 and GB 2.
GB 1 series is same size as DVGW W534:1995, out diameters are: 18, 22, 28, 35, 42, 54, 76.1, 88.9, 108mm.
GB 2 series is same size as JIS G 3448-1997, out diameters are: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm.
Which sizes is suitable for your market? Do you prefer pipe length of 5.8m or 6m per piece?
| GB Ⅰ(EN10312, DVGW W534) | GB Ⅱ(JIS G3448-1997) | ||||||||
| Item No. | Nominal Dia. | Diameter | Thick | PN(Mpa) | Item No. | Nominal Dia. | Diameter | Thick | PN(Mpa) |
| HW015B | DN15 | 18 | 1 | ≥1.6 | HW015A | DN15 | 15.88 | 0.8 | ≥1.6 |
| HW020B | DN20 | 22 | 1.2 | ≥1.6 | HW020A | DN20 | 22.22 | 1 | ≥1.6 |
| HW025B | DN25 | 28 | 1.2 | ≥1.6 | HW025A | DN25 | 28.58 | 1 | ≥1.6 |
| HW032B | DN32 | 35 | 1.5 | ≥1.6 | HW032A | DN32 | 34 | 1.2 | ≥1.6 |
| HW040B | DN40 | 42 | 1.5 | ≥1.6 | HW040A | DN40 | 42.7 | 1.2 | ≥1.6 |
| HW050B | DN50 | 54 | 1.5 | ≥1.6 | HW050A | DN50 | 48.6 | 1.2 | ≥1.6 |
| HW065B | DN65 | 76.1 | 2 | ≥1.6 | HW065B | DN65 | 76.1 | 2 | ≥1.6 |
| HW080B | DN80 | 88.9 | 2 | ≥1.6 | HW080B | DN80 | 88.9 | 2 | ≥1.6 |
| HW100B | DN100 | 108 | 2 | ≥1.6 | HW100B | DN100 | 108 | 2 | ≥1.6 |
| Note | Standard pipe length is 5.8m and 6m. Other lengths and specifications can be customized according to correspondents' needs. | ||||||||
Water working pressure high to1.6MPa (232psi);
Only need 8 second to finish install a connector, very easy install;
Perfect choice to replace traditional pipe fitting.
Press fitting range: Coupling -- Equal coupling, Reducing coupling, Adjustable coupling, coupling with screw; Elbow -- equal elbow, reducing elbow, elbow with plain end, elbow with screw; Tee -- equal tee, reducing tee, tee with screw; Other fittings -- Pipe cap, pipe bridge and Flange.
Stainless Steel Press Fit Pipe System
Hopewell press fitting system joins pipe without welding or bolting, can be widely used in cold and hot water supply, heating supply, fire protection, medicinal gas, industrial petroleum pipeline system etc. It has already replaced welding fittings in most Europe countries, Asia countries and some other countries.
Standard:
Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116:2001
Pipe standard: GB/T 19228.2-2003, DIN EN 10312:1999 and JIS G3448-1997
Sealing ring standard: GBT 19228.3-2003, EN681-1:1998
Press fitting standard: GB/T 19228.1-2003, DVGW W534-1995 and JWWA G116:2001
Pipe standard: GB/T 19228.2-2003, DIN EN 10312:1999 and JIS G3448-1997
Sealing ring standard: GBT 19228.3-2003, EN681-1:1998
Technical information:
-- Material: Stainless steel 304 and 316 available.
-- Max working pressure 1.6MPa (equal to 232 psi),
testing water pressure: 2.5MPa for JIS sizes (equal to 362.5psi), and 5MPa for EN10312 sizes.
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: cold water, hot water, compressed air, gas, oil etc
-- Working temperature from -20 to 110 degree centigrade (with Chlorinated butyl rubber O ring),
-- Suit medium: cold water, hot water, compressed air, gas, oil etc
Sealing ring material:
Option 1. CIIR(Chlorinated butyl rubber): Sanitary for human consumption, not oil-resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air and compressed gas.
Option 2. EPDM(Ethylene-Propylene-Diene Monomer) : Sanitary for human consumer, not oil-resistant. Suitable for drinking water, tap water, hot and cold water, sanitary air and compressed gas.
Option 3: Nitrile rubber: oil proof, but not sanitary but poisonous. It is suitable for fuel gas, fuel oil and oil. But NEVER use it for human consumption or animal consumption.
Where do you want to use the press fit pipeline system? Which O-ring Material do you prefer?
Advantages of Press Fitting Pipeline:
(1). Corrosion-resistant:
(2). Long Service Life:
(3). Easy Installation:
(4). Load High Working Pressure(1.6MPa / 232PSI):
(5). Shock Resistant:
(6). Low Flow Resistance:
(7). Environment-friendly Material(No Pollution):
(8). Embedded Installation:
(9). High Tensile Strength:
(10). Low Comprehensive Cost:
* Cut-open View of the Compressed Part:
* Installation Case:
* Production View:
* Press Fitting Packing:
* Container Loaded:
Please contact us for free sample and pricelist.
