Home > Products > Thermostat > Gas BBQ Oven Thermometer/thermostat Gas Control Valve
Gas BBQ Oven Thermometer/thermostat Gas Control Valve
- Ningbo
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Safety | |
| Pressure | Medium Pressure | Power | Other, Thermal expansion | |
| Material | Other, Aluminum alloy | Temperature of Media | Medium Temperature | |
| Media | Gas | Port Size | - - | |
| Place of Origin | China | Model Number | AH02 | |
| Brand Name | JiaLi | Application | Other, Heaters, water heaters, fireplace, Fried furnace |
Product Description
Specifications
Gas BBQ oven thermometer/thermostat gas control valve1.High quality.
2. Different styles.
3.Best delivery date.
4.Customiza
PRODUCT DESCRIPTION
Single knob control (turn off the heat, often open flame, temperature setting),with flame-out protection device ,restart automatically locked .
The pressure of the often open flame traffic and the main airway can be adjust .
There are two groups Air inlet and air outlet in the Side and bottom,to facilitate rapid installation in a reliable way.
Scope of Application
Parameter Specification Gas BBQ oven thermometer/thermostat gas control valve
Operating temperature | 13℃—38℃ | Customization |
Intake way | 1/2---14NPT . Quick connector | Customization |
Outlet way | M16×1.5 , 3/8—19NPT | Customization |
Material | Aluminum alloy |
|
Maximum intake pressure | 50mbar |
|
Exhaust pressure | 3—18mbar |
|
Voltage regulator | Without |
|
Solenoid valve drop-away current and absorption current | 80—200mA | Customization |
Sealed way | Rubber seal |
|
Thermocouple interface | M8×1.0 , M9×1.0 | Customization |
SUITABLE GAS | Liquefied petroleum gas, natural gas |
|
Drive mode | Thermal expansion |
|
Ambient Temp | 0℃—80℃ |
|

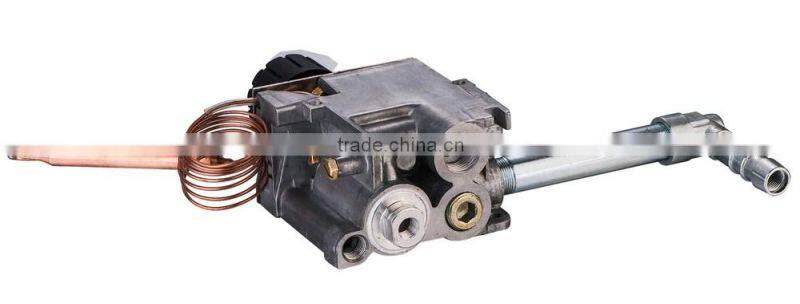

The picture of the Gas BBQ oven thermometer/thermostat gas control valve

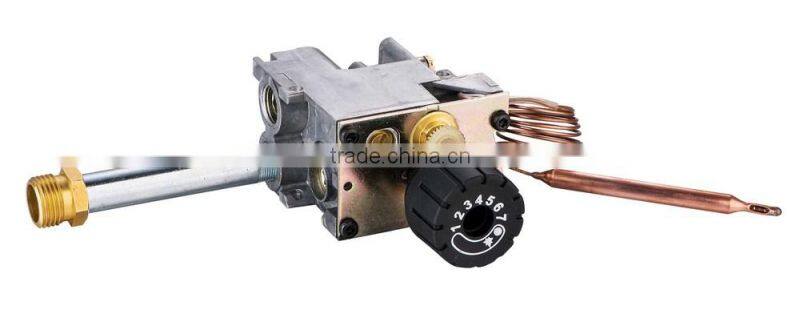

Other styles of the Gas BBQ oven thermometer/thermostat gas control valve
PACKAGING AND SGIPPING
Gas BBQ oven thermometer/thermostat gas control valve
Usually carton packaging, or PVC bag with a label.
Specifically according to the customer to your needs,
you can use any packaging situation.
| PCS/BAG | 25pcs/bag |
| PCS/CTNS | 500pcs/ctns |
| CTN Size | 400*250*150mm |
| Shipping | By courier or by sea |
| Delivery time | 5-30 day |
Ningbo JiaLi Gas Appliance & Science and Technology Co., Ltd. | |
In 1998 | The company was founded. Specializes in manufacturing of gas appliance. Such as: Thermocouple,ODS,Thermostat,Magnet valve etc. |
In 2002 | we have a number of outstanding engineers and perfect laboratory which make sure that we can prodcue great products. |
In 2009 | Company through the ISO9001 Our thermocouple passed the CSA. |
In 2011 | ERP system & ISO (matching the ERP) began to be applied. fully guarantee products' quanlity and efficient internal management. |
In 2012 | ODS Pilot burner has 5 patents, and passed the CSA by one-time. The shut-off point of our ODS products can be controlled within 0.3% (CO2, for example 0.8~1.1%). |
In 2014 | We moved into the new factory, Have more advanced equipments, technology and professional team. |
Our customers all over the world. High quality products and good services are make us be recognized by the customers Our belief: let every family gas equipment more safety and environmently | |
Our Campany
OUR SERVICES
Gas BBQ oven thermometer/thermostat gas control valve
1.Inquiry response:Your inquires will be replied in 24hours
2.Samples support:Two free samples are avaliable in 2-5days.
3.Delivery time:Your shipment will be loaded in 15-25days,depeds on quantity.
RELATED PRODUCTS
No.1 Thermocouple head,Connector,Fixing parts, Temperature controller
No.2 Pilot bunner, ODS, Ignitor, Ignitor wire, Thermostat vale & Accessories,
Thermocouple, ODS, Solenoid Valve, Thermostat |
Our campany has passed the ISO9001
CE, CSA
And have six patents of our products
More details,Pls contact Elian ! Thanks.
