3.2inch 240*320 ILI9341V Portrait Tft Lcd Module With Mcu Interface
Negotiable
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
3.5inch 320*480 HX8357D RGB/SPI IPS Lcd Panel With Resistive Touch Screen
-
3.0inch 240*400 ILI9327 MCU/RGB/SPI Tft Lcd Touch Screen Module With RTP
-
2.8inch 240*320 ILI9341 Portrait Tft Lcd Screen With MCU Interface
-
4.0inch 480*800 Support RGB/MCU/SPI Muti Interface IPS Tft Lcd Display
-
3.2inch 240*320 Portrait Lcd Screen Display With ILI9341V
-
5inch 800*480 Tft Lcd Screen Module With Lvds Interface
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW032N-SV6 | Type | Other, TFT, TFT |
Product Description
3.2inch TFT LCD module
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 3.2inch tft lcd module |
| 2 | Model number | SW032N-SV6 |
| 3 | Size | 3.2INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | 9:00 |
| 6 | Display scale | 4:3 |
| 7 | Display mode | Transmissive |
| 8 | Resolution | 240*320 |
| 9 | Piexel pitch | / |
| 10 | Dimension | 55.04*77.7*2.45mm |
| 11 | Active area | 47.88*63.84mm |
| 12 | Color | 262K |
| 13 | Color arragement | RGB |
| 14 | Interface | MCU |
| 17 | Response time | 20ms |
| 18 | Contrast ratio | 800:1 |
| 19 | Brightness | 250cd/m2 |
| 20 | VDD | 2.8V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 3.0V |
| 25 | Current for LED | 90mA |
| 26 | Consumption | / |
| 27 | Module weight | / |
| 28 | Drive IC | ILI9341V |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Hard coationg |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions of 3.2inch tft lcd module | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP is available |
Part 4:Lead time for 3.2inch tft lcd module | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

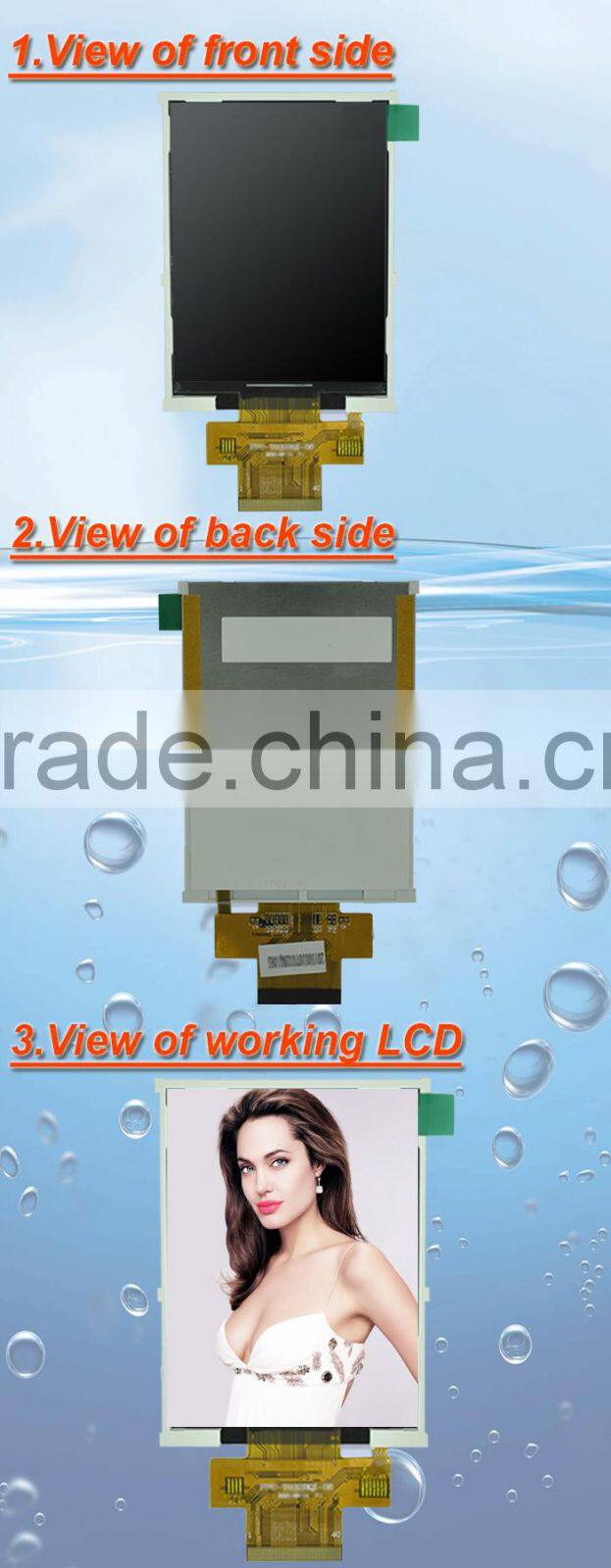

3.2inch tft lcd module PICS

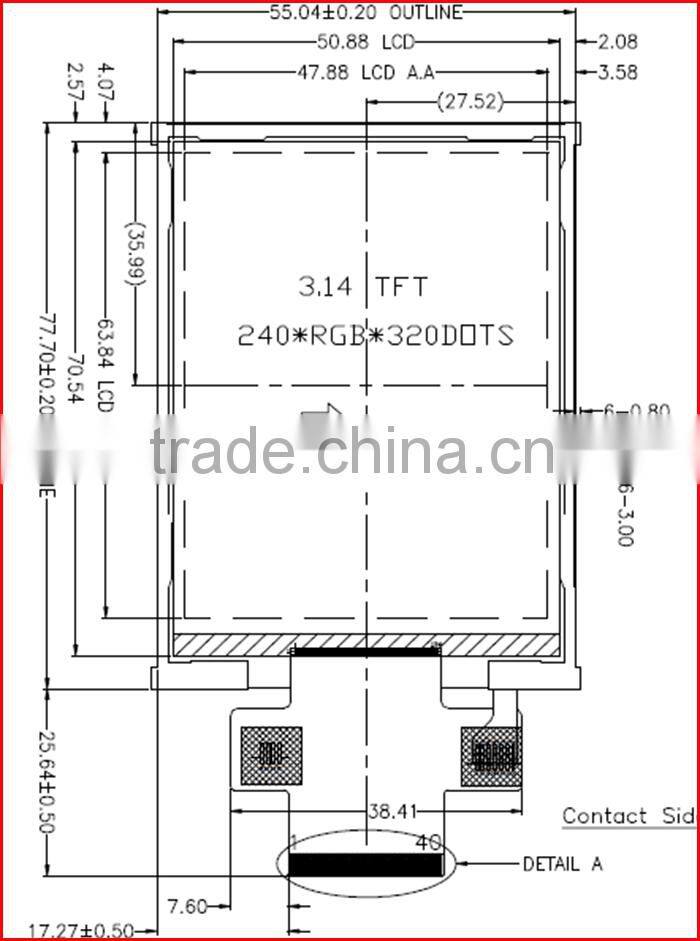

3.2inch tft lcd module structure
3.2inch tft lcd module package
Packaging & Shipping
Our Services
If you are interersted in te 3.2inch tft lcd module,pls contact us for more information
