10.1inch 1000nits Lvds Intenrface 1280*800 Sunlight Readable Tft Lcd Display
US$ 0.1 - 99
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
2.8inch 240*320 ILI9341 700cd/m2 Sunlight Readable Lcd Module Panel
-
2.4inch 240*320 ILI9341 MCU Interface Tft Lcd Display Screen With 4 Wire Resistive Touch Screen
-
2.4inch 240*320 ILI9341 Controller IC MCU Interface Tft Lcd Display Module
-
4.3inch 480*272 Lvds Interface Lcd Module
-
4.3inch 480*272 Lvds Interface Touch Screen Panel With CTP
-
4.3inch 480*272 Lvds Interface Touch Screen Lcd
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW101H-SV1280800 | Type | Other, TFT, TFT |
Product Description
10.1inch sunlight readable tft lcd display
LCD specification
| Part 1:LCD parameters | ||
| 1 | Product name | 10.1inch sunlight readable tft lcd display |
| 2 | Model number | SW101H-SV1280800 |
| 3 | Size | 10.1INCH |
| 4 | Type | TFT |
| 5 | Viewing angle | IPS |
| 6 | Display scale | 16:10 |
| 7 | Display mode | Normally white, Transmissive |
| 8 | Resolution | 1280*800 |
| 9 | Piexel pitch | 0.0565(W)*0.1695(H) |
| 10 | Dimension | 222.5*152.5*5.5MM |
| 11 | Active area | 216.96*135.6 |
| 12 | Color | 16.7M |
| 13 | Color arragement | RGB |
| 14 | Interface | LVDS |
| 17 | Response time | 35ms |
| 18 | Contrast ratio | 800:1 |
| 19 | Brightness | 1000cd/m2 |
| 20 | VDD | 3V |
| 21 | Backlight | LED |
| 22 | Backlight color | White |
| 23 | LED lifetime | 20000hours |
| 24 | Voltage for LED | 9V |
| 25 | Current for LED | 480mA |
| 26 | Consumption | 4.32W |
| 27 | Module weight | / |
| 28 | Drive IC | / |
| 29 | Interface connect type | connector type |
| 30 | Surface tratement | Anti glare |
| 31 | Pin number | 40PINS |
| 32 | Warranty | 12 months |
| 33 | Packing material | Box |
| 34 | Shipment | Express*Air*Sea |
| Part 2:Operation Speficifactions | ||
| 1 | Operature Temperature | -20----70℃ degrees |
| 2 | Storage Temperature | -30----80℃ degrees |
| Part 3:Touch panel | ||
| 1 | Touch | RTP ,CTP is available,depends on customer need |
| Part 4:Lead time | ||
| 1 | Sample | 2 working days |
| 2 | Mass production | 2-4 weeks |
.

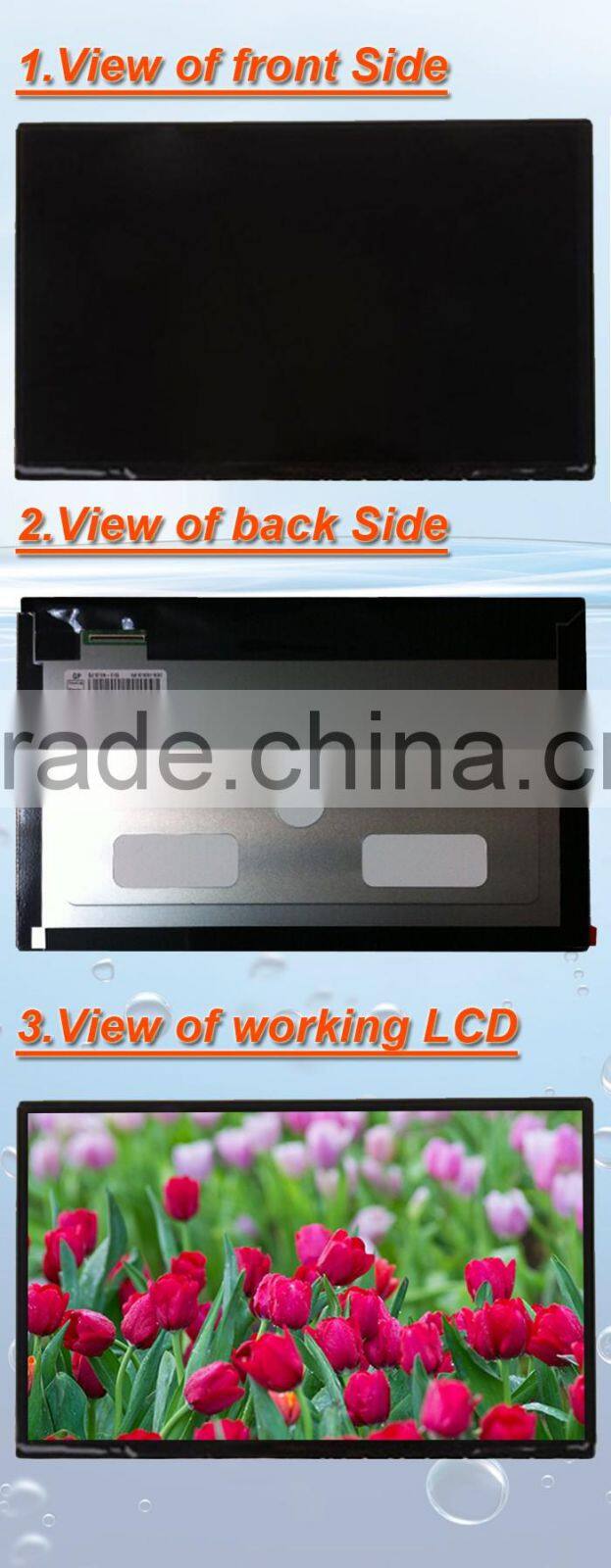

LCD PICS
LCD structure
