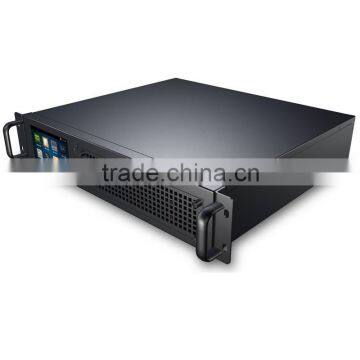

NAR5008/NAR5016/NAR5024/NAR5032 Standalone Telephone Recorder Specification

NAR5000Features

1. System boots in 20 sec
2. Support high capacity SATA HDD 500G/1T/2T
3. Optional SD card model, max 64GB
4. Expandable from 8 to 16, 24 and 32 channels
5. Touch screen operation
6. Optional model without touch screen (SD/HDD)
7. Remote control by network
8. Instant playback through speNAR5000er
9. Full embedded device, no PC required
10. Lower power dissipation supports 7x24x365 running

NAR4000 HDD Recording Hour /SD Recording Hour

1.     500GB             36,000    Hour
2.    1000GB(1T)        72000     Hour
3.     2000GB(2T)        144000    Hour

Program System Requirement

1.   Windows7/Vista/XP/2000

2.    Pentium 400MHZ CPU

3.    256MB RAM

4.    1GB HDD

5.    Network RJ45 port

6.    Audio output (Play & Monitor)

PABX SMDR

There are 2 methods to gain the SMDR data from PABX

1.    RS232

2.    TCP/IP

User needs to analyze original data of PABX channel number, extension number from followed main parameters and input them to program setting.

Outbound call

1.    Call symbol: The mark to distinguish the call type (Outbound/Inbound call) in character string. Most PABX show “TO “ to indicate outbound call.

2.    Extension position: User have to count the extension number starting position in character strings.

3.    Extension number length: Extension number length.

4.    PABX channel number position: User has to count the channel number starting position in character strings.

5.    Channel number length: PABX channel number length.

From followed example, user can read out outbound call information

1. Call symbol: $TO
2. Extension position: 14^th
3. Extension number length: 2.
4. PABX channel position: 24^th
5. Channel number length: 2

PABX SMDR Protocol

Please refer PABX user’s manual about serial communication configuration for windows HyperTerminal operation

Gain SMDR data through TCP/IP

Most PABX support TCP/IP SMDR. Please refer PABX user’s manual about SMDR output parameter.

1. 1.     PABX IP address:  The IP address assigned to PABX
2. 2.     Connect Port: Port for PC connection (Provided by PABX)
3. 3.     Output Port: Normally it is same as connection port. Otherwise, user can set separately.
4. 4.     User Name: User name to login PABX.
5. 5.     Password: Password to login PABX
